Netwerkswitch MERCUSYS MS110GMP — 10-poorts Gigabit (10/100/1000) met PoE, 54 V ingang, 20 Gbit/s capaciteit

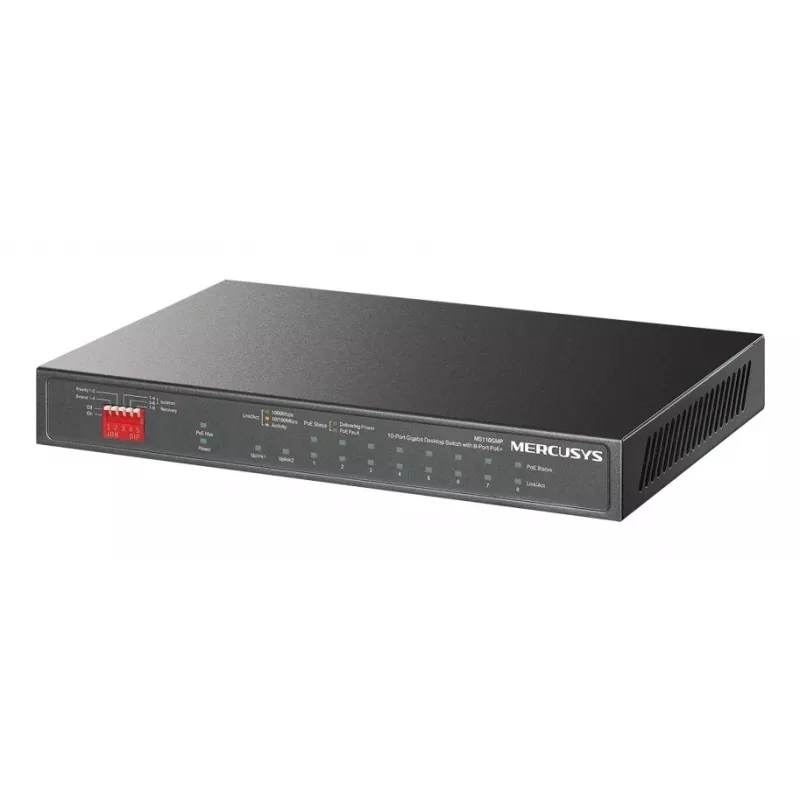

The Mercusys MS110GMP is a 10-port Gigabit desktop switch with eight PoE+ ports and two Gigabit uplink ports. It combines data and power delivery over the same cable, supports IEEE 802.3af/at standards, and provides a total PoE power budget of 111 W. The switch is fanless, wall-mountable, and offers a compact solution for basic network connectivity and powered devices such as IP cameras or access points.

Advantages

The switch delivers Gigabit connectivity on all 10 RJ-45 ports with a switching capacity of 20 Gbit/s and a MAC address table of 4000 entries. Eight PoE+ ports can supply up to 30 W per port (within the total 111 W budget), and an Extend Mode enables data and power transmission up to 250 m. Management is available via a web interface while features like Priority Mode, Isolation Mode and PoE Auto Recovery improve performance, security and reliability. The fanless design ensures silent operation and lower power consumption.

Suitable for

• Office and small business surveillance systems with PoE cameras
• Dormitory or campus networks requiring powered access points
• Small wired networks needing simple Gigabit switching with PoE

Key specifications

• 10 Gigabit RJ-45 ports (8 PoE+ ports, 2 uplink ports)
• PoE standard: IEEE 802.3af / IEEE 802.3at (PoE+)
• Total PoE power budget: 111 W
• Maximum PoE per port: up to 30 W
• Extend Mode range: up to 250 m
• Switching capacity: 20 Gbit/s
• MAC address table size: 4000 entries
• DC input voltage: 54 V
• Fanless, desktop and wall-mountable design

How to use

Place the MS110GMP on a desktop or mount it to a wall using the included mounting points. Connect network devices to any RJ-45 port; use the two uplink ports for upstream connections to a router or core switch. Connect PoE-compatible devices to the PoE+ ports to provide both data and power over a single Ethernet cable. Access the web-based interface from a connected PC to view status and adjust available settings such as Priority Mode or Isolation Mode if needed. No initial configuration is required for basic plug-and-play operation.

Recommendations

To maximise uptime for sensitive devices such as IP cameras or access points, connect the most critical devices to ports 1–2 to take advantage of Priority Mode, and use PoE Auto Recovery to auto-reboot any unresponsive PoE-powered equipment. When using Extend Mode, verify cable quality and keep distances within the specified 250 m limit.
