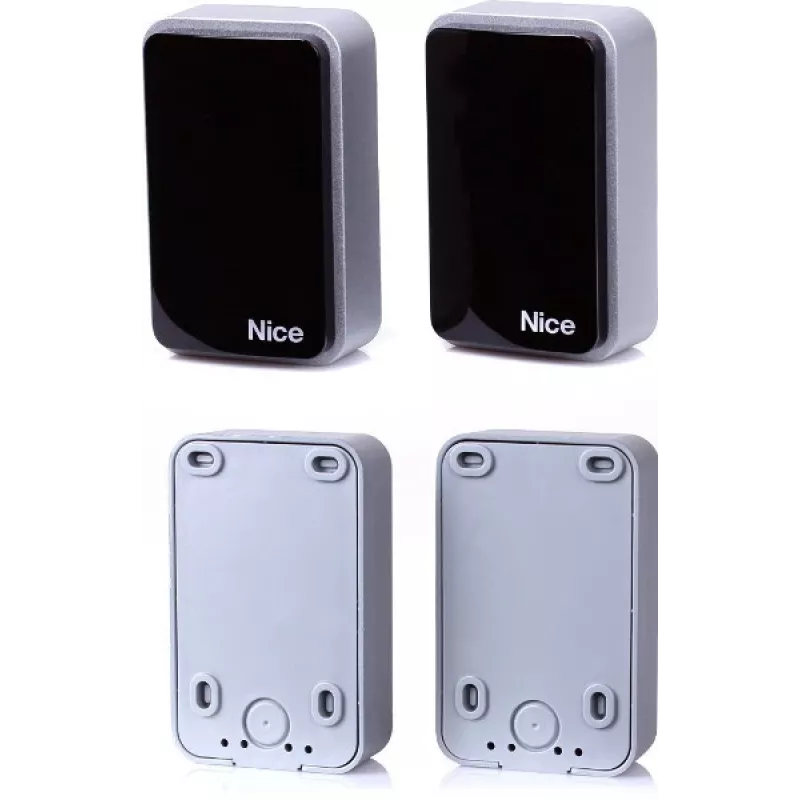

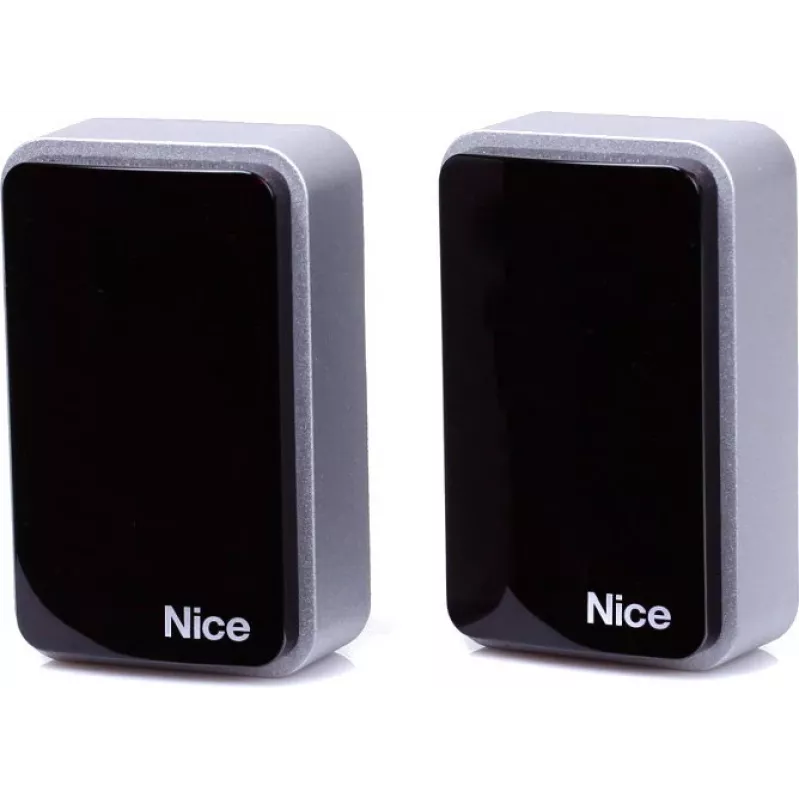

NICE EPM ERA M lichtsluizen (zender + ontvanger) - gemoduleerd infrarood, 15m bereik, IP44

The NICE EPM ERA M photocells are a high-performance pair of modulated infrared safety beams designed for gate and door automation systems. This set includes both transmitter and receiver, providing reliable detection up to 15 meters. Ideal for residential and light commercial applications, they ensure safe operation by detecting obstacles in the path of moving gates or doors.

Advantages

Modulated infrared technology minimizes false triggers from ambient light. The anti-glare synchronization circuit allows multiple pairs to be installed without interference. IP44 protection ensures durability in outdoor environments. Easy surface mounting with compact dimensions (80x50x29mm per unit).

Suitable for

• Automatic sliding, swing, and overhead gates
• Industrial doors and barriers
• Access control systems requiring safety beams

Key specifications

• Detection Technology: Modulated Infrared
• Maximum Range: 15 m
• Power Supply: 12-24 Vac/Vdc
• Output Type: Relay (NO/NC)
• Protection Rating: IP44
• Operating Temperature: -20°C to +55°C
• Mounting Type: Surface Mount
• Synchronization: Yes (Anti-glare circuit)
• Transmitter Current Consumption: 20 mA
• Receiver Current Consumption: 25 mA
• Housing Material: ABS
• Beam Type: Fixed, focused
• Wiring (Transmitter): 2-wire
• Wiring (Receiver): 4-wire
• Response Time: < 10 ms
• Safety Standard: EN 12453 Type D
• Dimensions (per unit): 80 x 50 x 29 mm (H x W x D)
• Compatibility: NICE control units and universal gate automation systems

Recommendations

For optimal performance, ensure proper alignment of the transmitter and receiver. Use with compatible NICE control panels or universal gate controllers. Regular cleaning of the lenses is recommended to maintain detection range.
