NIEDAX LST26.030 verbinder voor kabelgoten, thermisch verzinkt staal, 300 mm

With a 300 mm length and hot-dip galvanized finish, the NIEDAX LST26.030 joint connector is built for straight connections of cable trays and cable ladders, even in demanding environments.

Overview

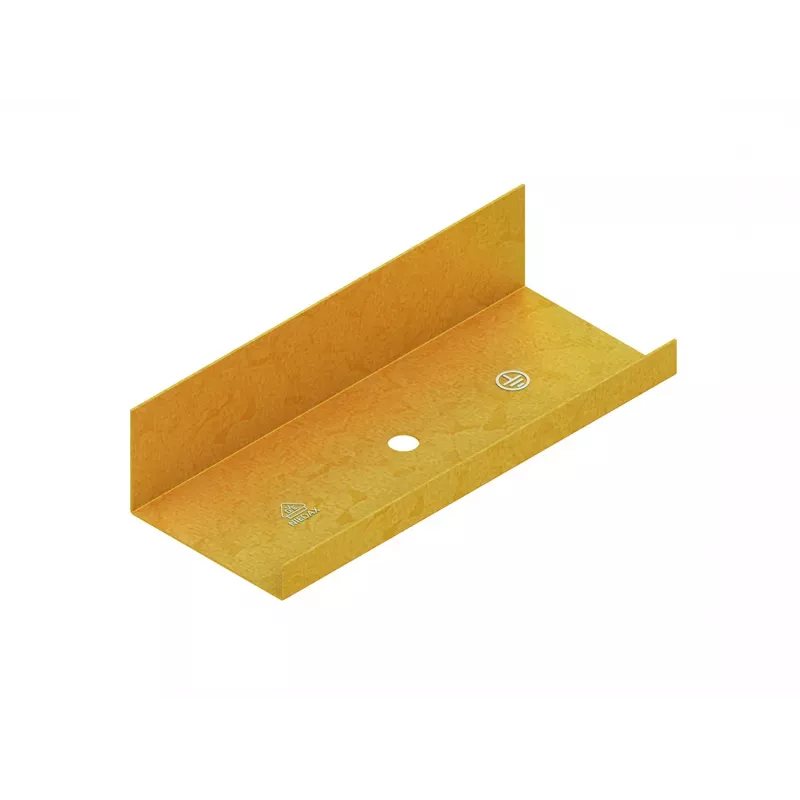

The NIEDAX LST26.030 is a robust joint connector designed for straight connections of cable trays and cable ladders with side heights up to 60 mm. Made from steel and hot-dip galvanized according to DIN EN ISO 1461, it offers excellent corrosion protection, classified as C4 per DIN EN ISO 12944-2, making it suitable for both indoor and outdoor applications. The connector features four screw holes for M6 screws, ensuring a secure and stable connection. Its dimensions are 300 mm in length, 26 mm in width, and 26 mm in profile height.

What stands out

• Hot-dip galvanized steel for superior corrosion resistance (C4 class)
• Compatible with cable trays and ladders up to 60 mm side height
• Four M6 screw holes for reliable fastening
• Suitable for indoor and outdoor use
• Straight connection design for easy installation

Technical details

• Product Type: Joint Connector
• Material: Steel
• Surface Treatment: Hot-dip galvanized (FT)
• Length: 300 mm
• Width: 26 mm
• Height (Profile): 26 mm
• Application: Straight connection of cable trays and cable ladders
• Compatibility: For cable trays/ladders with side height up to 60 mm
• Mounting Type: Screw connection
• Number of Screw Holes: 4
• Recommended Screw Size: M6
• Corrosion Protection Class: C4 (according to DIN EN ISO 12944-2)
• Standard: DIN EN ISO 1461 (Hot-dip galvanization)
• Color: Metallic Silver/Grey
• Usage Environment: Indoor and Outdoor
• System Component: Cable Management System

Our verdict

The NIEDAX LST26.030 is a reliable and durable joint connector, ideal for professional cable management installations where corrosion resistance and strength are paramount.
