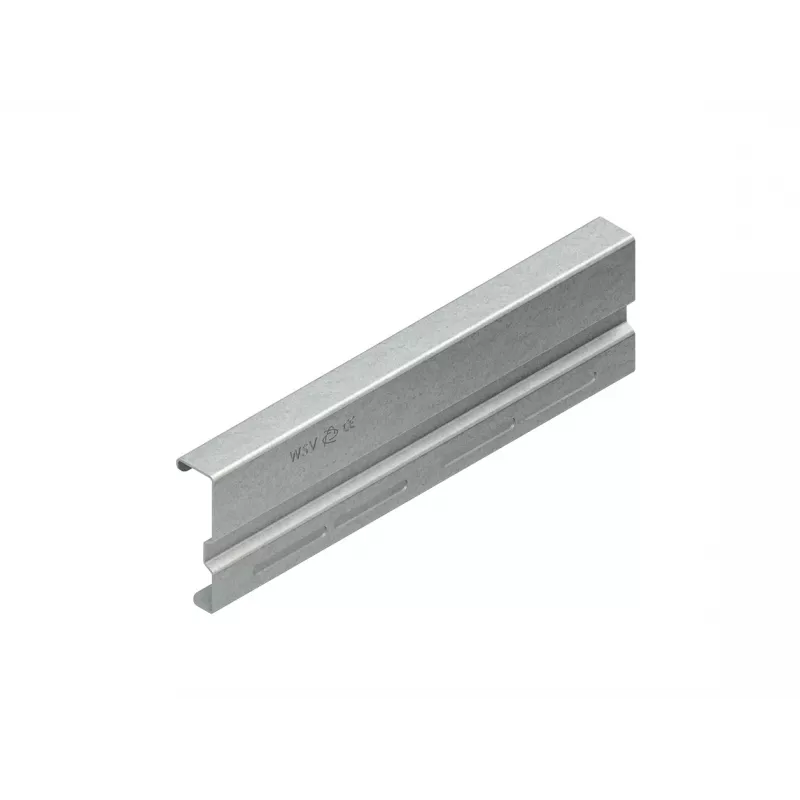

Niedax WSV105.390 verbinder, 106,5x390mm, bandverzinkt, DIN EN 10346

The Niedax WSV105.390 Splice Connector is a high-quality connecting element designed for use in cable tray systems. Manufactured from strip galvanized steel in accordance with DIN EN 10346, this splice connector ensures reliable and durable connections between cable tray sections. With dimensions of 106.5 mm width and 390 mm length, it is specifically engineered for Niedax cable trays and wire mesh trays, providing a secure screw connection that maintains system integrity.

Advantages

This splice connector offers excellent corrosion protection thanks to its strip galvanized surface finish, making it suitable for indoor applications. Its robust steel construction ensures long-lasting performance, while the screw mounting type allows for quick and easy installation without the need for additional fastening hardware. The connector is part of the Niedax WSV Series, known for its compatibility and reliability in cable management systems.

Suitable for

• Connecting two sections of Niedax cable trays
• Use in indoor cable management systems
• Applications requiring corrosion-resistant connections
• Installations complying with DIN EN 10346 standards

Key specifications

• Product Type: Splice Connector
• Material: Steel
• Surface Finish: Strip Galvanized
• Length: 390 mm
• Width: 106.5 mm
• Material Thickness: 1.5 mm
• Mounting Type: Screw Connection
• Colour: Metallic Silver
• Standard Compliance: DIN EN 10346

Recommendations

For optimal performance, ensure that the splice connector is used with compatible Niedax cable trays and that screws are tightened to the manufacturer's recommended torque. This connector is designed for indoor use only; for outdoor applications, consider additional corrosion protection measures.
