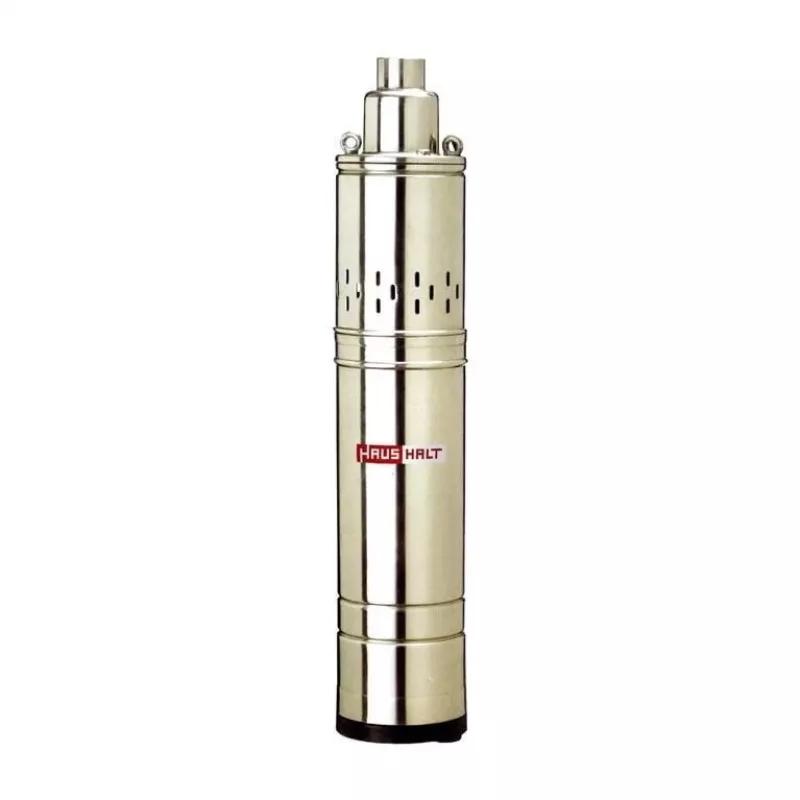

Diepbrondompel GS-500S 500W

For homes and farms that depend on a reliable water supply from deep wells, the GS-500S delivers a powerful and durable solution. This 500 W submersible pump is engineered to lift water from depths of up to 15 m and push it to a maximum head of 60 m, ensuring steady pressure for irrigation, livestock, or household use. Its stainless steel housing and hermetically sealed, oil-cooled motor provide long-lasting performance even in demanding conditions.

Who is it for

This pump is ideal for rural homeowners, farmers, and gardeners who need to draw water from deep wells or boreholes. It suits applications such as garden irrigation, water transfer to elevated tanks, and supplying water to remote buildings. With a flow rate of up to 1500 L/h, it covers most residential and small agricultural needs.

Main features

• Powerful 500 W motor with thermal overload protection for safe operation.
• Maximum head of 60 m and maximum submersion depth of 15 m.
• Flow rate of up to 1500 L/h for efficient water delivery.
• Durable stainless steel housing resists corrosion and wear.
• IPX8 waterproof rating allows continuous submersion.
• 15 m power cable for flexible installation.
• 1-inch outlet diameter fits standard hoses and pipes.

Specifications

• Power: 500 W
• Voltage: 230 V
• Frequency: 50 Hz
• Max Flow Rate: 1500 L/h
• Max Head: 60 m
• Max Submersion Depth: 15 m
• Outlet Diameter: 1 inch (25.4 mm)
• Pump Diameter: 98 mm
• Cable Length: 15 m
• Housing Material: Stainless Steel
• Protection Class: IPX8
• Max Water Temperature: 35 °C
• Pump Type: Deep Well Submersible
• Motor Type: Oil-cooled, Hermetically Sealed
• Thermal Overload Protection: Yes

Tips

To maximize the lifespan of your pump, ensure the well casing is clean and free of debris before installation. Always check that the water level is above the pump's minimum submersion depth to prevent dry running. Use a check valve on the discharge line to prevent backflow and reduce water hammer. Regularly inspect the power cable for damage and keep the pump away from sharp objects during lowering.
