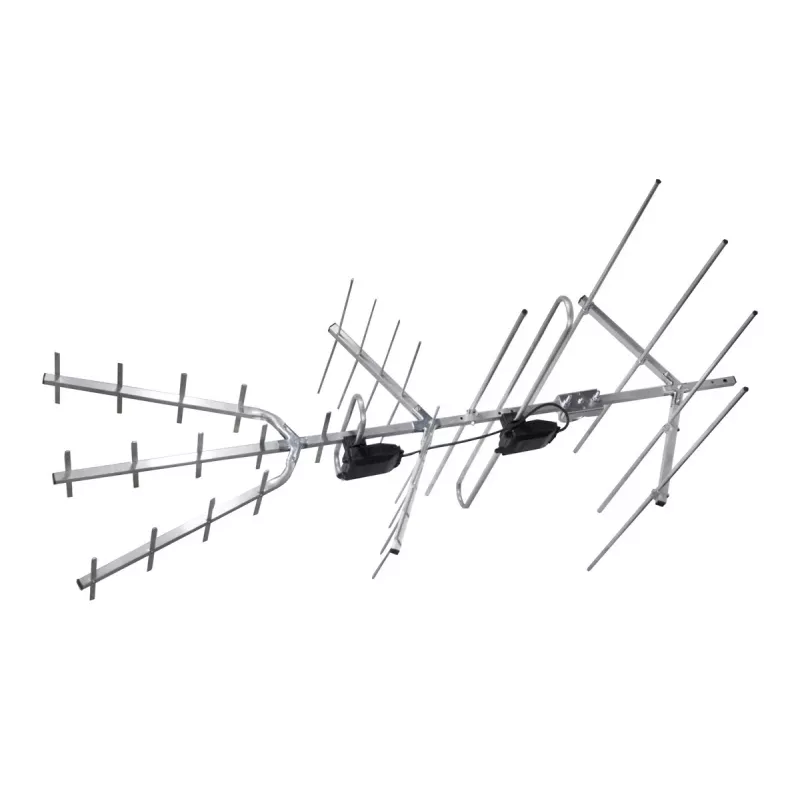

UHF + VHF AP-TRIA-MAX tv-antenne

Unlike compact indoor antennas that struggle with distant transmitters, the AP-TRIA-MAX combines a 38-element array with separate high-gain sections for VHF and UHF, delivering up to 15 dB of passive amplification without any power source. Its built-in LTE/5G filter keeps mobile signals from corrupting your TV reception, while the rugged aluminum and UV-resistant construction ensures years of reliable outdoor service.

Highlights

• Passive outdoor antenna with 38 elements for maximum signal capture
• Separate VHF (174-230 MHz) and UHF (470-694 MHz) sections for optimized performance
• High gain: up to 9 dB (VHF) and 15 dB (UHF)
• Integrated LTE/5G filter eliminates interference from mobile networks
• 75 Ohm impedance with F-type connector for universal compatibility
• Supports DVB-T, DVB-T2, and HDTV broadcasts
• Weather-resistant aluminum and UV-stabilized plastic construction
• Includes mast clamp for easy outdoor mounting

In daily use

Mount the AP-TRIA-MAX on a mast or wall bracket (not included) and aim it toward your nearest transmitter. Horizontal polarization and narrow beamwidths (40-50° VHF, 30-40° UHF) help reject multipath and co-channel interference, while the high front-to-back ratios (>18 dB VHF, >25 dB UHF) keep unwanted signals from the rear at bay. The antenna is completely passive, so no power supply is needed—just connect a standard coaxial cable (not included) from the F-type connector to your TV or set-top box. With a VSWR below 2.0 across both bands, you can expect consistent performance even in fringe reception areas.

Full specifications

• Antenna type: Passive outdoor
• Reception bands: VHF, UHF
• Frequency range VHF: 174 - 230 MHz
• Frequency range UHF: 470 - 694 MHz
• Gain VHF: up to 9 dB
• Gain UHF: up to 15 dB
• Impedance: 75 Ohm
• Polarization: Horizontal
• Built-in filter: LTE/5G
• Connector: F-type
• Number of elements: 38
• Compatibility: DVB-T, DVB-T2, HDTV
• Material: Aluminum, UV-resistant plastic
• Mounting: Mast clamp (included)
• Weather resistance: Yes
• Front-to-back ratio VHF: >18 dB
• Front-to-back ratio UHF: >25 dB
• VSWR: <2.0
• Beamwidth horizontal VHF: 40-50°
• Beamwidth horizontal UHF: 30-40°

Final note

The AP-TRIA-MAX is a robust, high-performance solution for anyone needing reliable free-to-air TV reception in challenging locations. Its passive design means zero running costs and no electronics to fail, making it a set-and-forget upgrade for your home entertainment system.
