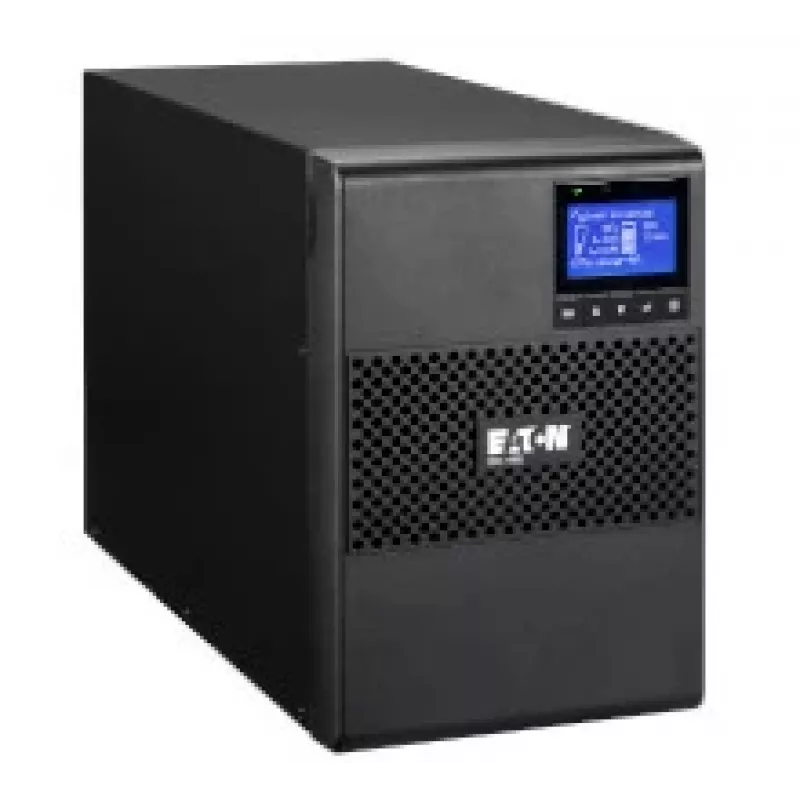

Noodstroomvoorziening Eaton 9SX

The Eaton 9SX Uninterruptible Power Supply (1 kVA, 900 W) provides on-line double-conversion power protection in a compact tower form. Designed for infrastructure, industrial, medical, IT, networking, storage and telecom environments, the UPS includes a sealed lead-acid battery, an LCD display and six C13 AC outlets. It is certified to IEC/EN 62040-1 and UL 1778 standards and delivers up to 95% efficiency with typical backup time of 16.5 minutes at half load.

Advantages

The Eaton 9SX offers high availability and advanced protection through on-line double-conversion technology, ensuring consistent voltage and frequency regulation. Its tower format and multiple AC outlets simplify deployment and connection of critical equipment. The integrated LCD provides status and measurement information, while the sealed lead-acid battery supplies reliable backup power. Certification to IEC/EN 62040-1 and UL 1778 confirms compliance with recognized safety and performance standards.

Suitable for

• Small server rooms and network closets
• Workstations and IT equipment
• Network, storage and telecom devices
• Medical devices requiring short-term backup
• Industrial control equipment with limited power needs

Key specifications

• Output power: 900 W
• Output power capacity: 1 kVA
• AC outlets: 6 × C13
• Battery type: sealed lead-acid
• Typical backup time: 16.5 minutes at 50% load
• Efficiency: up to 95%
• Ports: 1 × USB 2.0
• Weight: 14.8 kg
• Colour: Black
• Standards: IEC/EN 62040-1, UL 1778

How to use

Place the Eaton 9SX on a stable, ventilated surface and connect it to a grounded AC supply. Plug your critical devices into the available C13 outlets, turn on the UPS, and use the LCD to verify input/output status and battery condition. For communication and graceful shutdown, connect the USB 2.0 port to a monitoring system if required. Follow the user manual for battery commissioning and initial self-test procedures before placing the UPS into regular operation.

Recommendations

Install the UPS in a dry, dust-free environment with ambient temperature within the manufacturer's specified range. Regularly test the battery and replace it according to the maintenance schedule or when runtime degrades. Avoid overloading the UPS; keep total connected load below the rated 900 W to ensure proper backup time and longevity.
