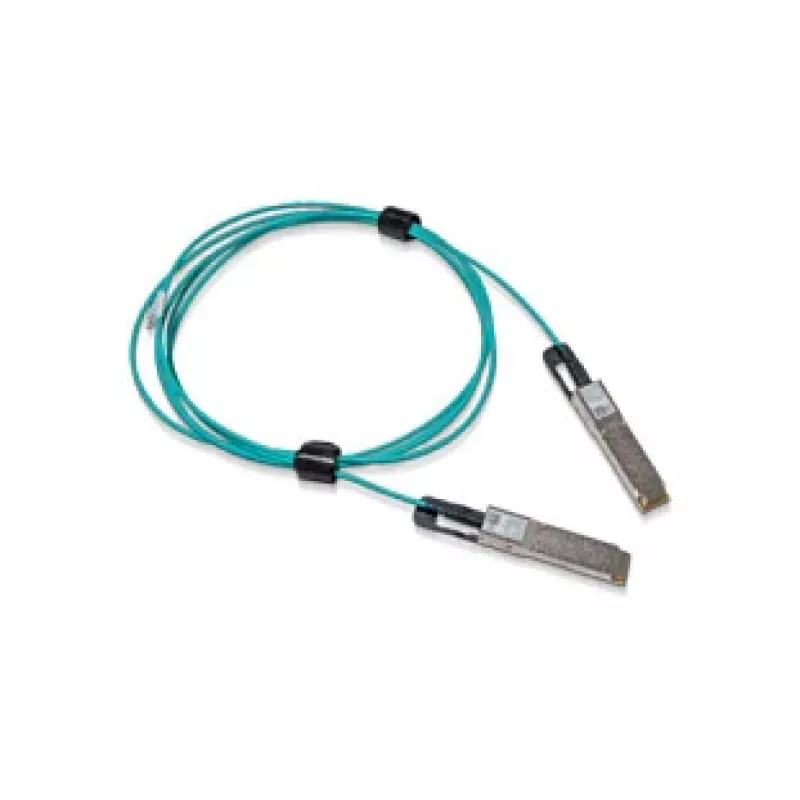

NVIDIA Mellanox MFS1S00-V010E 200GBase-AOC Direct Connect kabel - QSFP56 naar QSFP56 - 3m Active Optical Cable

High-density data centers and HPC clusters demand low-latency, high-bandwidth interconnects without the bulk and power draw of traditional copper cables. This 200G Active Optical Cable (AOC) replaces bulky copper with a lightweight, flexible fiber link that delivers full 200 Gbps throughput over 3 meters.

Who is it for

Network architects, data center operators, and HPC system integrators who need reliable 200GbE or InfiniBand HDR connectivity between QSFP56 ports in top-of-rack switches, servers, and storage systems.

Main features

• 200 Gbps data rate over multi-mode fiber
• QSFP56 to QSFP56 connectors, hot-swappable
• 3-meter length, black LSZH jacket
• VCSEL-based optical technology for low power (4.5 W max per end)
• Supports InfiniBand HDR and Ethernet 200GbE protocols

Specifications

• Product type: Active Optical Cable (AOC)
• Connector 1: QSFP56
• Connector 2: QSFP56
• Cable length: 3 m
• Data rate: 200 Gbps
• Fiber type: Multi-mode
• Operating temperature: 0°C to 70°C
• Supply voltage: 3.3 V
• Power consumption (max): 4.5 W per end

Tips

Ensure both ports support QSFP56 and the required protocol (200GbE or InfiniBand HDR). The AOC is hot-swappable, so you can install or remove it without powering down the system.
