OBO Bettermann AS 55 uitlegconsole, thermisch verzinkt, 210 mm uitlading, 55x30 mm profiel 6419286

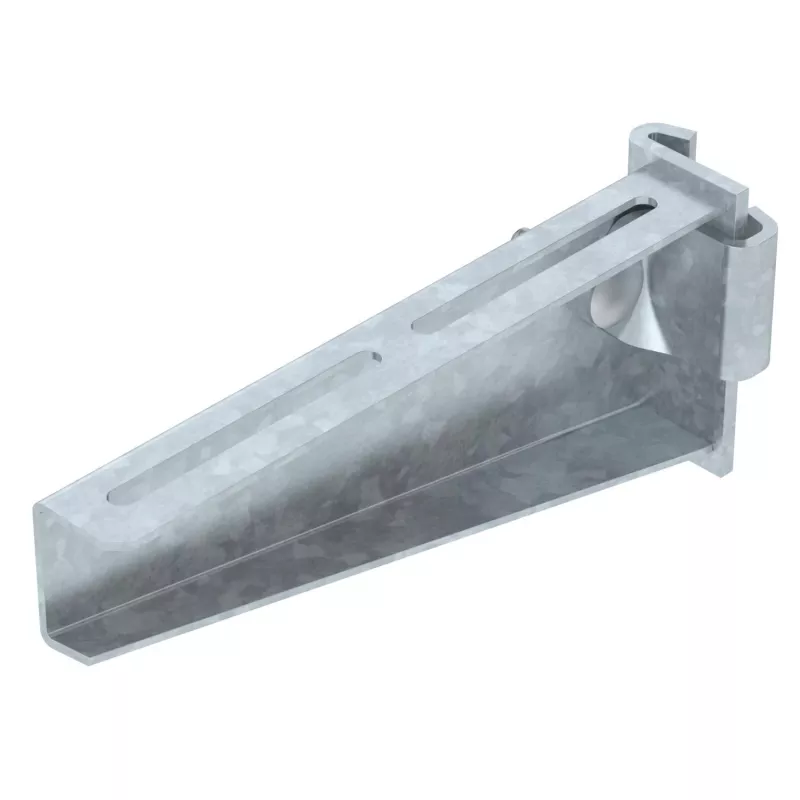

The AS 55 cantilever bracket from OBO Bettermann stands out for its hot-dip galvanized finish, which delivers high corrosion resistance for demanding indoor and protected outdoor environments. Its compact 210 mm projection and 55x30 mm profile make it a reliable support for cable trays and ladders where space is limited but strength is still required.

Highlights

• Hot-dip galvanized steel for long-lasting protection against corrosion
• 210 mm projection length suitable for narrow cable routing
• 55 x 30 mm profile dimensions provide a stable mounting base
• Two mounting holes (11 mm diameter) for secure wall or ceiling attachment
• Supports loads up to 0.7 kN (70 kg)

In daily use

Installation is straightforward: the bracket is fixed using two bolts through the pre-drilled holes, and the cable tray or ladder rests directly on the upper edge of the profile. The galvanized surface requires no additional painting and withstands mechanical wear during cable installation. The metallic grey finish blends with most industrial settings.

Full specifications

• Brand: OBO Bettermann
• Model: AS 55 21 FT
• MPN: 6419286
• EAN: 4012195872917
• Product type: Cantilever bracket
• Material: Steel
• Surface finish: Hot-dip galvanized
• Projection length: 210 mm
• Profile dimensions (H x W): 55 x 30 mm
• Mounting type: Wall or ceiling mount
• Application: Cable tray and cable ladder support
• Maximum load capacity: 0.7 kN (70 kg)
• Mounting hole diameter: 11 mm
• Number of mounting holes: 2
• Colour: Metallic grey

Final note

A dependable, corrosion-resistant bracket for professional cable management, engineered for straightforward installation and long service life.
