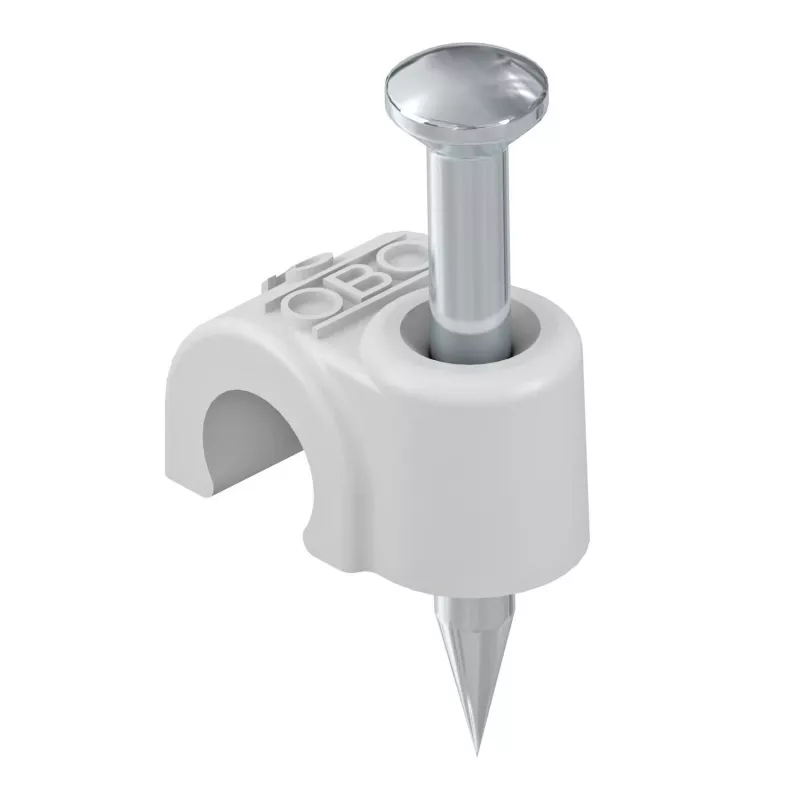

OBO Bettermann iso-nagelclip 5,0 mm geïsoleerde nagelbeugel, lichtgrijs, 100 stuks 2227339

Securing round cables indoors can be time-consuming and unreliable when using separate fasteners that require drilling or screwing. The OBO Bettermann Iso-Nagel-Clip offers a simple, efficient solution: a one-piece insulated nail clip that is hammered directly into wood, masonry, or similar substrates, fixing cables up to 5.0 mm in diameter quickly and securely.

Who is it for

This clip is ideal for electricians, HVAC technicians, and DIY installers who need to route low-voltage or signal cables along walls, ceilings, or wooden studs. It is particularly suited for indoor applications where speed and neatness matter.

Main features

• One-piece design with integrated steel nail for fast hammer installation.
• Insulating polyamide clip body prevents damage to cable insulation and provides electrical isolation.
• Accommodates round cables up to 5.0 mm in diameter.
• Light grey colour (RAL 7035) blends unobtrusively with most interiors.
• Halogen-free material for safer indoor air quality.
• Pack of 100 pieces for efficient large-scale installations.

Specifications

• Product type: Insulated nail clip
• Manufacturer series: Iso-Nagel-Clip
• Maximum cable diameter: 5.0 mm
• Clip material: Polyamide (PA)
• Nail material: Steel
• Colour: Light grey (RAL 7035)
• Halogen-free: Yes
• Temperature resistance: -20 to +80 °C
• Mounting type: Nail fastening
• Quantity per pack: 100 pieces
• Suitable for: Round cables
• Application: Indoor cable fastening
• Fire protection class: V-2 (UL 94)
• RoHS compliant: Yes
• REACH compliant: Yes

Tips

For best results, use a hammer with a flat face and ensure the substrate is solid enough to hold the nail securely. Pre-drilling is not required in wood, but for hard masonry a pilot hole may ease installation. Always check local regulations for cable fixing methods.
