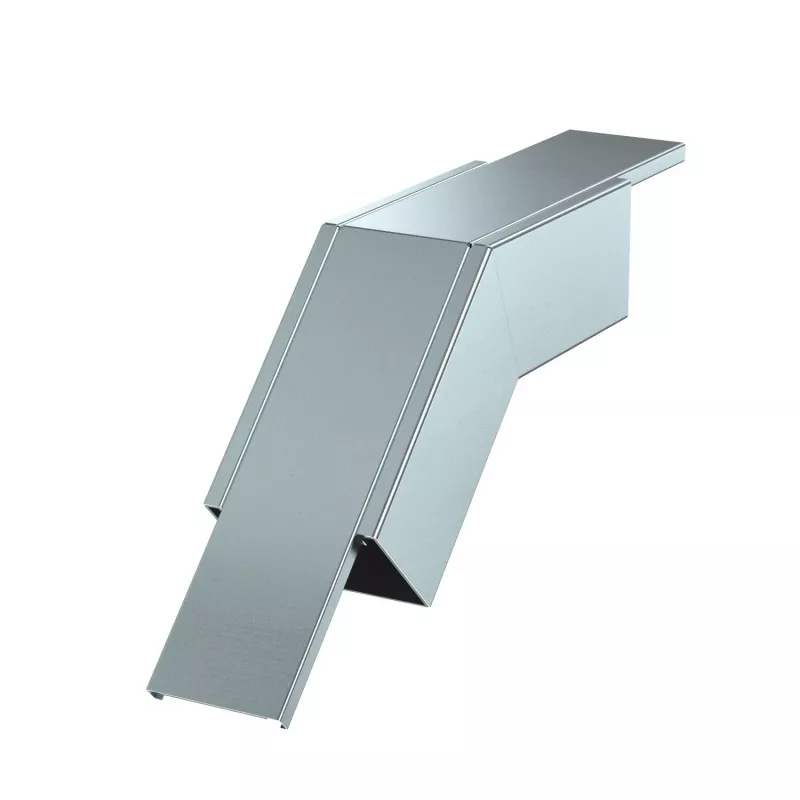

OBO BETTERMANN PLM-BF 45° dalende kabeldraagbocht 800x100mm thermisch verzinkt 7218106

This 45° falling cable tray bend is engineered for the OBO Bettermann PLM-BF cable tray system, providing a smooth downward transition for industrial cable management. Its hot-dip galvanized steel construction ensures long-term corrosion resistance in demanding environments.

Advantages

The 45° falling bend allows for precise directional changes in cable tray runs, maintaining cable support and protection. The hot-dip galvanized finish, compliant with DIN EN ISO 1461, offers robust protection against corrosion, extending the service life of the installation.

Suitable for

• Industrial cable management installations
• PLM-BF cable tray systems with 800 mm width and 100 mm height
• Environments requiring corrosion-resistant cable support

Key specifications

• Bend angle: 45°
• Bend direction: falling (downward sloping)
• Nominal tray width: 800 mm
• Nominal tray height: 100 mm
• Material: steel
• Surface finish: hot-dip galvanized
• Bend radius: 300 mm
• Standard compliance: DIN EN 61537

Recommendations

Use this bend in conjunction with OBO Bettermann PLM-BF straight sections and fittings for a complete, code-compliant cable tray system.
