OBO Bettermann T 1 kabelaftakdoos, lichtgrijs, IP66, 7 invoeringen, 2007712

With an impact resistance of IK07 and a glow wire rating of 750 °C, the OBO Bettermann T 1 cable junction box ensures reliable connections in demanding environments. Its halogen-free polypropylene housing and UV resistance make it suitable for both indoor and outdoor installations.

Overview

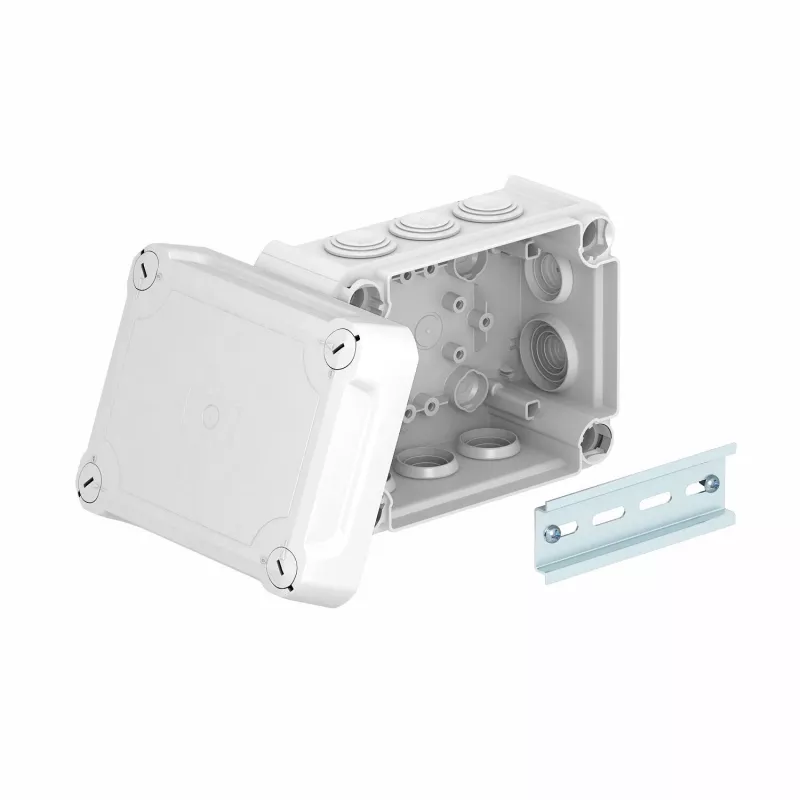

The OBO Bettermann T 1 is a surface-mounted cable junction box designed for electrical installations. It features a light grey (RAL 7035) polypropylene housing with a snap-on lid, providing quick access for wiring. The box offers seven pre-punched membrane entries for cable entry, accommodating conductors up to 2.5 mm².

What stands out

• High protection class IP66 against dust and water jets
• Impact resistance IK07 for mechanical durability
• Halogen-free material for increased safety in case of fire
• UV resistant for outdoor use
• Wide operating temperature range from -25 °C to +60 °C

Technical details

• Series: T 1
• Material: Polypropylene (PP)
• Colour: Light grey (RAL 7035)
• Protection class: IP66
• Impact resistance: IK07
• Halogen-free: Yes
• Glow wire test: 750 °C
• Rated insulation voltage: 500 V
• Max. conductor cross-section: 2.5 mm²
• Number of entries: 7
• Entry type: Pre-punched membrane
• Lid fastening: Snap-on
• Mounting type: Surface mounting
• UV resistant: Yes
• Temperature range: -25 °C to +60 °C

Our verdict

A robust and versatile junction box that meets high safety standards, ideal for professional electrical installations where durability and protection are paramount.
