Omnidirectionele antenne QuWireless QuSpot

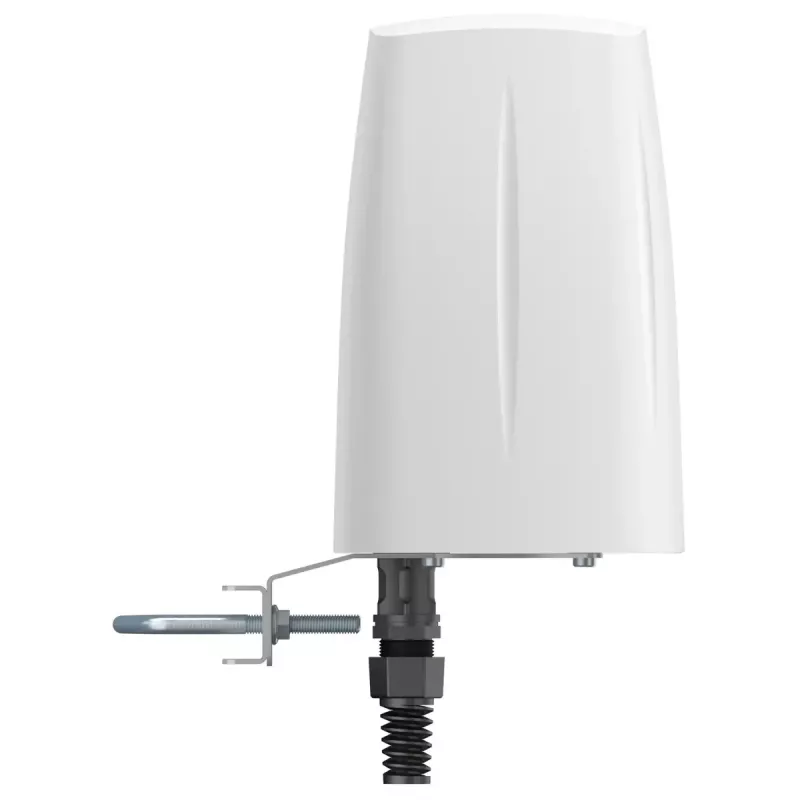

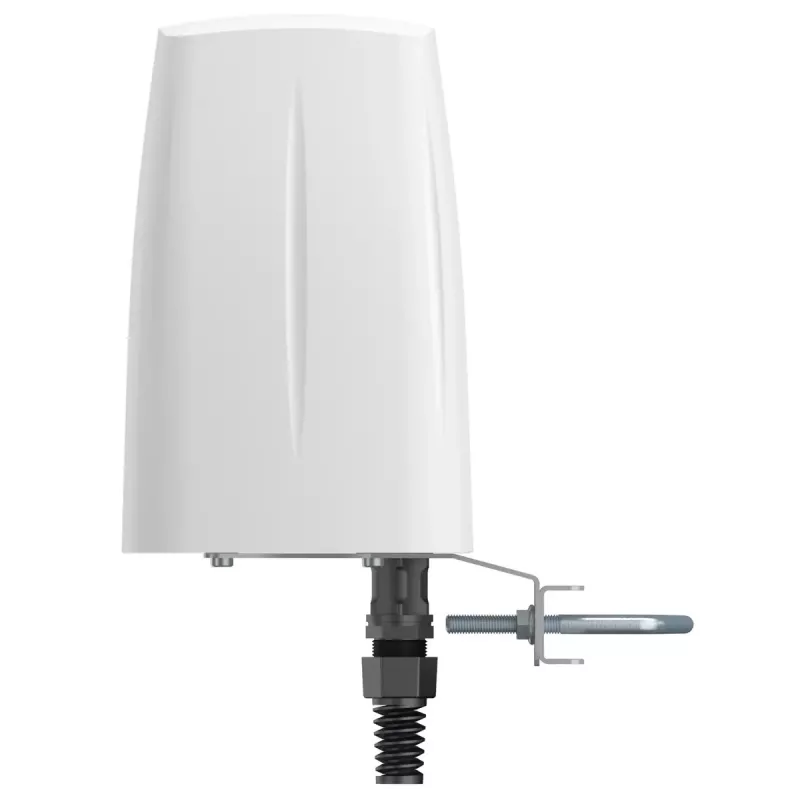

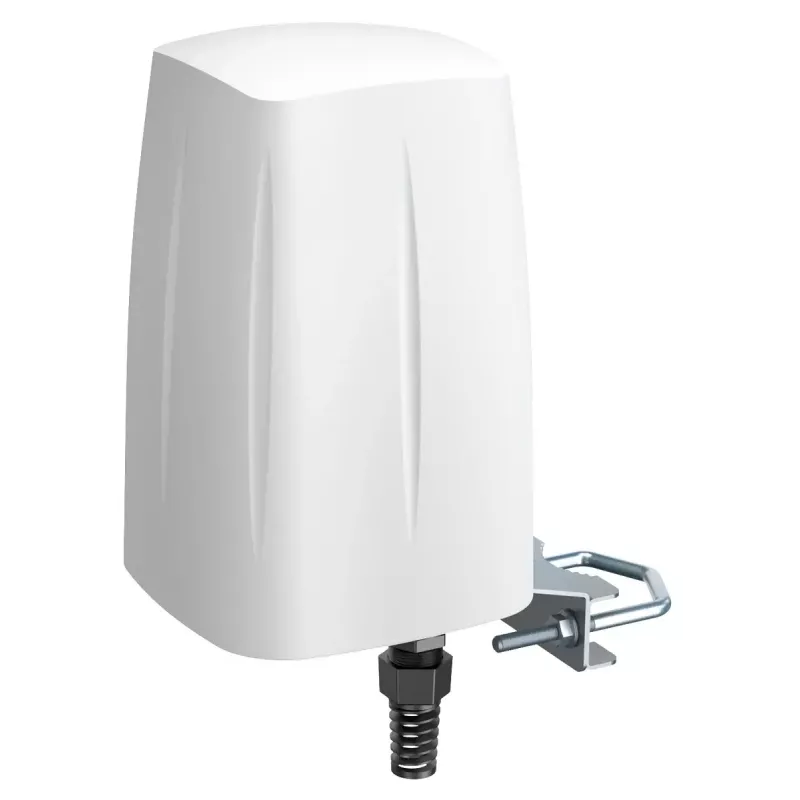

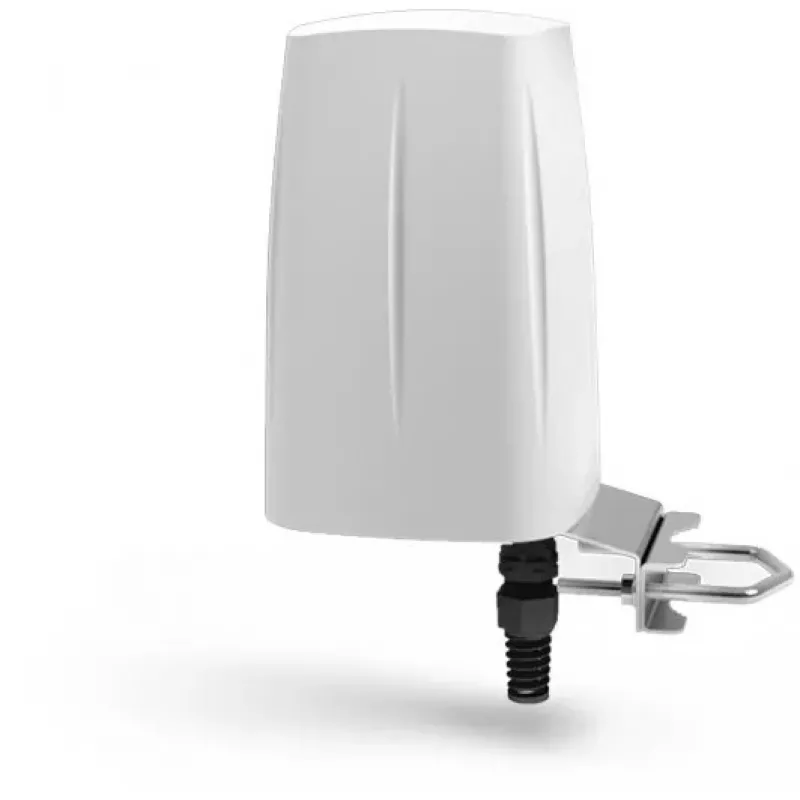

The QuWireless QuSpot omni-directional antenna is an all-in-one outdoor enclosure that integrates multi-band LTE omni antennas, omni Wi‑Fi antennas and a mounting space for Teltonika routers RUT951, RUT950, RUT901 or RUT900. Designed for mobile and fixed installations, QuSpot supports LTE frequency ranges 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz and Wi‑Fi at 2.4–2.5 GHz, offers vertical polarization and a maximum gain of 4 dBi. Its compact white housing (160 × 160 × 240 mm) and PoE/LAN connector simplify outdoor deployment for enhanced network connectivity.

Advantages

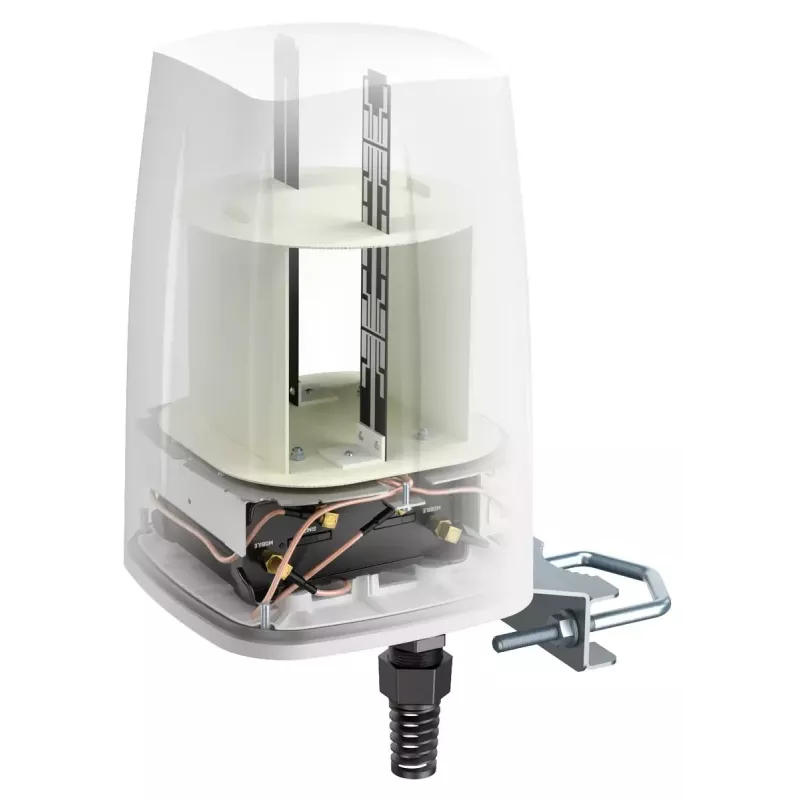

The QuSpot combines an integrated multi-band LTE antenna system with embedded omni Wi‑Fi antennas and a dedicated space to install Teltonika RUT951, RUT950, RUT901 or RUT900 routers, providing a single weatherproof enclosure for both wireless reception and the router unit. With vertical polarization and a 4 dBi gain, it supports stable omni-directional coverage across the listed LTE and 2.4 GHz Wi‑Fi bands. Compact dimensions and a PoE/LAN connector reduce installation complexity and cable runs for outdoor uses.

Suitable for

• Industrial outdoor connectivity
• CCTV and remote camera systems
• Public hotspots and temporary event networks
• Marine installations: yachts and boats
• Recreational vehicles, campers and RV internet access

Key specifications

• Model: Omni-directional antenna QuWireless QuSpot (MPN: A950S)
• Frequency bands: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz (LTE) and 2.4–2.5 GHz (Wi‑Fi)
• Antenna gain (max): 4 dBi
• Polarization: Vertical
• Connector: PoE/LAN
• Dimensions: 160 × 160 × 240 mm
• Weight: 1.5 kg
• Color: White
• Compatible routers: Teltonika RUT951, RUT950, RUT901, RUT900

How to use

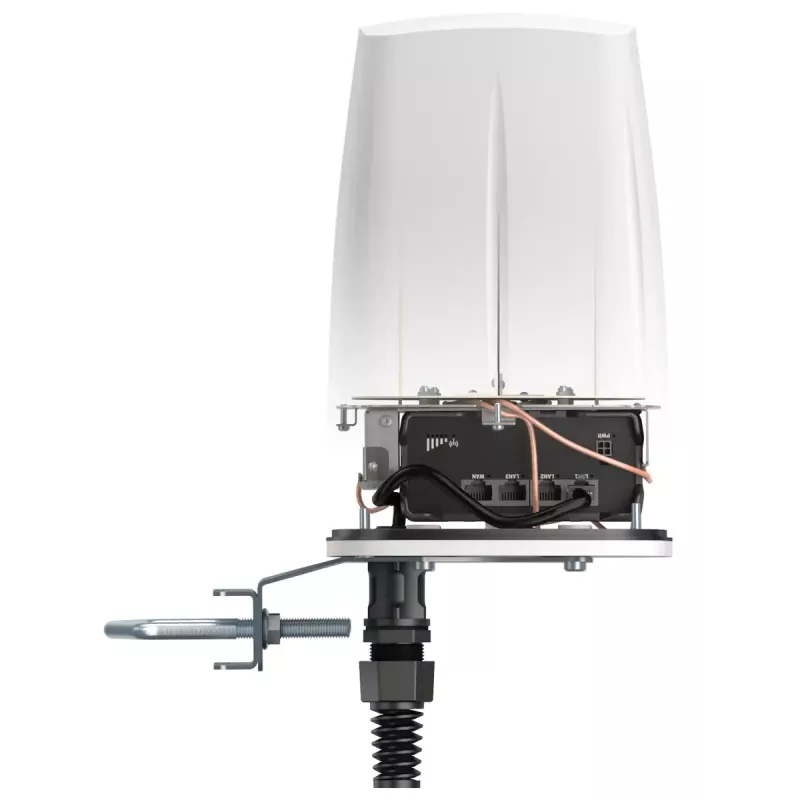

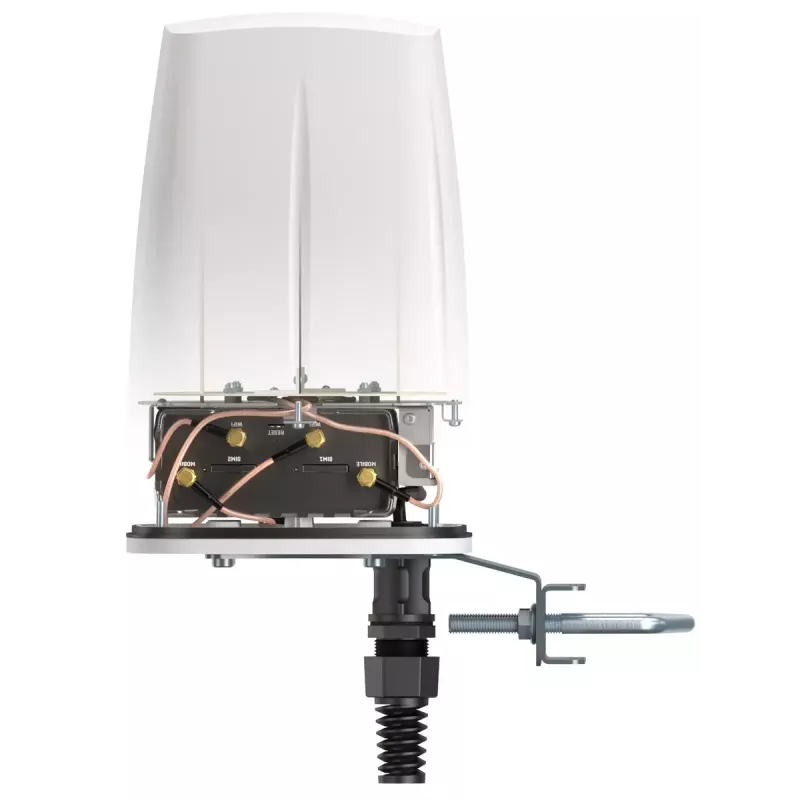

Mount the QuSpot enclosure on a suitable outdoor pole or flat surface following local installation rules and ensuring a clear area for omni-directional coverage. Install the supported Teltonika router inside the provided slot and connect the router’s antennas internally to the integrated antenna feed points. Connect power and network using the PoE/LAN connector; verify router configuration and operator SIM settings after powering up. Position the unit to minimize obstructions and avoid placing it near large metallic objects that can degrade omni-directional performance.

Recommendations

For best results, install the QuSpot at an elevated location with a clear line of sight to surrounding cells or access points. Use weatherproof cable entries and follow Teltonika’s router mounting guidance for secure attachment and proper ventilation.
