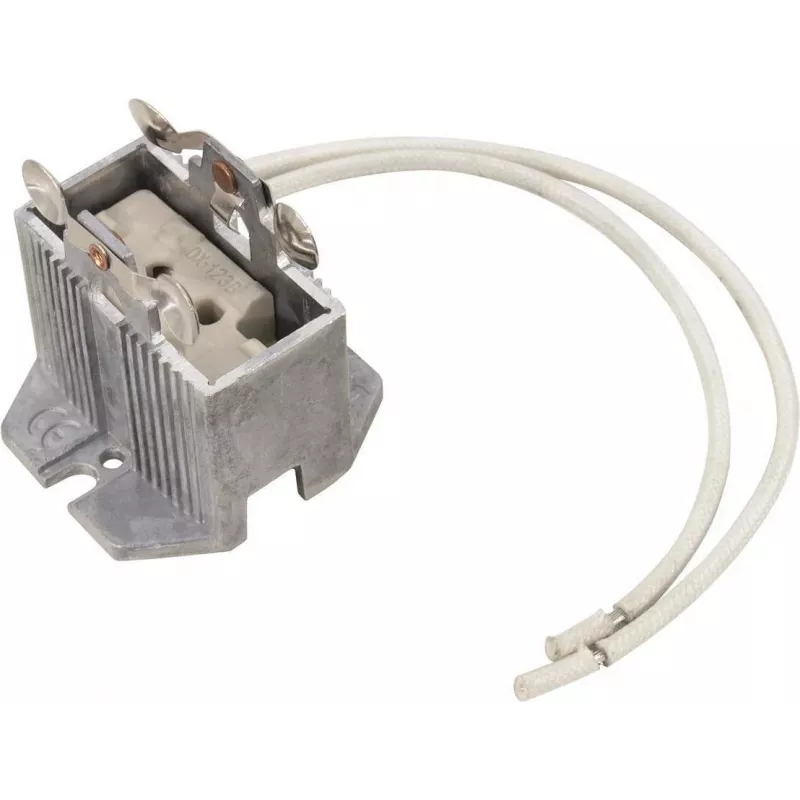

OMNILUX GX-9.5 & GY-9.5 lampfitting, keramisch, 250V/10A, schroefbevestiging 9450030C

Professional lamp holder for GX-9.5 and GY-9.5 base lamps, built from high-temperature steatite ceramic and rated for 250 V / 10 A. Its screw mounting and nickel-plated brass contacts ensure a secure, reliable connection in stage and studio lighting fixtures.

Advantages

Withstands temperatures up to 250°C, making it suitable for high-wattage lamps up to 2500 W. The rear cable entry and screw terminals simplify installation in projectors and moving heads.

Suitable for

• Stage and studio lighting fixtures using GX-9.5 or GY-9.5 lamps
• Projectors and professional lighting equipment
• Replacement or upgrade of worn lamp sockets

Key specifications

• Socket type: GX-9.5 & GY-9.5
• Material: Steatite ceramic
• Max. voltage: 250 V AC
• Max. current: 10 A
• Max. wattage: 2500 W
• Mounting: Screw mounting, hole distance 18 mm
• Connection: Screw terminals, rear cable entry
• Contact material: Nickel-plated brass
• Temperature resistance: Up to 250°C
• Colour: White

Recommendations

Verify the lamp base type (GX-9.5 or GY-9.5) and the mounting hole spacing before ordering. Ensure the fixture's power supply is disconnected during installation.
