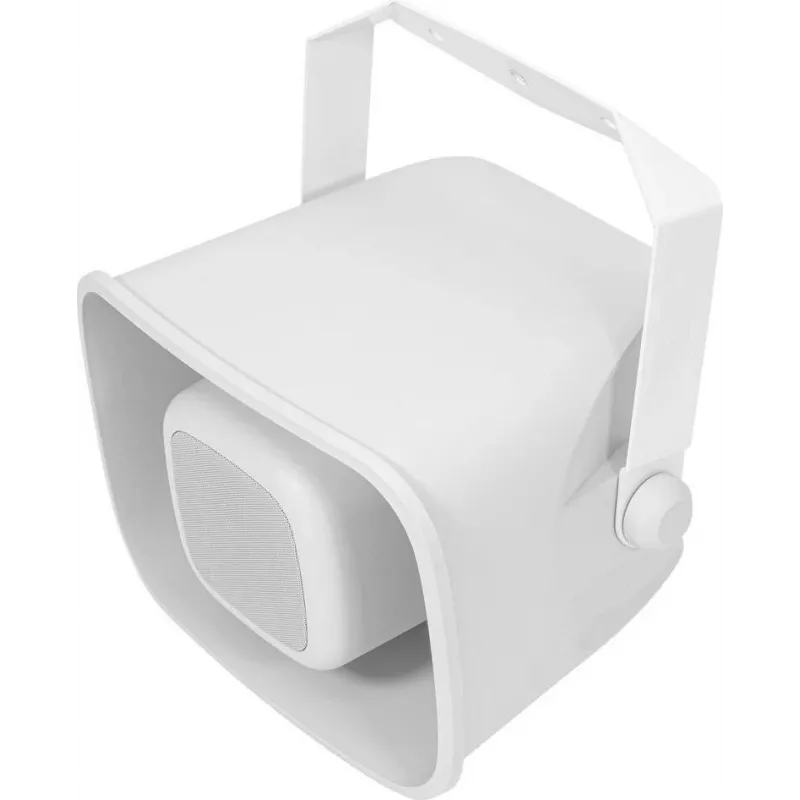

OMNITRONIC HS-62 30W 100V hoornluidspreker IP66 lichtgrijs 80710825

The OMNITRONIC HS-62 is a pressure chamber loudspeaker engineered for demanding voice alarm and public address applications where intelligibility and weather resistance are non-negotiable. Unlike conventional surface-mount speakers, its horn-loaded compression driver focuses acoustic energy into a controlled 90° x 60° dispersion pattern, cutting through ambient noise and reverberation in factories, tunnels, sports facilities, and open-air venues. With an IP66-rated ABS enclosure and a powder-coated aluminum swivel bracket, this speaker shrugs off dust, heavy rain, and temperature swings from -20 °C to 50 °C, making it a dependable choice for permanent outdoor or industrial installations.

Highlights

• High-efficiency horn design delivers 108 dB sensitivity (1 W/1 m) and up to 123 dB maximum SPL
• 100 V line transformer with 30 W, 15 W, 7.5 W, and 3.75 W power taps for flexible system zoning
• IP66 dust-tight and powerful water jet protection, ideal for harsh environments
• Light grey ABS housing with aluminum swivel bracket for precise aiming
• Screw terminal connection ensures secure, maintenance-free wiring

In daily use

Installation is straightforward: the included swivel bracket mounts to walls or ceilings, and the speaker can be angled to cover specific zones without dead spots. Connect your 100 V amplifier output to the screw terminals, select the appropriate tap based on the number of speakers on the line, and the HS-62 will deliver consistent, clear announcements even across large areas. Its 300 Hz – 10 kHz frequency response is optimized for speech, ensuring every word is understood in noisy industrial settings or emergency situations.

Full specifications

• Speaker type: Horn speaker / compression driver
• RMS power: 30 W
• Maximum power: 60 W
• Impedance: 8 Ohm / 100 V line
• Transformer taps: 30 W, 15 W, 7.5 W, 3.75 W
• Frequency response: 300 Hz – 10 kHz
• Sensitivity: 108 dB (1 W/1 m)
• Maximum SPL: 123 dB
• Dispersion angle: 90° horizontal x 60° vertical
• IP rating: IP66
• Housing material: ABS plastic
• Mounting bracket material: Aluminum
• Colour: Light grey
• Connection: Screw terminals
• Operating temperature: -20 °C to 50 °C

Final note

For installers and system integrators, the HS-62 offers a rare combination of high output, weatherproof construction, and 100 V compatibility in a compact, easy-to-mount package. It is a workhorse that will perform reliably for years, even in the toughest conditions.
