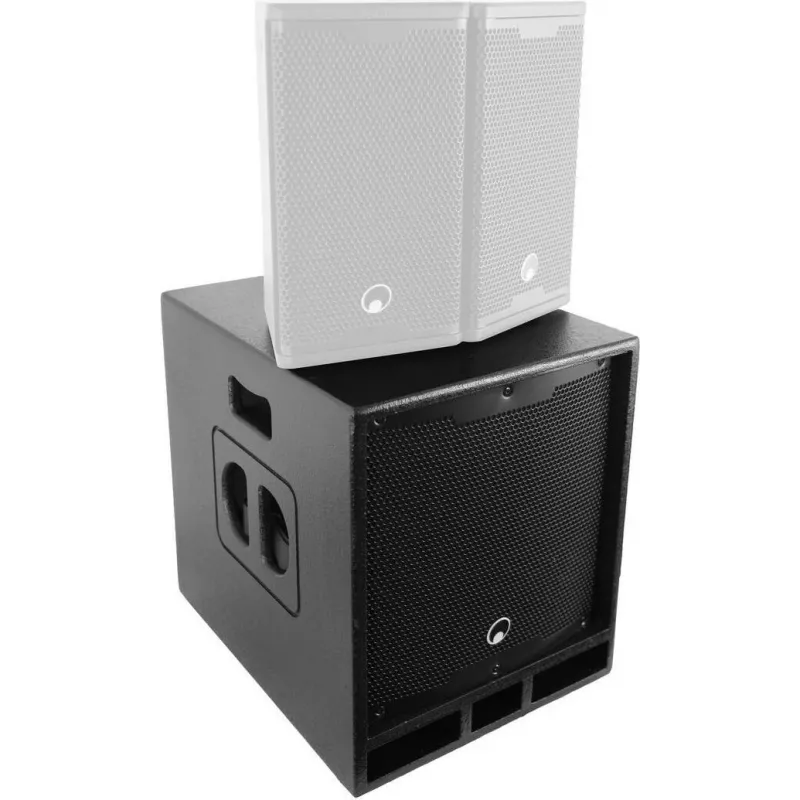

OMNITRONIC MAXX-1206DSP 2.1 actief-subwoofersysteem 12 inch met DSP 11039062

Small PA systems often struggle to deliver deep, controlled bass without distortion, leaving live performances and DJ sets sounding thin. The OMNITRONIC MAXX-1206DSP solves this by combining a 12-inch subwoofer with two satellite outputs in a single powered package, delivering 600 W RMS of clean, DSP-managed sound.

Who is it for

Mobile DJs, small bands, and event organizers who need a compact yet powerful 2.1 system with easy setup. Its integrated DSP presets make it suitable for both music playback and speech applications without external processing.

Main features

• 12-inch birch plywood subwoofer with scratch-resistant lacquer finish
• Built-in DSP with 4 presets (Music, Live, Speech, DJ), crossover, phase, delay, and limiter
• 600 W total RMS power: 300 W subwoofer + 2 x 150 W satellite outputs
• Versatile connectivity: XLR/6.3 mm combo and RCA inputs, XLR parallel and filtered outputs, Speakon satellite outputs
• M20 threaded flange for satellite pole mounting and two integrated handles for transport

Specifications

• System type: 2.1 active subwoofer system
• Subwoofer driver: 12" (30 cm)
• Total RMS power: 600 W
• Subwoofer RMS power: 300 W
• Satellite RMS power per channel: 150 W @ 8 Ohms
• Frequency response: 40 Hz – 20 kHz
• Maximum SPL (peak): 125 dB
• DSP features: 4 presets, crossover, phase, delay, limiter
• Inputs: 2 x XLR/6.3 mm combo, 2 x RCA
• Outputs: 2 x XLR (parallel), 2 x XLR (filtered), 2 x Speakon (satellites)
• Cabinet material: birch plywood with scratch-resistant lacquer
• Mounting: M20 threaded flange
• Power supply: 230 V AC, 50 Hz
• Power consumption: 1000 W
• Controls: master volume, subwoofer volume, DSP menu
• Handles: 2 integrated

Tips

Use the DJ preset for bass-heavy music and the Speech preset for presentations to optimize clarity. Pair with 8-ohm passive satellite speakers for a complete mobile PA setup.
