Omnitronic module 2HE 4x jackbus 88x88mm paneelmodule

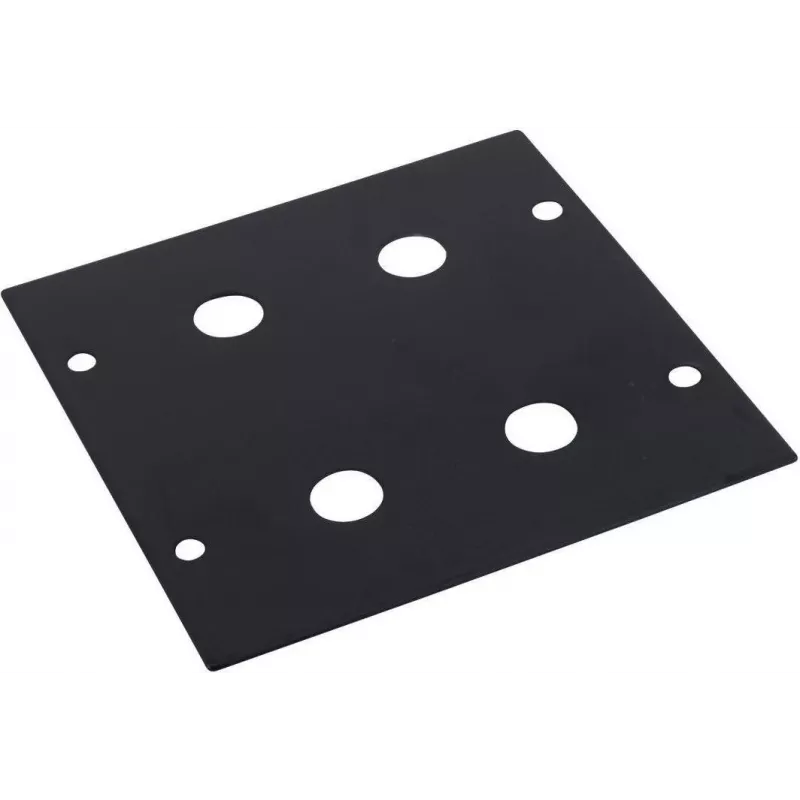

Omnitronic Module 2HE 4x Jack Connector 88x88mm panel module provides a compact, rack-mounted solution for integrating four jack connections into standard 2HE panel cutouts. Engineered by Omnitronic for professional audio and signal routing, this module fits an 88×88 mm opening and offers stable mechanical support for quarter-inch jack sockets, enabling neat and accessible wiring in studio racks, live sound frames, or fixed installations.

Advantages

The module delivers a space-efficient method to add four jack connectors to a 2HE panel area, reducing the need for separate adapter plates. Its standardized 88×88 mm format ensures compatibility with common rack cutouts while maintaining secure mounting and alignment of connectors. The design supports straightforward cabling and helps organize signal paths without occupying extra rack units.

Suitable for

Key specifications

How to use

Install the module into a compatible 2HE 88×88 mm panel cutout and secure it using the appropriate mounting hardware. Connect the rear wiring or patch cables to the jack sockets according to your signal flow and ground requirements. Use the front-facing jacks for easy access when patching instruments, line-level signals, or other audio connections; ensure connections are made with powered equipment turned off when practical to avoid noise or damage.

Recommendations

For reliable operation, route cables to minimize strain on the jack sockets, and verify connector seating periodically. Use proper cable management inside the rack to prevent accidental disconnection and to maintain clear signal paths. Select matching quality jack plugs and balanced or unbalanced wiring according to the requirements of your audio system.
