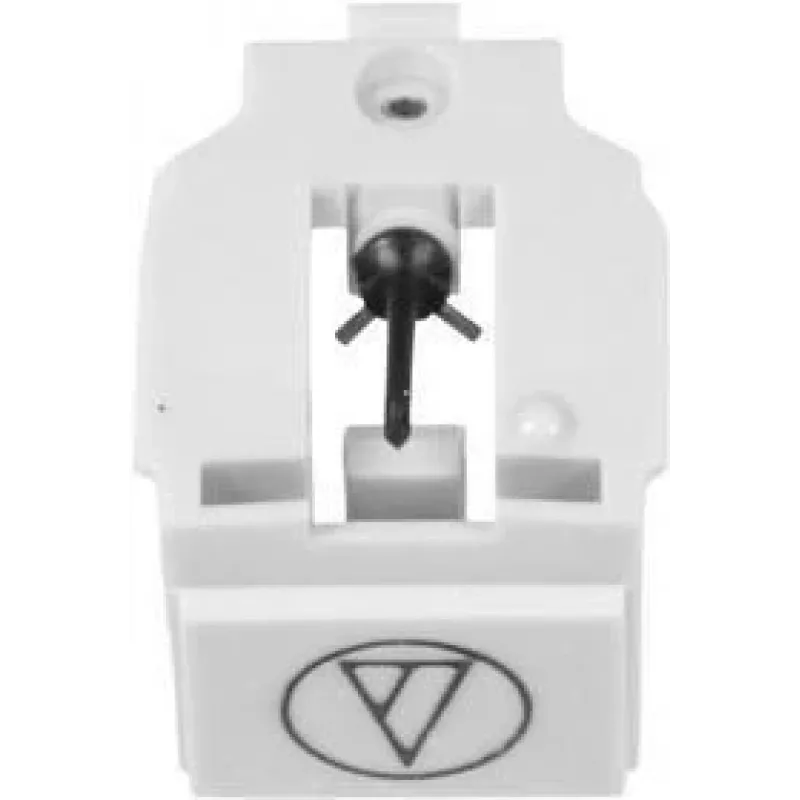

OMNITRONIC S-15 vervangnaald voor S-15 element (10609050)

DJs and scratch artists rely on the OMNITRONIC S-15 replacement stylus to keep their S-15 cartridge performing at its best. This spherical diamond stylus delivers a robust 5.5 mV output and a wide 20 Hz – 20 kHz frequency response, ensuring crisp highs and solid lows during demanding sets. The aluminum cantilever and 0.6 mil tip radius provide reliable tracking at 3.0 g, while channel separation above 20 dB maintains a clear stereo image. With its push-on mount and red color coding, swapping a worn stylus is quick and hassle-free.

Key specifications

• Stylus type: Spherical diamond
• Output voltage: 5.5 mV (1 kHz, 5 cm/sec)
• Frequency response: 20 – 20,000 Hz
• Tracking force: 3.0 g
• Channel separation: >20 dB (1 kHz)
• Channel balance: <2 dB (1 kHz)
• Stylus tip radius: 0.6 mil
• Cantilever material: Aluminum
• Recommended load impedance: 47 kOhm
• Recommended load capacitance: 200–400 pF
• Mounting type: Push-on
• Compatibility: Omnitronic S-15 cartridge

Why choose it

Engineered for DJing and scratching, this stylus offers the durability and sound quality needed for heavy use. Its spherical diamond tip handles back-cueing and scratching without sacrificing audio fidelity.

Ideal use cases

• Replacing a worn stylus on an Omnitronic S-15 cartridge
• Maintaining consistent performance in DJ setups
• Scratch and turntablism applications

Good to know

The stylus is color-coded red for easy identification and installs in seconds with its push-on design. For best results, pair it with a phono preamp meeting the recommended load specifications.
