Omnitronic TX-2520 3-weg passieve PA-luidspreker 700W RMS 1400W piek 2x15 inch 8 ohm 101dB 11037644

With a sensitivity of 101 dB and a peak power capacity of 1400 W, the Omnitronic TX-2520 is built to deliver high-output sound reinforcement. This passive 3-way PA speaker is engineered for demanding live sound applications where clarity and projection are essential.

Overview

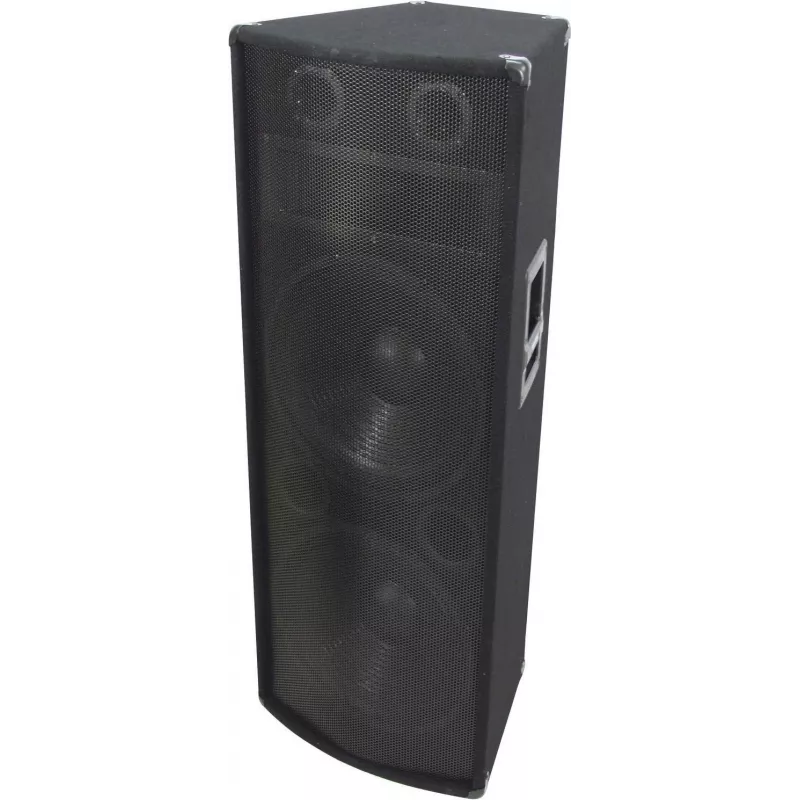

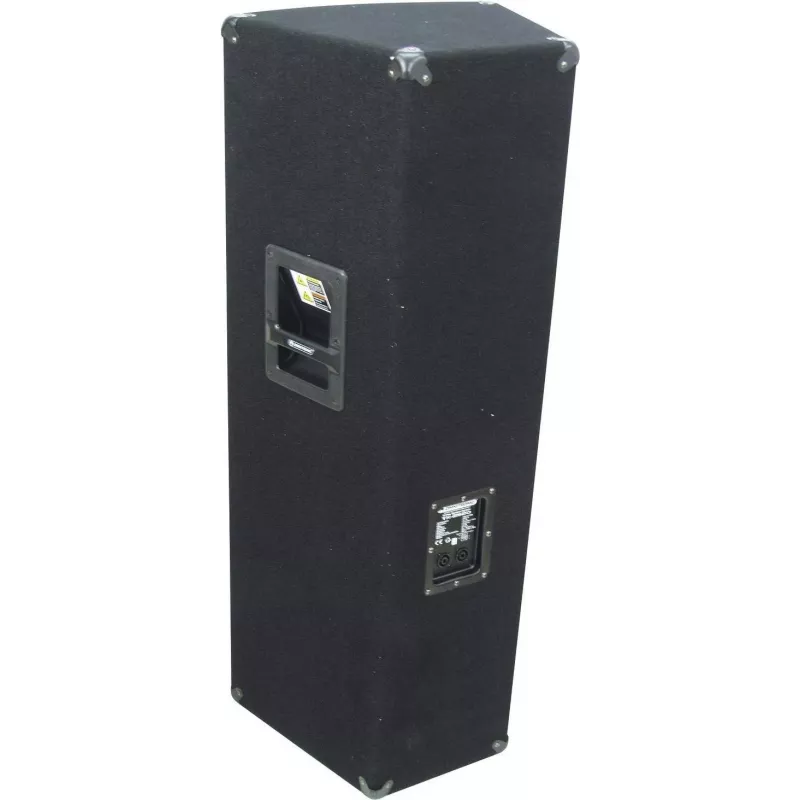

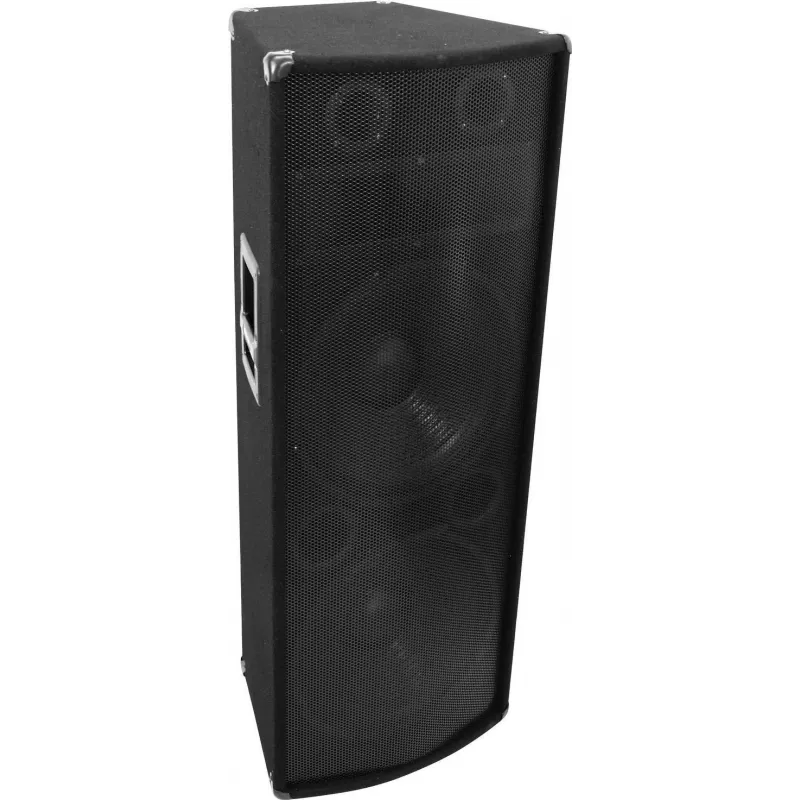

The TX-2520 is a passive 3-way speaker system featuring dual 15-inch woofers, a dedicated midrange driver, and a horn-loaded tweeter. It handles 700 W RMS and 1400 W peak power at 8 ohms, making it suitable for medium to large venues. The felt-covered wooden enclosure includes a protective grille and integrated handles for transport.

What stands out

• High sensitivity of 101 dB for efficient power conversion
• Dual 15-inch woofers deliver deep, punchy bass
• 3-way design with dedicated midrange and horn tweeter for balanced sound
• Rugged felt-covered wood cabinet with protective grille and handles
• Versatile connectivity: Speakon, 6.3 mm jack, and screw terminals

Technical details

• Speaker type: Passive PA speaker
• System type: 3-way
• Woofer size: 2 x 15 inch (38 cm)
• Midrange speaker: Yes
• Tweeter type: Horn
• RMS power: 700 W
• Peak power: 1400 W
• Impedance: 8 Ohm
• Sensitivity (1W/1m): 101 dB
• Max. SPL: 128 dB
• Frequency response: 30 Hz - 18 kHz
• Crossover frequencies: 800 Hz, 4 kHz
• Connectors: 2x Speaker (SPK), 2x 6.3 mm Jack, 2x Screw Terminal
• Enclosure material: Wood (felt-covered)
• Handles: Yes
• Protective grille: Yes

Our verdict

The Omnitronic TX-2520 is a powerful and efficient passive PA speaker, ideal for DJs, bands, and rental companies needing high output and reliable performance.
