OPTICUM HQ 8-WAY 1-8 DVB-T/SAT signaalsplitter 8x1

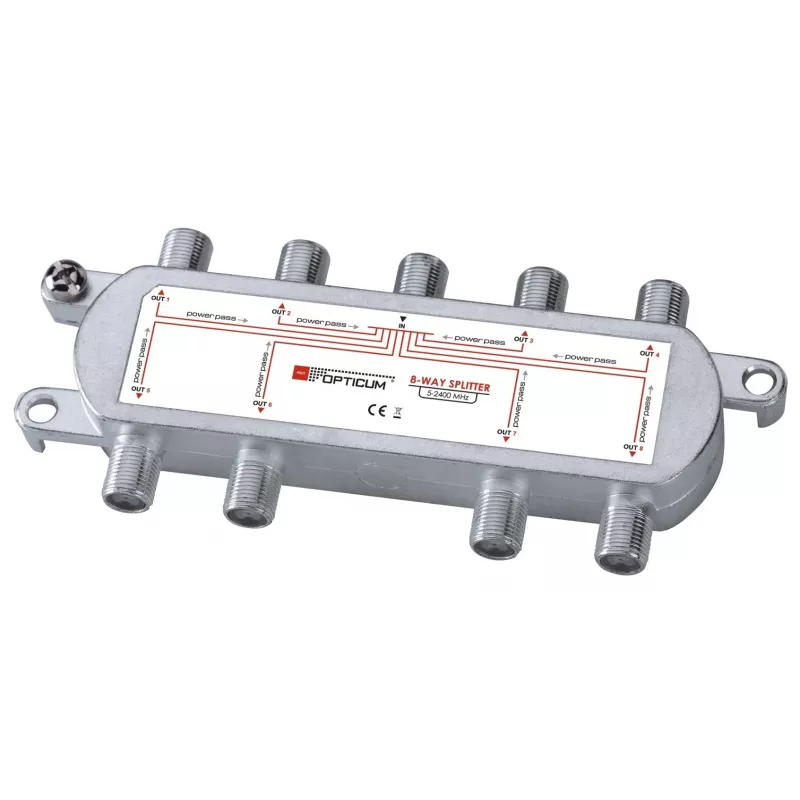

The OPTICUM HQ 8-WAY is a high-quality 1-to-8 signal splitter designed for distributing DVB-T, DVB-C, and satellite TV (SAT) signals. With a wide frequency range of 5-2400 MHz and 75 Ohm impedance, it ensures reliable signal distribution for indoor use. The zinc die-cast housing provides excellent shielding (Class A) and durability.

Advantages

This splitter offers low insertion loss and high isolation between outputs, minimizing signal degradation. One output supports DC pass for LNB power, making it ideal for satellite installations. Its compact design allows easy integration into existing setups.

Suitable for

• Distributing terrestrial TV (DVB-T) signals to multiple rooms
• Distributing cable TV (DVB-C) signals
• Distributing satellite TV (SAT) signals with LNB power pass-through
• Indoor signal distribution in homes, offices, or small commercial installations

Key specifications

• Product Type: Signal Splitter
• Input Ports: 1
• Output Ports: 8
• Frequency Range: 5 - 2400 MHz
• Impedance: 75 Ohm
• Connector Type: F-type (Female)
• DC Pass: Yes, on one output (for LNB power)
• Insertion Loss: 14.5 dB (5-40 MHz), 15.0 dB (40-470 MHz), 15.5 dB (470-862 MHz), 16.5 dB (950-1750 MHz), 18.0 dB (1750-2400 MHz)
• Isolation between Outputs: >20 dB (5-862 MHz), >20 dB (950-2400 MHz)
• Return Loss: >10 dB (5-2400 MHz)
• Shielding Effectiveness: Class A
• Housing Material: Zinc Die-Cast
• Application: Indoor

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This splitter is not weatherproof; install in a dry indoor location.
