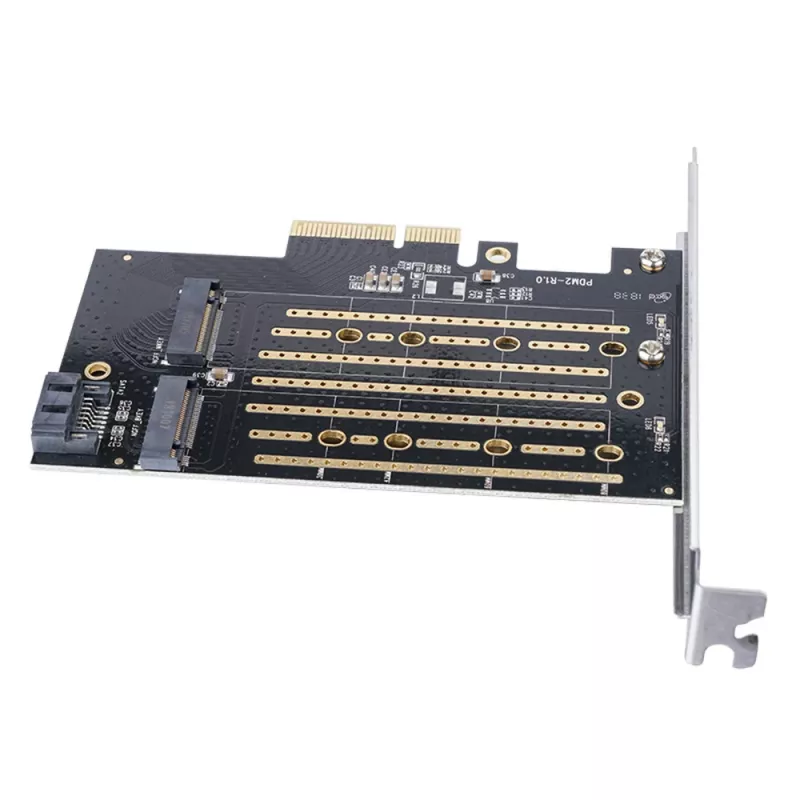

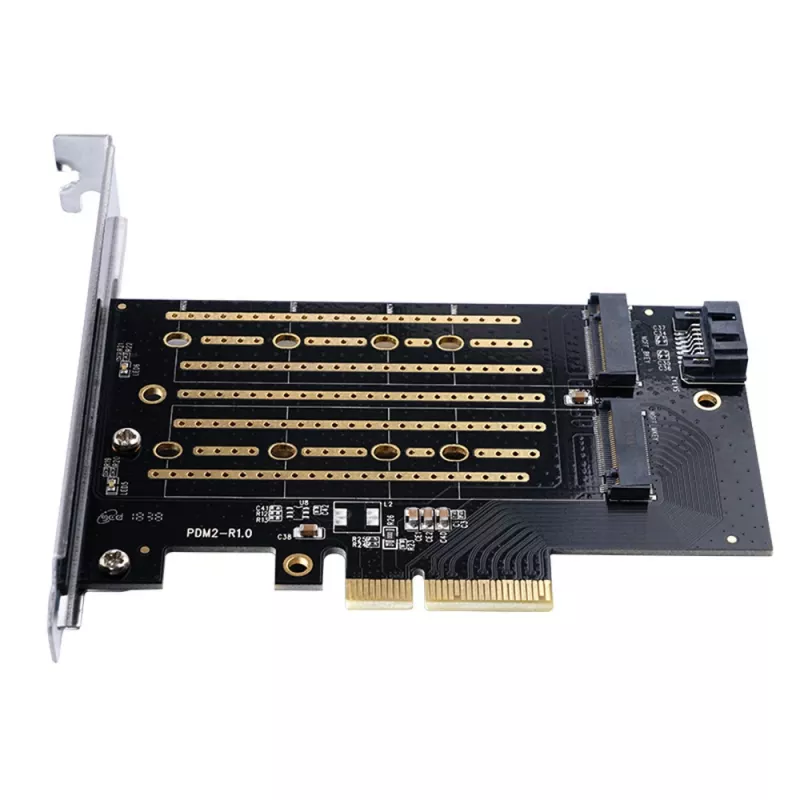

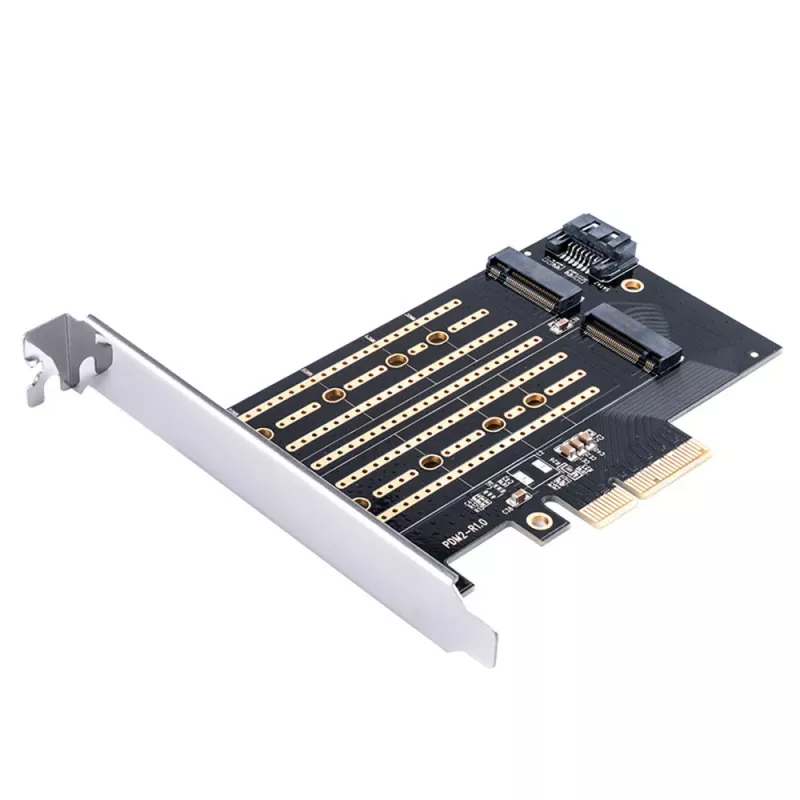

ORICO PDM2 PCIe 3.0 x4 M.2 NVMe & SATA SSD adapterkaart - zwart

The ORICO PDM2 is a high-performance PCIe 3.0 x4 adapter card that adds two M.2 SSD slots to your desktop computer. It supports both NVMe (PCIe) and SATA M.2 SSDs, offering flexible storage expansion for faster boot times, application loading, and data transfer. The card comes with a standard and low-profile bracket for easy installation in various PC cases.

Advantages

Dual M.2 slots support NVMe and SATA SSDs, maximizing storage performance and capacity. PCIe 3.0 x4 interface delivers up to 32 Gbps for NVMe drives. Plug-and-play installation with no driver required on Windows, macOS, and Linux. Includes both standard and low-profile brackets for versatile mounting.

Suitable for

• Desktop PC users needing additional M.2 SSD slots
• Gamers and professionals requiring high-speed NVMe storage
• Users upgrading from SATA to NVMe SSDs
• Building compact systems with low-profile bracket

Key specifications

• Host Interface: PCI Express 3.0 x4
• M.2 Interface: 1x M.2 M-Key (NVMe), 1x M.2 B-Key (SATA)
• Supported M.2 SSD Protocols: NVMe (PCIe-based), SATA (SATA-based)
• Supported M.2 SSD Form Factors: 2230, 2242, 2260, 2280
• Max NVMe Transfer Speed: Up to 32 Gbps (PCIe 3.0 x4 theoretical)
• Max SATA Transfer Speed: Up to 6 Gbps (SATA 3.0 theoretical)
• PCIe Slot Compatibility: PCIe x4, x8, x16 slots
• External Power Requirement: 1x SATA Power Connector (for M.2 SATA SSD)
• Operating System Compatibility: Windows, macOS, Linux (driver-free)
• LED Indicator: Yes (Power/Activity)
• Bracket Type: Standard and Low-Profile included
• Material: PCB, Metal Bracket
• Color: Black
• Boot Support: Yes (BIOS/UEFI dependent)
• Installation: Plug & Play
• Number of M.2 Slots: 2

Recommendations

For optimal performance, use with a PCIe 3.0 x4 or higher slot. Ensure your motherboard supports NVMe boot if using as a boot drive. The SATA power connector is required only when using SATA M.2 SSDs.
