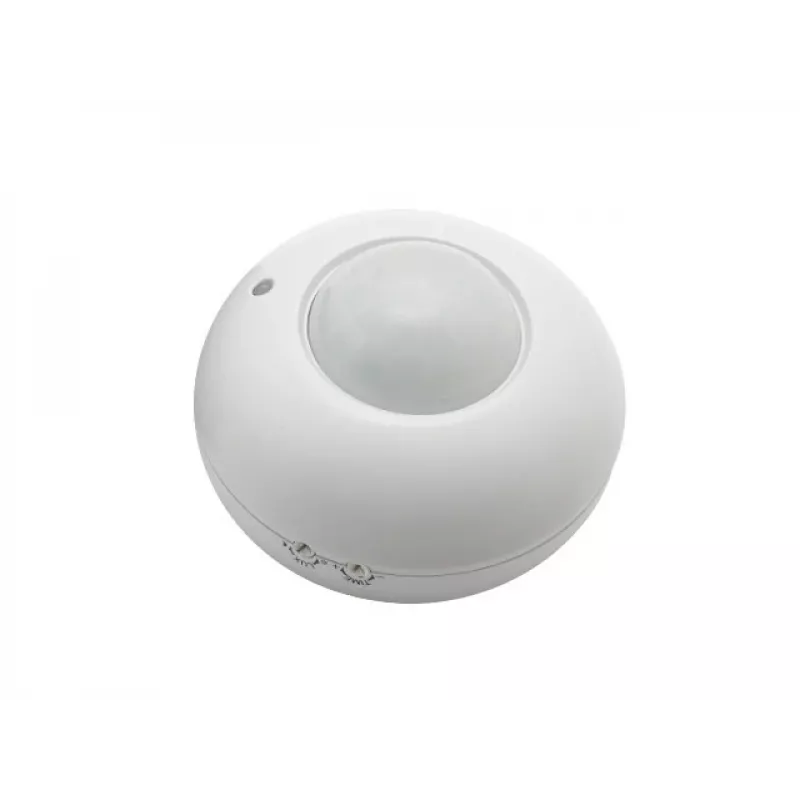

ORNO OR-CR-203/W witte PIR-bewegingsmelder, 160°, 9m, 230V, inbouwmontage

The ORNO OR-CR-203/W is a high-quality passive infrared (PIR) motion sensor designed for reliable indoor presence detection. With a wide 160° detection angle and a maximum range of 9 meters (at <24°C), it is ideal for automatic lighting control in residential and commercial spaces. The sensor features adjustable light sensitivity (3-2000 lux) and time delay (10 seconds to 7 minutes), allowing flexible customization. Its flush-mounted design in white blends seamlessly with any wall.

Advantages

Energy-saving automatic lighting control; easy installation and adjustment; reliable detection even in challenging conditions; modern, discreet design.

Suitable for

• Corridors, staircases, hallways
• Bathrooms, toilets, utility rooms
• Offices, meeting rooms, storage areas
• Garages, basements, and indoor passages

Key specifications

• Sensor type: PIR (Passive Infrared)
• Detection angle: 160°
• Detection range: max. 9m (at <24°C)
• Power supply: 230V AC, 50Hz
• Max incandescent load: 1200W
• Max LED/fluorescent load: 300W
• Adjustable light sensitivity: 3-2000 lux
• Adjustable time delay: 10s ±3s to 7min ±2min
• Installation height: 0.5m - 3.5m
• IP rating: IP20
• Colour: White
• Mounting type: Flush-mounted (wall)
• Operating temperature: -20°C to +40°C
• Operating humidity: <93% RH (non-condensing)
• Standby power consumption: 0.45W

Recommendations

For optimal performance, install the sensor at a height of 2-2.5m and avoid direct exposure to heat sources or strong air currents. Ensure the detection area is free of obstacles. Suitable for indoor use only.
