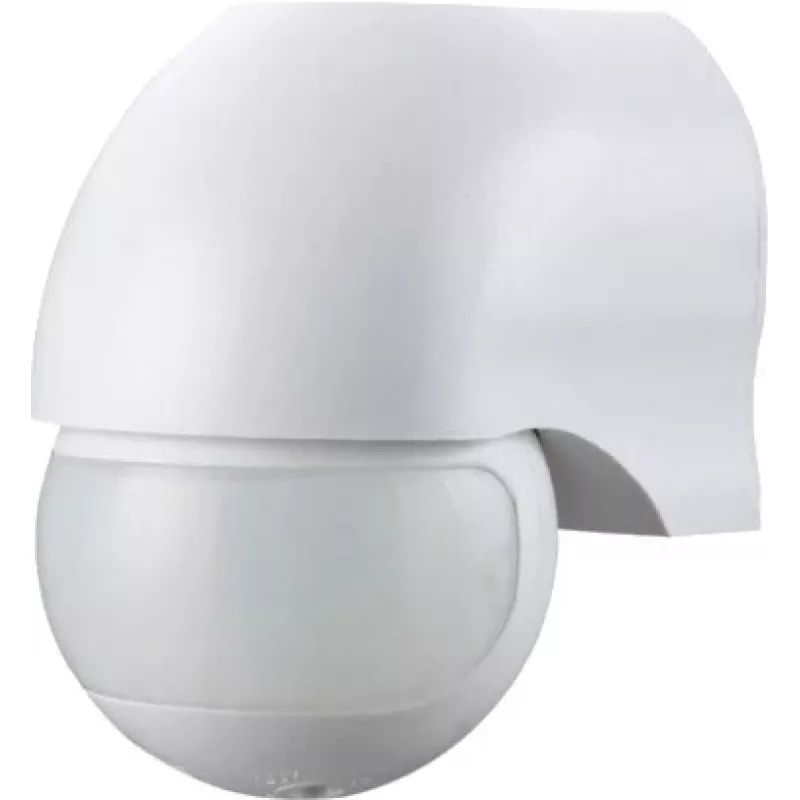

ORNO OR-CR-204/W PIR-bewegingsmelder wit

The ORNO OR-CR-204/W is a high-quality passive infrared (PIR) motion sensor designed for reliable automatic lighting control in residential and commercial environments. With a 180° detection angle and a maximum range of 12 meters, it ensures comprehensive coverage. The sensor is surface-mounted and wall-mounted, making it easy to install at heights between 1.8 m and 2.5 m. Its IP44 rating provides protection against splashing water, suitable for indoor and outdoor use.

Advantages

Energy-efficient standby power consumption of only 0.45 W. Adjustable time delay from 10 seconds to 15 minutes and light sensitivity from <3 to 2000 LUX, allowing customization to specific needs. Supports incandescent loads up to 1200 W and LED/fluorescent loads up to 300 W.

Suitable for

• Corridors, staircases, and hallways
• Garages and basements
• Outdoor areas such as patios and gardens (under cover)
• Office and commercial spaces

Key specifications

• Sensor type: PIR (Passive Infrared)
• Detection angle: 180°
• Detection range: Max 12 m (<24°C)
• Power supply: 230V AC, 50Hz
• Max load (incandescent): 1200 W
• Max load (LED/fluorescent): 300 W
• Time delay: 10 s (±3s) to 15 min (±2min)
• Light sensitivity: <3-2000 LUX
• Installation height: 1.8 m - 2.5 m
• IP rating: IP44
• Operating temperature: -20°C to +40°C
• Standby power: 0.45 W
• Mounting: Surface-mounted, wall-mounted
• Colour: White
• Material: Plastic (PC)

Recommendations

For optimal performance, install the sensor at the recommended height and avoid placing it near heat sources or air conditioning vents. Ensure the detection area is free from obstructions.
