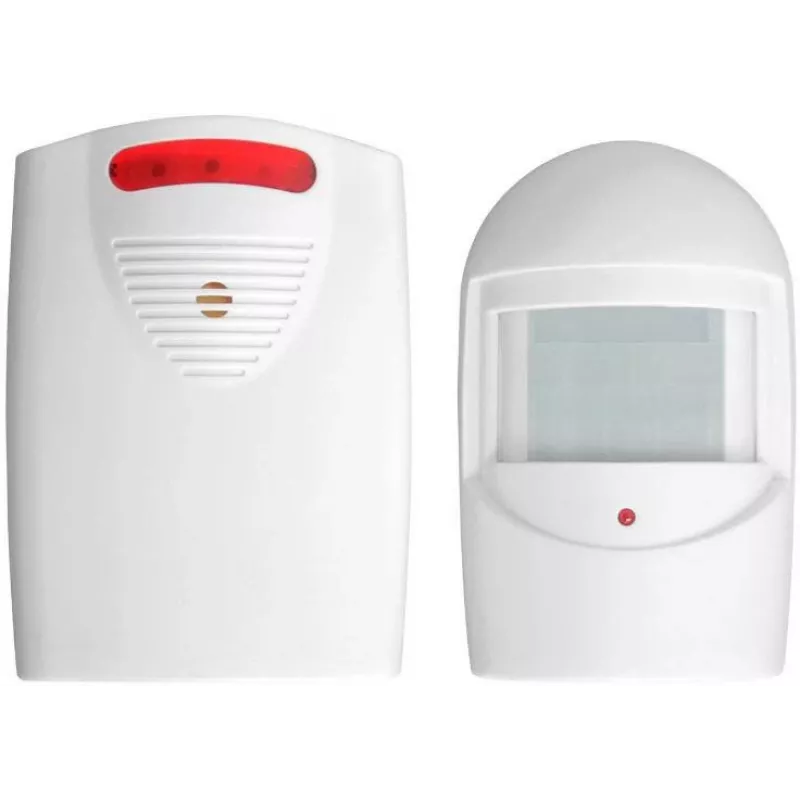

ORNO OR-MA-717 draadloze deurbel-set met PIR-bewegingssensor, 433 MHz, 80 m bereik, 32 melodieën, IP44 sensor, wit

The ORNO OR-MA-717 is a wireless entry chime kit designed to alert you when someone approaches your door or entryway. It consists of a PIR motion sensor and a receiver chime, providing a reliable and easy-to-install solution for home or office security. The sensor detects movement up to 8 meters away with a 100° horizontal and 80° vertical detection angle, and wirelessly transmits the signal to the receiver at 433 MHz with an open-air range of up to 80 meters.

Advantages

Wireless installation eliminates the need for complex wiring, making it ideal for renters or quick setups. The sensor is weather-resistant with an IP44 rating, suitable for outdoor use. With 32 selectable melodies and 3 volume levels, you can customize the chime to your preference. The low battery indicator on the sensor ensures you are always aware when batteries need replacement.

Suitable for

• Home entryways and front doors
• Office reception areas
• Shops and small businesses
• Garages and workshops

Key specifications

• Product Type: Wireless Entry Chime Kit
• Detection Technology: PIR Motion Sensor
• Wireless Frequency: 433 MHz
• Wireless Range (Open Area): Up to 80 m
• Sensor Power Supply: 3 x 1.5V AAA Batteries (not included)
• Receiver Power Supply: 3 x 1.5V AA Batteries or 6V DC Adapter (not included)
• Sensor Detection Angle (Horizontal): 100°
• Sensor Detection Angle (Vertical): 80°
• Sensor Detection Range: Up to 8 m
• Sound Level: 85 dB
• Number of Melodies: 32
• Volume Control: 3 Levels
• Sensor IP Rating: IP44
• Receiver IP Rating: IP20
• Sensor Operating Temperature: -20°C to +45°C
• Receiver Operating Temperature: 0°C to +45°C
• Sensor Dimensions (L x W x H): 90 x 60 x 40 mm
• Receiver Dimensions (L x W x H): 90 x 60 x 30 mm
• Installation Type: Wall-mounted / Freestanding
• Low Battery Indicator: Yes (LED)

Recommendations

For optimal performance, install the sensor at a height of 1.5-2 meters and avoid direct sunlight or heat sources. Use high-quality alkaline batteries for longer life. The receiver can be placed indoors on a flat surface or mounted on a wall using the included screws.
