Overspanningsbeveiliging Bachmann 906.306 3 AC-uitgangen 250 V zwart grijs rood

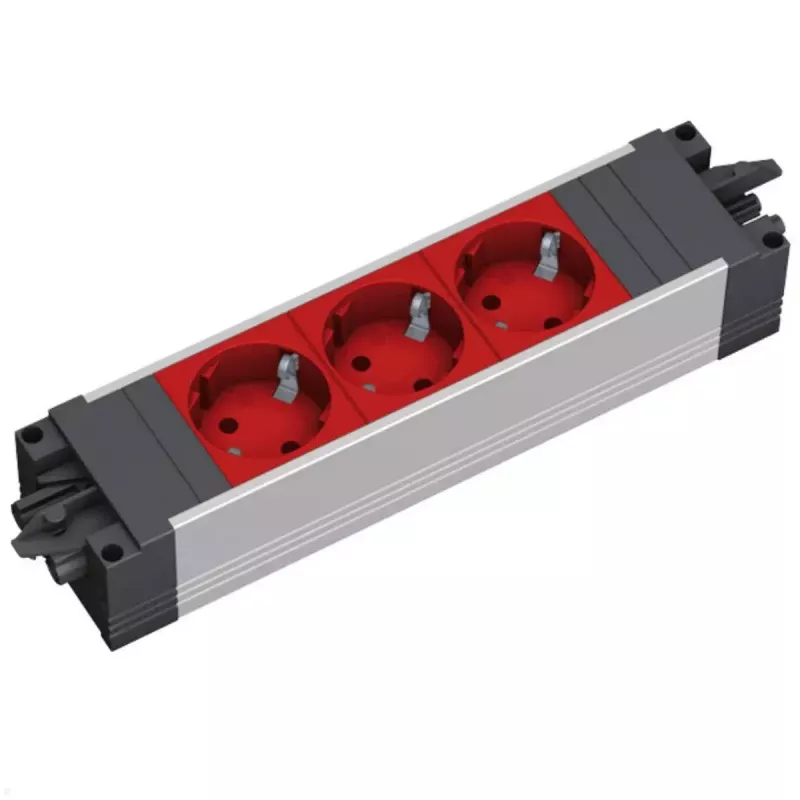

The Bachmann Step Alu triple power strip (906.306) is an indoor power distribution unit with an aluminum housing and three safety sockets. Sockets are tilted by 35° to simplify connection of bulky plug-in power supplies. The strip features a GST18 input plug and a GST18 output socket, and its increased protection against accidental contact reduces the risk of electric shock. With a nominal input voltage of 250 V, compact dimensions (52 mm × 230 mm) and IP20 protection, the unit is suitable for offices, workplaces and living areas where reliable power distribution is required.

Advantages

The aluminum housing provides mechanical durability and a compact, lightweight design. Tilted sockets allow easier connection of large adapters without blocking adjacent outlets. GST18 inlet and outlet enable secure daisy-chaining and standardized connection in professional installations. IP20-rated protection and safety sockets reduce the risk of accidental contact.

Suitable for

• Office desks and meeting rooms
• Workplaces and workshops with plug-in power supplies
• Living rooms, kitchens and home offices
• Temporary or permanent installations requiring GST18 connections

Key specifications

• Manufacturer: Bachmann
• Model / MPN: 906.306
• Outlets: 3 safety AC sockets (Type F compatible)
• Nominal input voltage: 250 V
• Housing: Aluminum
• Protection rating: IP20
• Dimensions (W × D): 52 mm × 230 mm

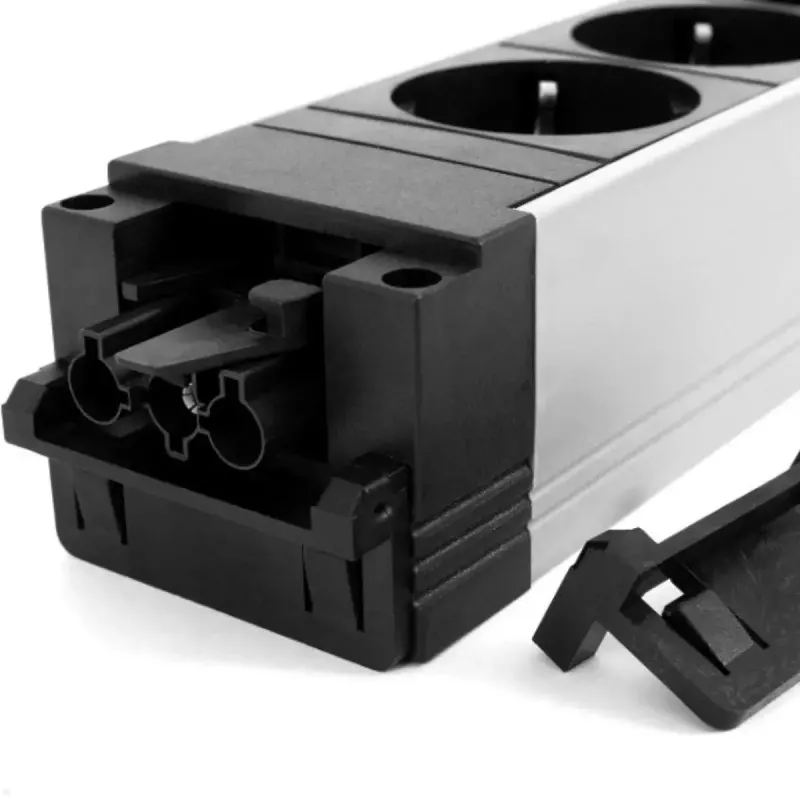

• Power connectors: GST18 plug (input) and GST18 socket (output)
• EAN: 4057298152344

How to use

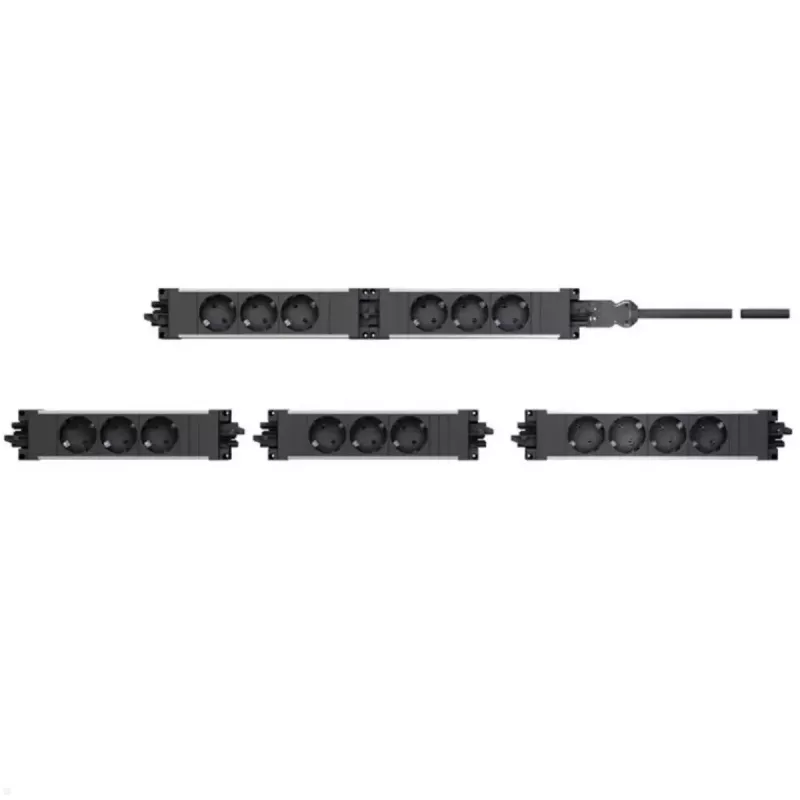

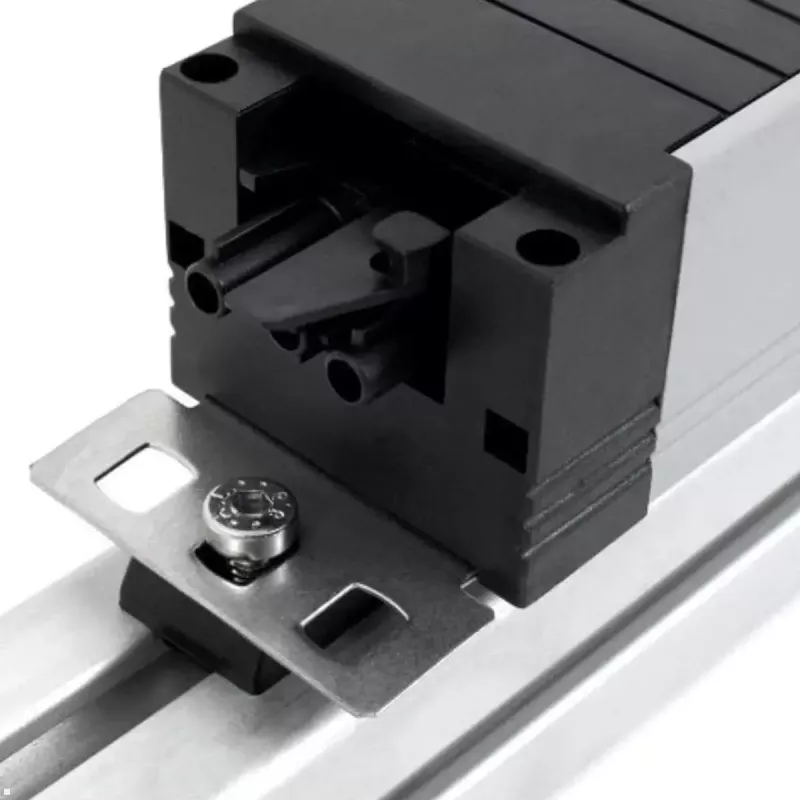

Mount the power strip where required — it can be fixed to compatible T-slot or stand profiles from various suppliers or placed on a work surface. Connect the GST18 input plug to an appropriate power source, then plug devices into the three tilted safety sockets. Use the GST18 output socket to daisy-chain additional modules or strips as needed. Ensure the unit is used indoors and protected from moisture and direct water exposure due to its IP20 rating.

Recommendations

Do not exceed the rated voltage or connect devices that together draw more current than the circuit allows. Avoid using the strip in damp or outdoor environments. Periodically inspect connectors and housing for damage and replace the unit if protective features are compromised.
