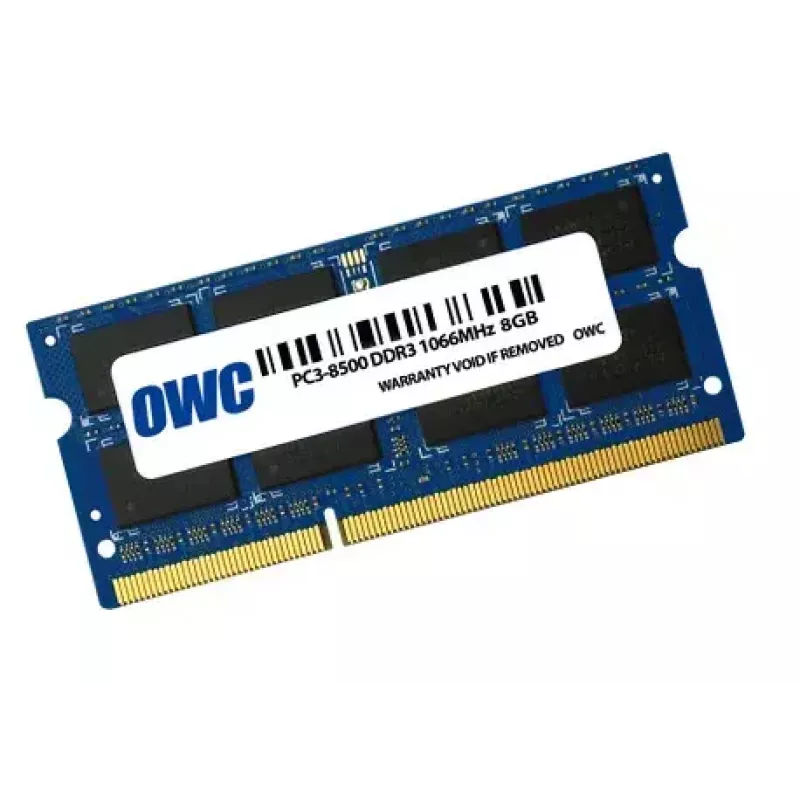

OWC DDR3 - module - 8 GB - SO DIMM 204-PIN - 1066 MHz / PC3-8500 - CL7 - 1.5 V - unbuffered - non-ECC - voor Apple Mac mini (medio 2010)

The OWC 8GB DDR3 1066MHz SO-DIMM is an 8GB (8192MB) laptop memory module using DDR3 SDRAM technology. It conforms to the 204-pin SO-DIMM form factor and operates at DDR3-1066 (PC3-8500) speed with a CAS latency of 7. The module requires 1.5V and is non-ECC, dual-rank, designed for operation in temperatures from 0°C to +85°C. It is RoHS compliant and intended to increase a laptop's available RAM for smoother multitasking and improved system responsiveness.

Advantages

The module provides a straightforward memory capacity upgrade for compatible laptops, offering an 8GB increase without requiring system changes. With DDR3-1066 speed and CL7 timing, it balances performance and compatibility for systems that accept PC3-8500 SO-DIMM modules. Dual-rank configuration improves memory throughput on supported platforms while maintaining non-ECC simplicity and standard 1.5V power requirements.

Suitable for

• Upgrading laptop RAM that uses 204-pin DDR3 SO-DIMM modules
• Replacing a single faulty SO-DIMM module in compatible laptops
• Systems that accept DDR3-1066 (PC3-8500) memory
• Users who need 8GB capacity for everyday multitasking and office applications

Key specifications

• Technology: DDR3 SDRAM
• Capacity: 8GB (8192MB)
• Form factor: 204-pin SO-DIMM
• Data rate / Speed: DDR3-1066 / PC3-8500
• CAS Latency: CL7
• Voltage: 1.5V
• ECC: Non-ECC
• Module ranks: Dual Rank
• Operating temperature: 0°C to +85°C
• RoHS: Yes

How to use

Power off the laptop and disconnect all power sources including the battery if removable. Open the memory compartment or access panel according to the laptop manufacturer’s instructions. Align the 204-pin SO-DIMM module with the slot notch and insert at an angle, then press down until the side clips engage and secure the module. Reassemble the laptop, reconnect power, and boot the system. Confirm the new memory is recognized in the system BIOS/UEFI or operating system.

Recommendations

Install this OWC 8GB DDR3 1066MHz module only in systems that explicitly support DDR3-1066 (PC3-8500) SO-DIMM memory and the 204-pin form factor. Check the laptop manufacturer’s documentation for maximum supported memory per slot and compatibility notes. Handle the module by its edges and avoid touching contacts; observe electrostatic discharge (ESD) precautions during installation.
