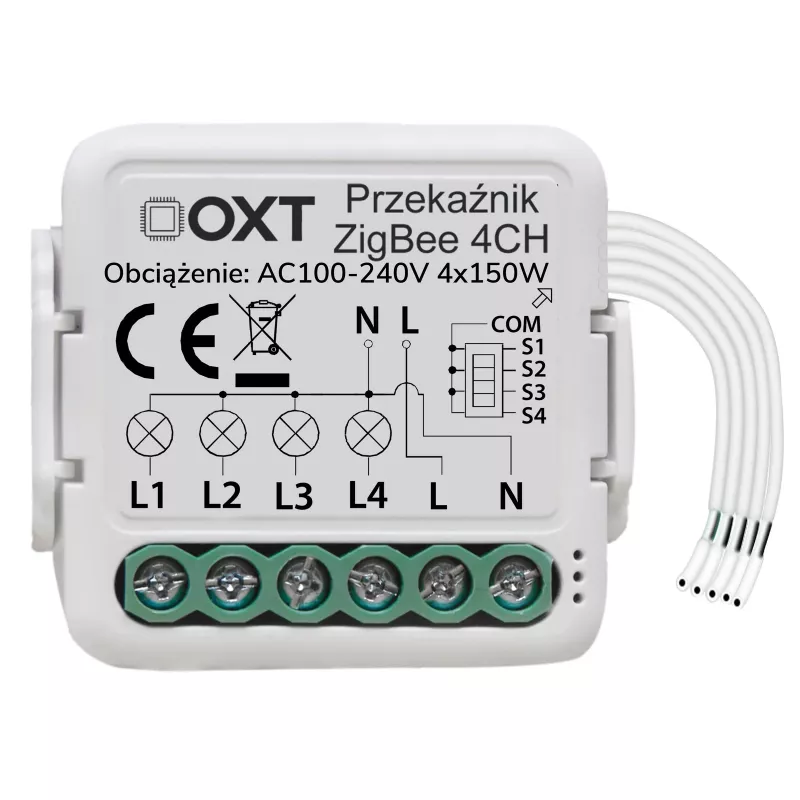

OXT T264 mini slimme relaismodule 4-kanaals ZigBee 3.0 Tuya

The OXT T264 is a compact 4-channel smart relay module designed for in-wall or junction box installation. It uses ZigBee 3.0 wireless protocol and is fully compatible with the Tuya Smart Life ecosystem, enabling remote control, scheduling, and voice commands via Amazon Alexa or Google Assistant (requires a ZigBee gateway).

Advantages

Control up to 4 independent circuits remotely from anywhere using the Tuya Smart Life app. Create scenes and schedules to automate lighting, appliances, or other electrical loads. The module features power-off memory, ensuring your settings are retained after a power outage. Its compact size fits easily into standard junction boxes, making it ideal for retrofitting smart control into existing installations.

Suitable for

• Smart home automation projects
• Remote control of lighting, fans, pumps, and other resistive loads
• Integration with Tuya-compatible ZigBee gateways
• DIY and professional electricians

Key specifications

• Product Type: Smart Relay Module
• Number of Channels: 4
• Wireless Protocol: ZigBee 3.0
• Smart Home Platform: Tuya Smart Life
• Input Voltage: AC 85-250V
• Max Current per Channel: 10A
• Max Load per Channel: 2200W (Resistive)
• Total Max Load: 3680W (16A)
• Operating Temperature: -20°C to 70°C
• Operating Humidity: 0% - 95% RH (non-condensing)

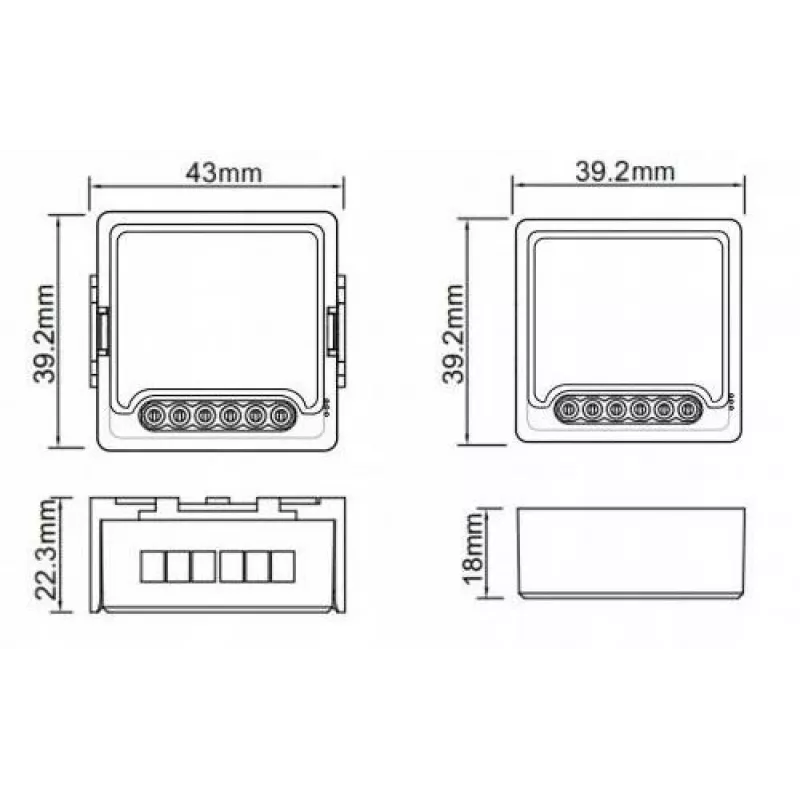

• Installation Type: In-wall / Junction Box
• Control Method: App Control, Voice Control (via gateway & assistant)
• Features: Remote Control, Scheduling, Timer, Scene Automation, Power-off Memory
• Material: PC V0 Fire-retardant
• Requires Gateway: Yes (ZigBee Gateway)
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair this module with a compatible ZigBee 3.0 gateway such as the Tuya Smart Hub. Ensure the total load does not exceed 3680W (16A) and each channel does not exceed 10A. Professional installation is recommended.
