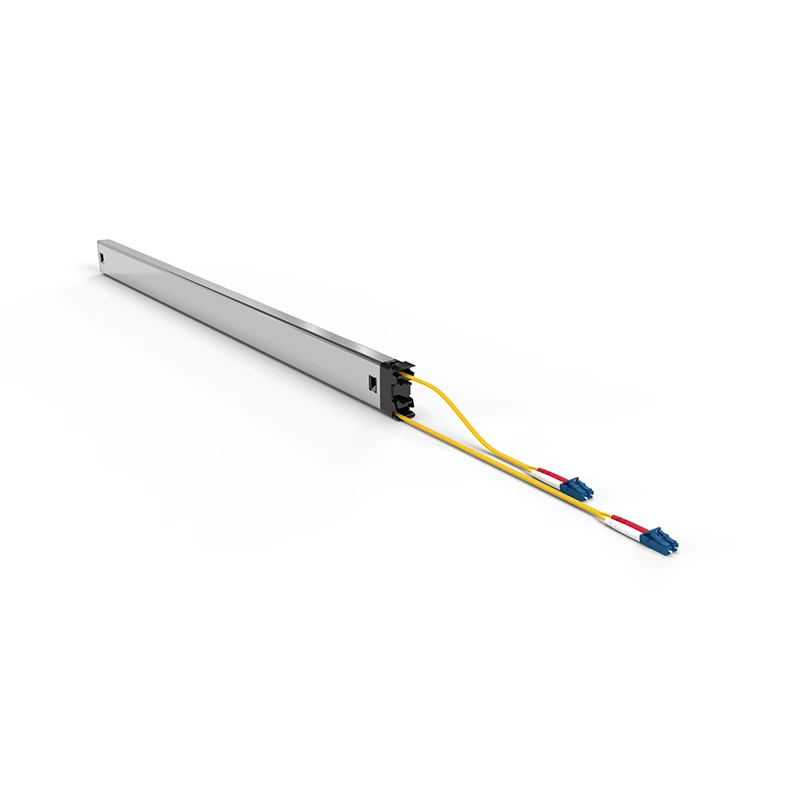

PATCHBOX Plus+ Long Range glasvezelcassette C60SMAOS21131Y, OS2 LC-LC

The PATCHBOX Plus+ Long Range Fibre Optic Cassette C60SMAOS21131Y is a single-mode OS2 fibre optic cassette with LC connectors on both ends and a 2.5 m cable length. It is part of the PATCHBOX cabling system for network cabinets, providing retractable fibre optic cables for the required length.

Key features

• Retractable fibre optic cable for perfect length
• Cable stopper for precise length adjustment
• Labelling option on each cassette
• Simple replacement of PATCHBOX cassettes
• Full duplex
• LSZH jacket material
• Ceramic connector material
• RoHS compliant
• Corning fibres

Specifications

• Brand: Patchbox
• MPN: C60SMAOS21131Y
• Ethernet LAN: Yes
• Cable length: 2.5 m
• Cable type: OFC
• Fibre type: OS2
• Connector 1: LC
• Connector 2: LC
• Connector 1 gender: Male
• Connector 2 gender: Male
• Polish type: PC
• Product colour: Yellow
• Hole diameter: 9 µm
• Cladding diameter: 125 µm
• Cable mode structure: Single-mode
• Supported wavelengths: 1310, 1550 nm
• Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
• Data transfer rate: 100 Gbit/s
• Insertion loss: 0.1 dB
• Jacket material: Low smoke halogen-free (LSZH)
• Connector material: Ceramic
• Certification: CE
• Operating temperature: 10 - 45 °C
• Material: Polyoxymethylene (POM), Steel
• Quantity per pack: 1 piece(s)
