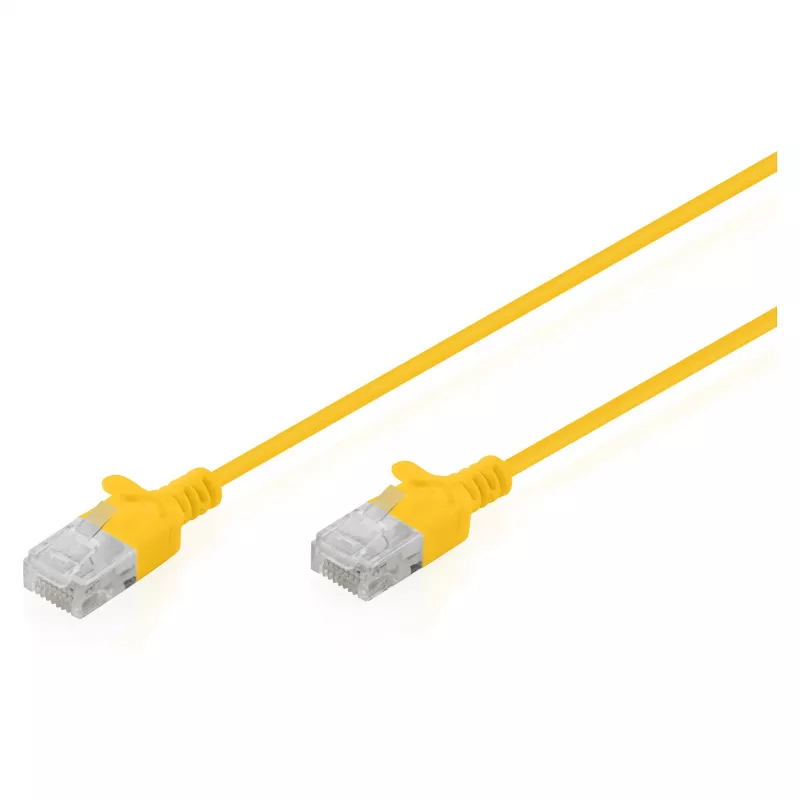

Patchkabel CAT 6 U-UTP slank 3 m, DIGITUS, geel

DIGITUS CAT 6 U-UTP Slim patch cable, 3 m, yellow, provides CAT6 performance for Gigabit Ethernet connections in compact installations. The unshielded twisted pair (U-UTP) construction and stranded AWG 32/7 copper conductors deliver reliable data transmission up to 1 Gbit/s and a frequency of 250 MHz. The slim outer diameter of approximately 2.7 mm and flexible LSZH jacket make this cable suitable for short links between switches, patch panels and wall outlets while reducing cable bulk in racks and offices. Each cable features a molded anti-kink sleeve and locking lever protection on the RJ45 plug to improve strain relief and prevent damage during repeated connections.

Advantages

The slim design reduces space requirements in high-density cabling environments and simplifies routing in confined channels. LSZH outer material limits smoke and corrosive gas emission in case of fire. The cable supports PoE and PoE+ applications thanks to pure copper conductors and meets international structured cabling standards for CAT6 performance. Durable construction with a specified service life for mating cycles and standardized PIN assignment ensures predictable behaviour in structured networks.

Suitable for

• Short horizontal patching between switches, patch panels and wall outlets
• Office and home network connections where space-saving cable routing is required
• High-density rack and cabinet environments with many parallel cables
• Applications using PoE or PoE+ for IP phones, cameras or access points

Key specifications

• Category: CAT 6, U-UTP (unshielded twisted pair)
• Length: 3 m
• Conductor: stranded bare copper AWG 32/7
• Nominal outer diameter: 2.7 mm ± 0.15 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Transmission speed: up to 1 Gbit/s
• Frequency: up to 250 MHz
• Insulation: HD-PE (high-density polyethylene)

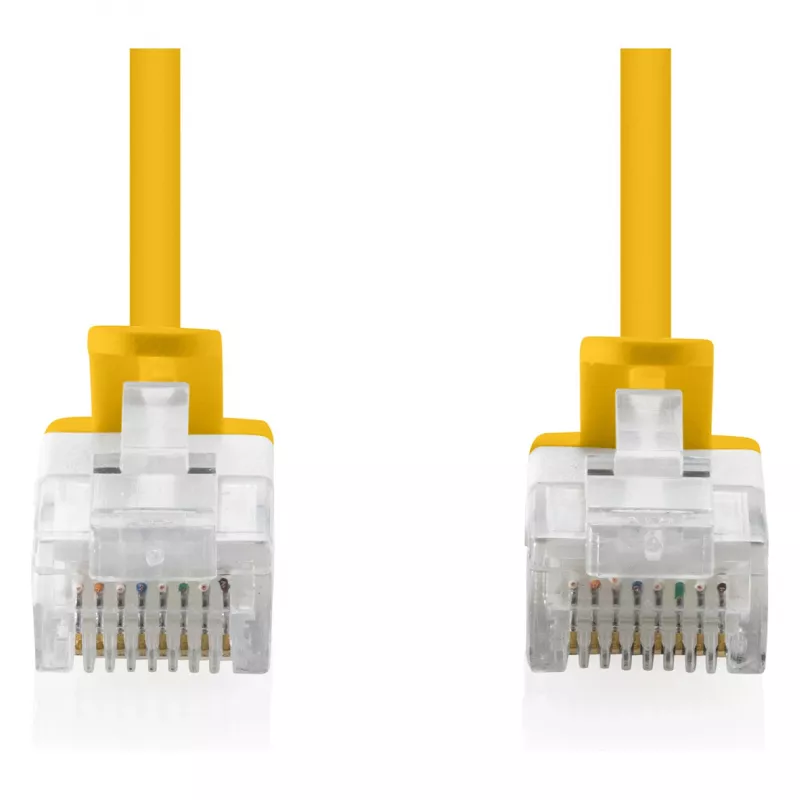

• Plug type: RJ45 with molded anti-kink sleeve and locking lever protection
• Bending radius: 15 × outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame retardancy and smoke emission: IEC 60332-1, IEC 61034
• Typical protocol support: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life: 750 mating cycles

How to use

Connect one RJ45 plug to the network device (switch, patch panel or outlet) and the other plug to the target device. Ensure both connectors are fully inserted and that the locking lever engages to provide secure contact. Route the cable following the required bending radius and avoid tight kinks or sharp edges. For best performance, keep the cable length within recommended ranges for structured cabling and avoid running parallel to high-voltage power lines that could introduce interference.

Recommendations

For reliable Gigabit performance, use this 3 m DIGITUS CAT 6 U-UTP Slim cable for short horizontal patching and high-density installations. Maintain the specified bending radius and limit mechanical stress on the RJ45 connector to prolong service life. When deploying PoE-powered devices, verify connector seating and power class compatibility.
