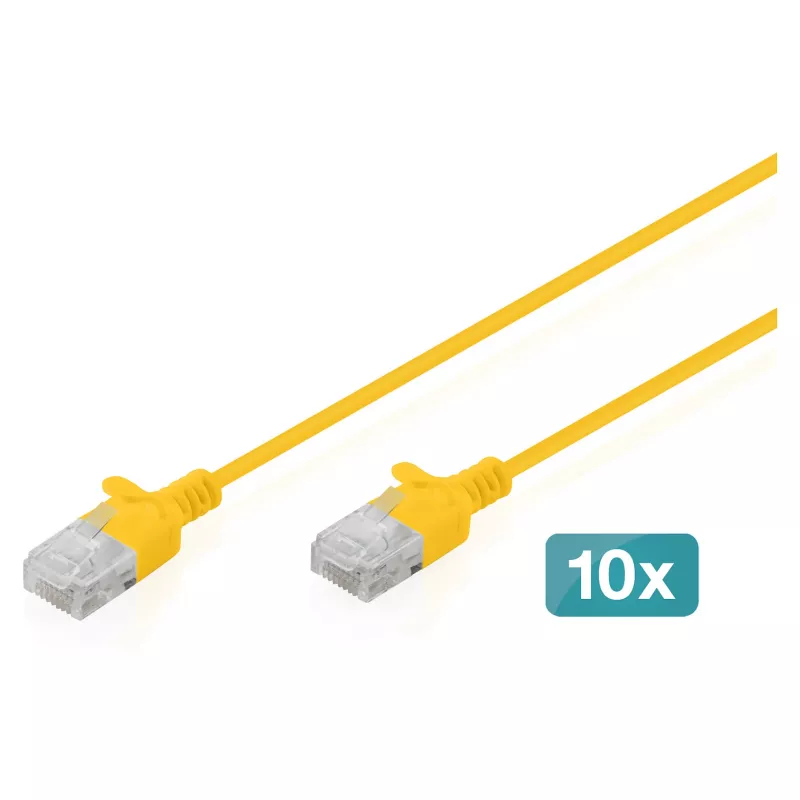

Patchkabel DIGITUS CAT 6 U-UTP slank, 2 m, geel, 10-pack

DIGITUS CAT 6 U-UTP Slim patch cable pack contains ten 2 m unshielded twisted-pair cables designed for fast Ethernet installations. Each slim-profile cable supports CAT6 signal performance up to 250 MHz and transmission speeds up to 1 Gbit/s, making the set suitable for network patching between switches, patch panels and workstations. The cables use stranded AWG 32/7 bare copper conductors, an RJ45 plug with molded strain relief and a slim outer diameter that simplifies routing in racks and confined spaces. The yellow color aids quick identification and organized cabling runs while the LSZH jacket reduces smoke and toxic gas emissions in case of fire.

Advantages

The slim design (approx. 2.7 mm total diameter) provides high flexibility and space-saving routing in high-density installations without compromising CAT6 performance. Compliance with ISO/IEC 11801 and DIN EN 50173 standards ensures predictable electrical characteristics and interoperability. Stranded copper conductors and a molded anti-kink sleeve increase durability for frequent re-patching, and the cables support PoE and PoE+ applications due to pure copper conductors.

Suitable for

• Office and corporate local area networks (patching between switches and workstations)
• Home networking and multimedia systems
• Patch panels and high-density cabling environments
• PoE/PoE+ powered devices such as IP phones, cameras and access points

Key specifications

• Cable category: CAT 6 U-UTP (unshielded twisted pair)
• Length: 2 m per cable (pack of 10)
• Conductor: stranded bare copper AWG 32/7
• Transmission frequency: up to 250 MHz
• Maximum transmission speed: up to 1 Gbit/s (1000BASE-T)
• Outer diameter: approx. 2.7 mm ± 0.15 mm
• Insulation material: HD-PE (high-density polyethylene)
• Jacket material: LSZH (Low Smoke Zero Halogen)

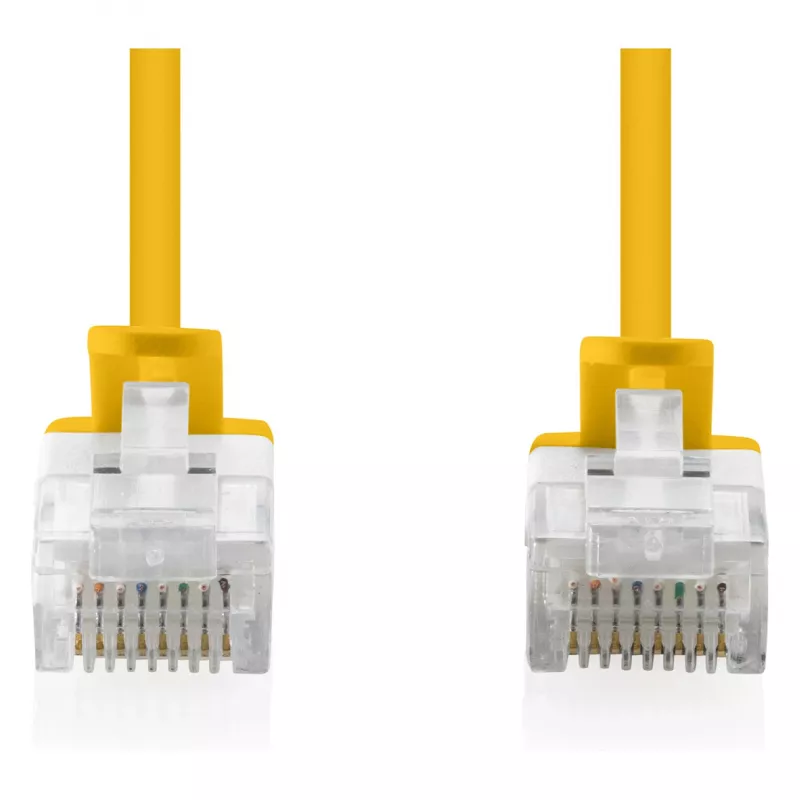

• Plug type: RJ45 with molded strain relief and locking lever protection
• Bending radius: 15 × outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke standards: IEC 60332-1; IEC 61034
• Typical applications: 10BASE-T, 100BASE-TX, 1000BASE-T
• Service life: approx. 750 mating cycles

How to use

Connect one end of a DIGITUS CAT 6 U-UTP Slim patch cable to the RJ45 port of your network device and the other end to the corresponding switch, patch panel or outlet. Ensure the locking tab clicks into place to secure the connection. Route the cable along cable trays or through cable management channels, taking advantage of the slim diameter to reduce congestion. Avoid sharp bends beyond the specified bending radius to maintain signal integrity.

Recommendations

For reliable network performance, maintain separation from strong electrical sources, avoid kinking the cable and observe the recommended bending radius. Use the yellow color to mark specific connection types or zones in racks and cabinets for easier identification during installation and maintenance.
