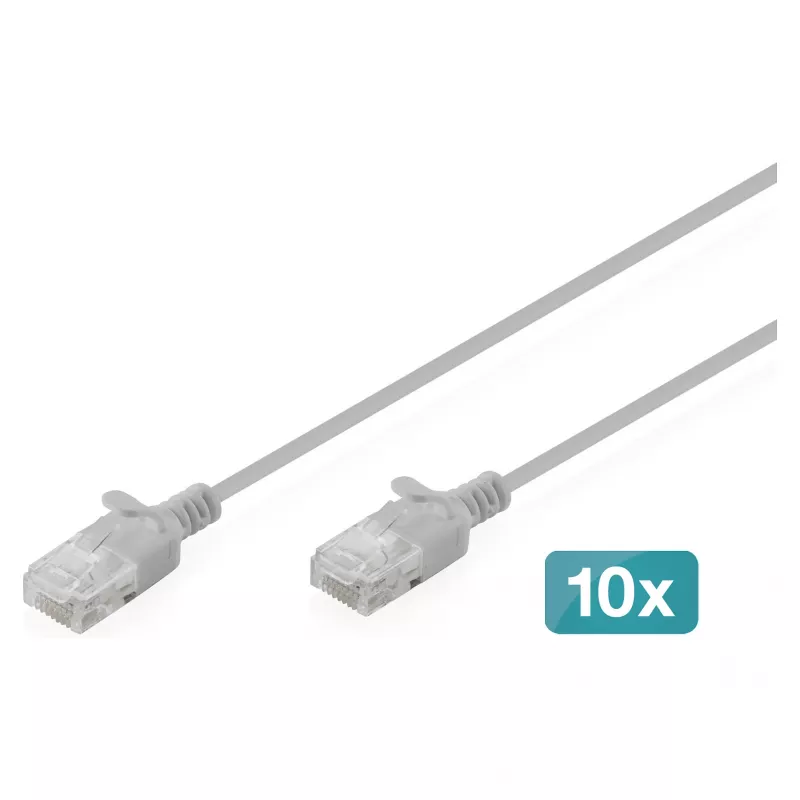

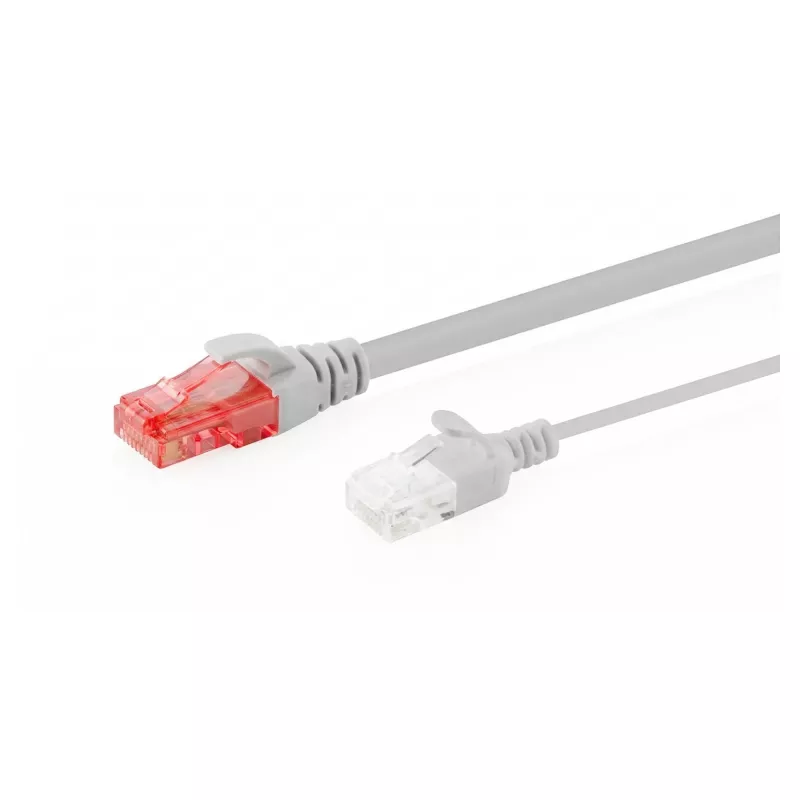

Patchkabel DIGITUS CAT 6 U-UTP slank, 3 m, grijs, 10-pack

DIGITUS CAT 6 U-UTP Slim patch cable pack contains ten 3 m gray unshielded twisted pair (U-UTP) cables designed for Gigabit Ethernet connections. The slim design with a total diameter of 2.7 mm reduces cable bulk and improves routing in confined spaces and high-density patch panels. The cables use stranded AWG 32/7 bare copper conductors, meet CAT6 transmission characteristics up to 250 MHz and comply with international cabling standards for structured networks.

Advantages

The slim outer diameter and flexible LSZH jacket enable neat installations in racks, under desks and through cable conduits while maintaining PoE and PoE+ compatibility thanks to pure copper conductors. Molded strain-relief sleeves and locking lever protection reduce the risk of connector damage and accidental disconnection. Compliance with ISO/IEC 11801 and related standards ensures predictable performance for 1 Gbit/s Ethernet links.

Suitable for

• Office LAN wiring and desktop connections
• Patch panels and high-density cabling environments
• Home network and multimedia connections
• Data centers and wiring closets requiring CAT6 performance

Key specifications

• Cable category: CAT 6 U-UTP (unshielded twisted pair)
• Length per cable: 3 m
• Pack quantity: 10 pieces
• Conductor type: stranded bare copper AWG 32/7

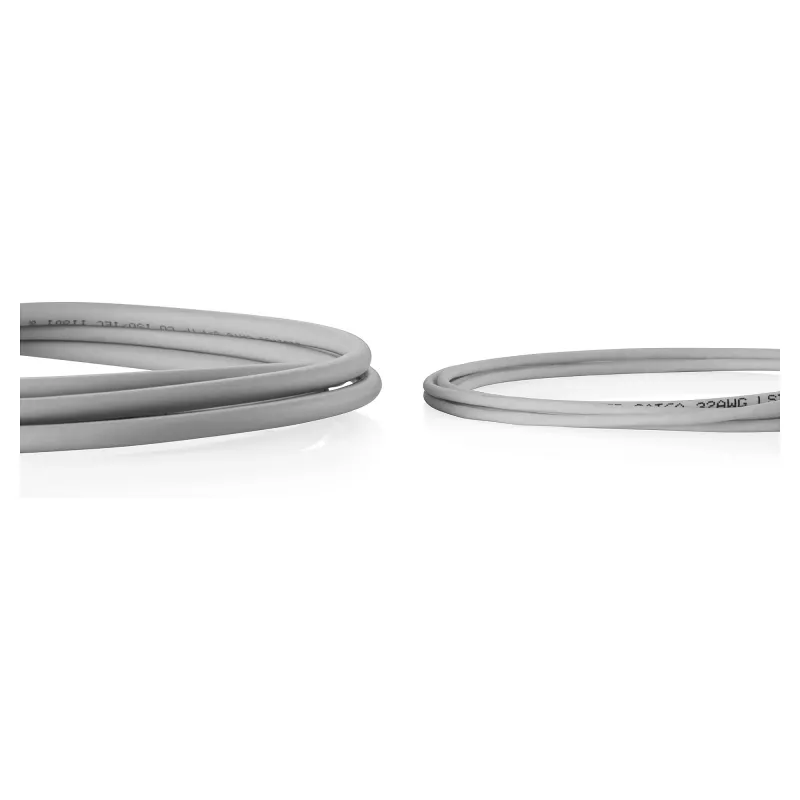

• Total diameter: 2.7 mm ± 0.15 mm
• Insulation: HD-PE (high-density polyethylene)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Rated frequency: up to 250 MHz
• Supported throughput: up to 1 Gbit/s (1000BASE-T)

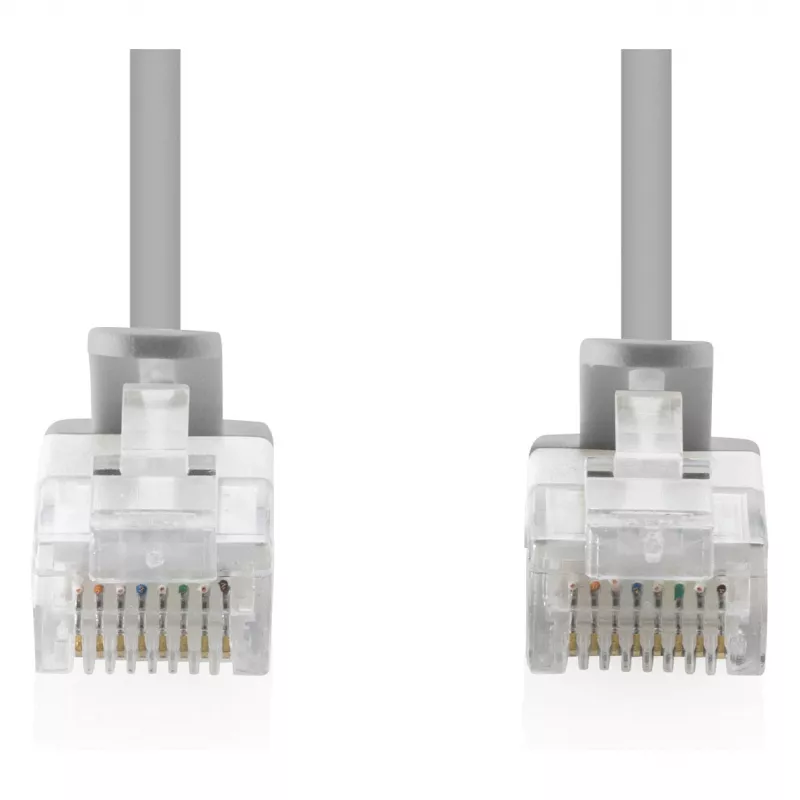

• Plug type: RJ45 with molded strain relief and locking lever protection
• Bending radius: 15 × outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke: IEC 60332-1 and IEC 61034
• Typical applications: 10BASE-T, 100BASE-TX, 1000BASE-T
• Service life: up to 750 mating cycles

How to use

Connect one RJ45 plug to the network device (switch, router, network card) and the other plug to the patch panel, wall outlet or endpoint device. Route the cable through cable management channels or behind furniture to take advantage of the slim diameter; avoid sharp bends and keep the bending radius greater than 15 times the cable diameter. Ensure connectors are fully inserted until the locking tab engages.

Recommendations

For reliable Gigabit performance, use these CAT 6 Slim patch cables for horizontal and patch cabling runs up to recommended distances for 1000BASE-T, keep connectors and ports free of dust, and avoid running parallel to high-voltage power lines to minimise electromagnetic interference.
