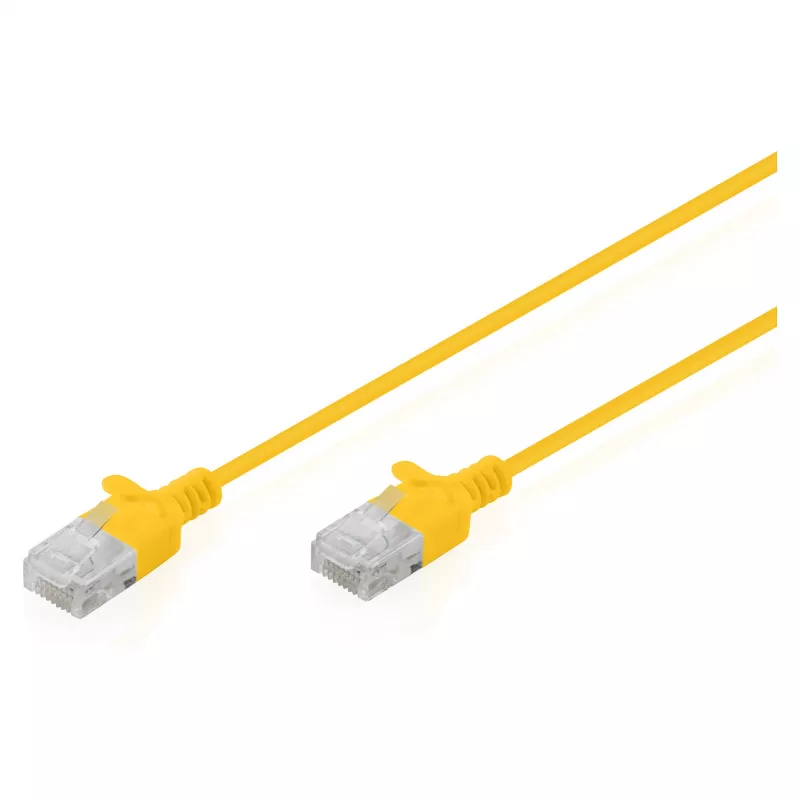

Patchkabel DIGITUS CAT6 U-UTP slank, 1,5 m, geel

DIGITUS CAT6 U-UTP Slim patch cable, 1.5 m, yellow is an unshielded twisted-pair Ethernet cable designed to meet CAT6 performance for Gigabit networks. With a slim outer diameter and flexible PVC jacket, the cable is intended for indoor use in environments with limited space such as patch panels, switch-to-switch or switch-to-wall outlet connections. The cable uses stranded copper conductors and an RJ45 plug with molded strain relief and locking lever protection to reduce the risk of connector damage during installation and operation.

Advantages

The slim 2.7 mm diameter and flexible jacket facilitate routing in high-density cabling areas and tight cable runs while maintaining performance up to 250 MHz and support for 1 Gbit/s transmission. The cable supports Power over Ethernet (PoE and PoE+) thanks to pure copper conductors. Conformance to international cabling standards ensures consistent electrical and mechanical behavior and a service life rated for repeated mating cycles.

Suitable for

• Short connections between switches, routers and wall outlets in offices and homes
• High-density patch panels and rack-mounted equipment with limited space
• Structured cabling installations requiring CAT6 performance and PoE support
• Desk-side or workstation network connections where a slim, unobtrusive cable is preferred

Key specifications

• Cable category: CAT6 U-UTP (unshielded twisted pair)
• Length: 1.5 m
• Outer diameter: approximately 2.7 mm ± 0.15 mm
• Conductor: stranded bare copper AWG 32/7
• Insulation material: HD-PE (high-density polyethylene)

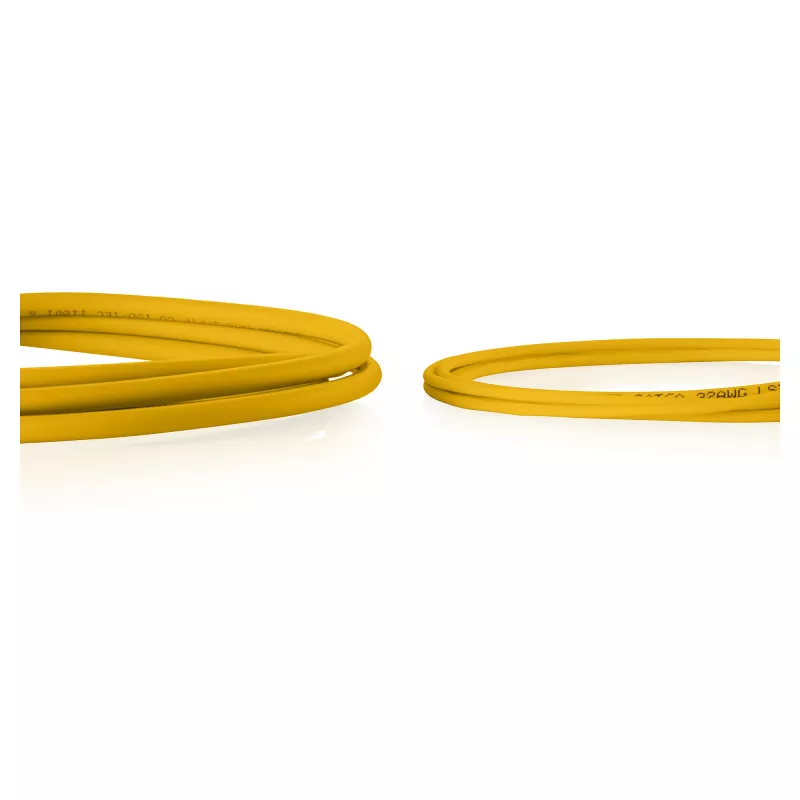

• Jacket material: flexible PVC for indoor use
• Transmission frequency: up to 250 MHz
• Maximum data rate: up to 1 Gbit/s (1000BASE-T)

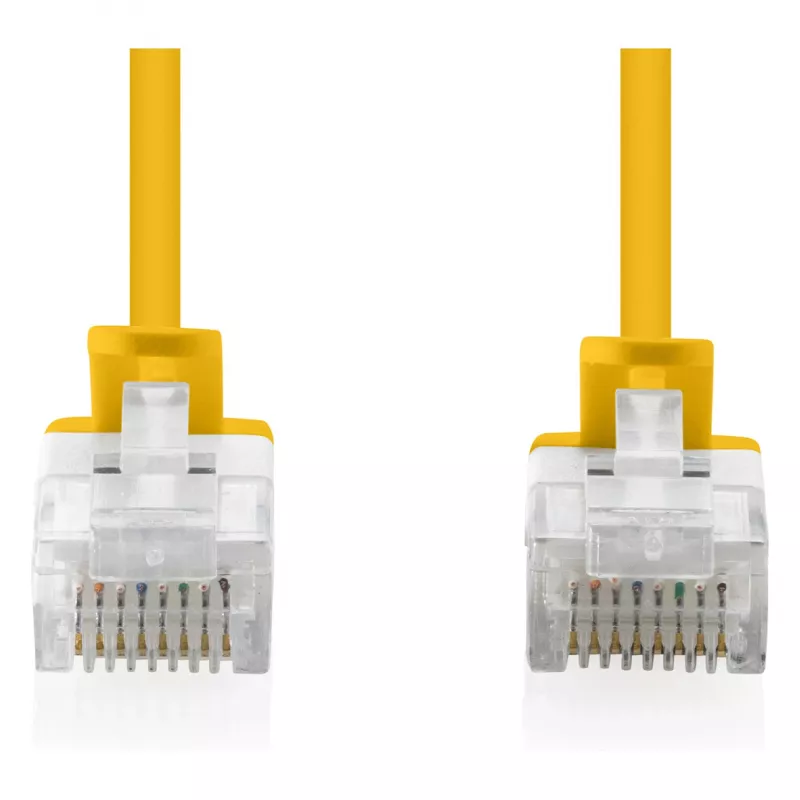

• Plug type: RJ45 with molded strain relief and locking lever protection
• Bending radius: recommended 15× outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke: IEC 60332-1 flame retardant; IEC 61034 smoke emission tested
• Typical supported Ethernet standards: 10BASE-T, 100BASE-TX, 1000BASE-T
• Estimated service life: rated for 750 mating cycles

How to use

Connect one RJ45 plug to the network device (switch, router or wall outlet) and the other to the corresponding port on the second device. Avoid sharp bends and maintain the recommended bending radius to preserve signal integrity. When routing the cable through patch panels or dense racks, use the cable's slim form factor to minimize space usage and strain on adjacent connectors. Verify link status on connected devices after installation to confirm proper connectivity.

Recommendations

For reliable performance, keep cable runs within recommended lengths for Ethernet links and avoid running the cable parallel and close to high-voltage power lines or strong electromagnetic sources. Use the slim DIGITUS CAT6 U-UTP cable for short, indoor connections where space is limited and PoE is required. Inspect connectors and strain reliefs periodically in high-usage environments to ensure continued mechanical and electrical integrity.
