Patchpaneel 1U Lanberg PPU5-9012-B

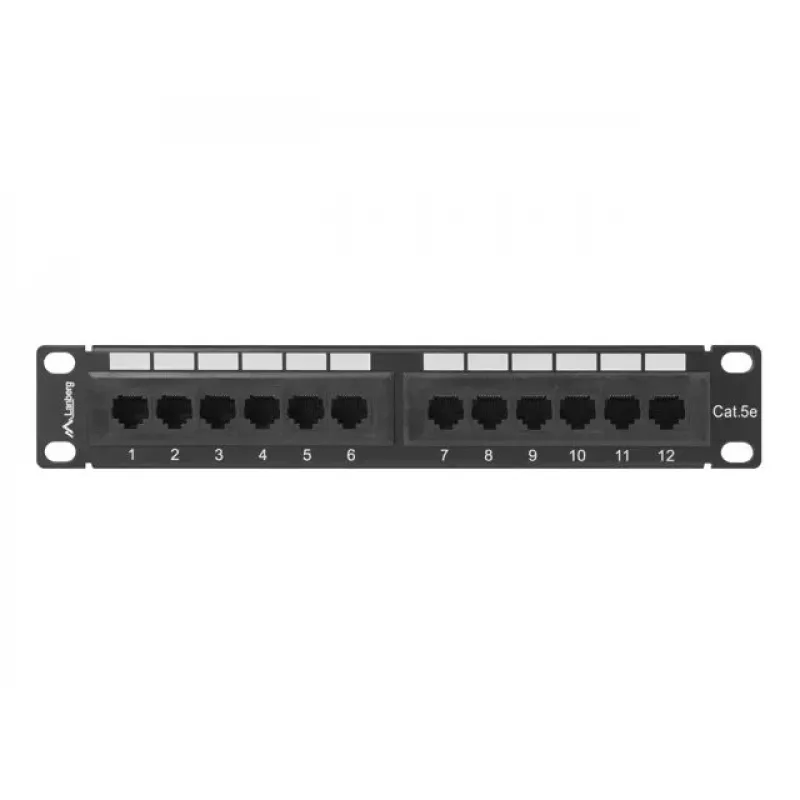

The Lanberg PPU5-9012-B is a 1U rack-mounted patch panel for organizing and terminating twisted-pair network cables in 10" rack cabinets. Made of durable metal and finished in black, it provides 12 unshielded RJ-45 ports compliant with Cat5/5e standards and uses IDC/LSA type connections for fast termination. Its compact dimensions (215 mm × 44.5 mm × 32.5 mm) make it suitable for installation in main and secondary distribution points of structured cabling in fast telecommunications systems.

Advantages

This patch panel offers a compact 1U form factor for efficient rack space usage, reliable metal construction for lasting installation, and 12 Cat5e-compatible RJ-45 ports to support common Ethernet cabling. IDC/LSA connectors enable quick and straightforward cable termination, reducing installation time and ensuring consistent contact quality.

Suitable for

• Rack-mounted network patching in server rooms and data closets
• Main and secondary distribution points in structured cabling
• Termination and organization of Cat5/Cat5e twisted-pair cables

Key specifications

• Model: Lanberg PPU5-9012-B
• Rack height: 1U
• Ports: 12 × RJ-45 (unshielded), Cat5/5e
• Connector type: IDC/LSA
• Material: Metal
• Colour: Black
• Dimensions (W×H×D): 215 mm × 44.5 mm × 32.5 mm
• Weight: 0.27 kg

How to use

Mount the patch panel into a standard 10" rack using appropriate mounting screws. Strip and prepare each twisted-pair cable according to the cable and connector manufacturer guidelines, then terminate each conductor into the IDC/LSA contacts following the color code for Cat5/5e. After termination, plug patch cords into the front RJ-45 ports to connect network equipment and verify connectivity with standard network testing tools.

Recommendations

For reliable performance, use quality Cat5 or Cat5e cables, keep cable runs within recommended length limits, label ports for easy identification, and test each link after installation. Avoid excessive bending or tension on cables near the IDC terminations.
