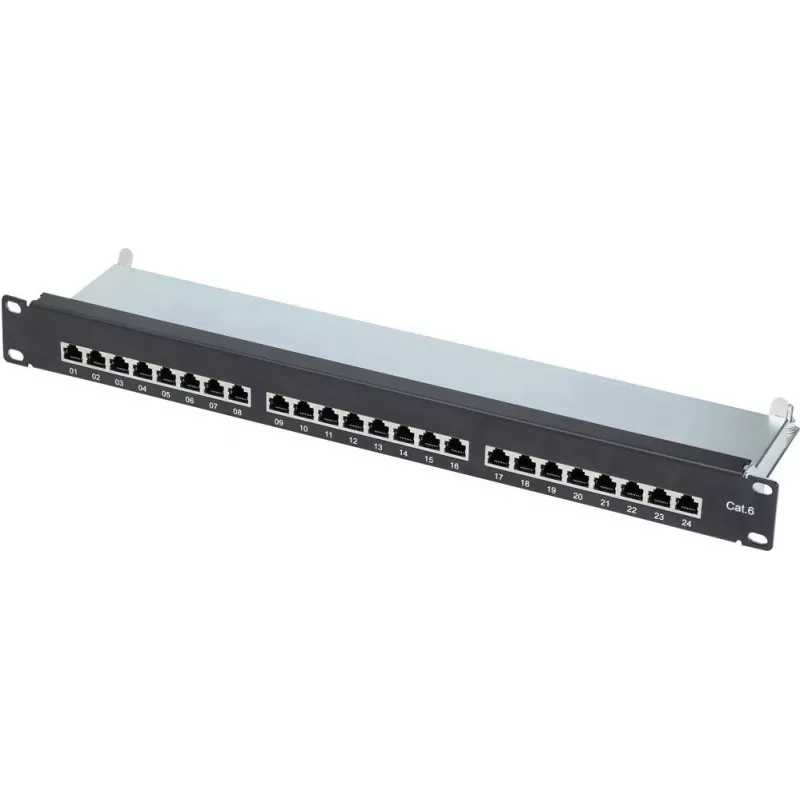

Patchpaneel Renkforce 24-poorts CAT6, 1U (1 HE) voor gestructureerde bekabeling

The Renkforce 24-Port CAT6 patch panel in a 1U (1 HE) rack height is designed for terminating and organising CAT6 Ethernet cabling in structured cabling installations. The panel provides 24 RJ45 ports in a standard 19-inch rack form factor, enabling centralised connection points for patching, testing and rearranging network links. It is intended for use in server rooms, telecommunications cabinets and office network racks where neat cable routing and reliable terminations are required.

Advantages

The panel supports CAT6 cabling performance and provides consistent port labelling and alignment to simplify installation and maintenance. Its 1U size conserves rack space while offering a full set of 24 RJ45 ports for horizontal cabling. The metal housing contributes to mechanical stability and secure mounting in standard racks. Colour-coded termination points and clear port identification reduce the risk of wiring errors during punch-down and subsequent reconfiguration.

Suitable for

• Server rooms and data centres requiring organised horizontal cabling termination
• Office network racks and communications cabinets
• Small and medium business structured cabling installations
• Network patching, testing and flexible reconfiguration tasks

Key specifications

• Number of ports: 24 RJ45 ports
• Cabling standard: CAT6 performance level
• Rack height: 1U (1 HE), compatible with 19-inch racks
• Mounting: front-mounted for standard rack units
• Housing material: metal construction for durability
• Termination type: IDC/punch-down style terminations with colour coding
• Port labelling: sequential port identification for easy management

How to use

Mount the patch panel in a 19-inch rack at the desired 1U location and secure it with appropriate rack hardware. Route CAT6 horizontal cables to the rear of the panel and terminate each conductors pair using the indicated punch-down points according to the colour coding and the chosen wiring standard (T568A or T568B). After termination, use short patch cords to connect the front RJ45 ports to network switches, routers or other active equipment. Verify each connection with a cable tester to confirm continuity, pair integrity and performance parameters.

Recommendations

For reliable network performance, maintain proper cable bending radii, avoid exceeding recommended cable run lengths, and label both ends of each cable clearly. Use shielded cabling and grounding practices only if the overall installation and equipment require shielding. Perform certification testing after installation to ensure links meet CAT6 specifications.
