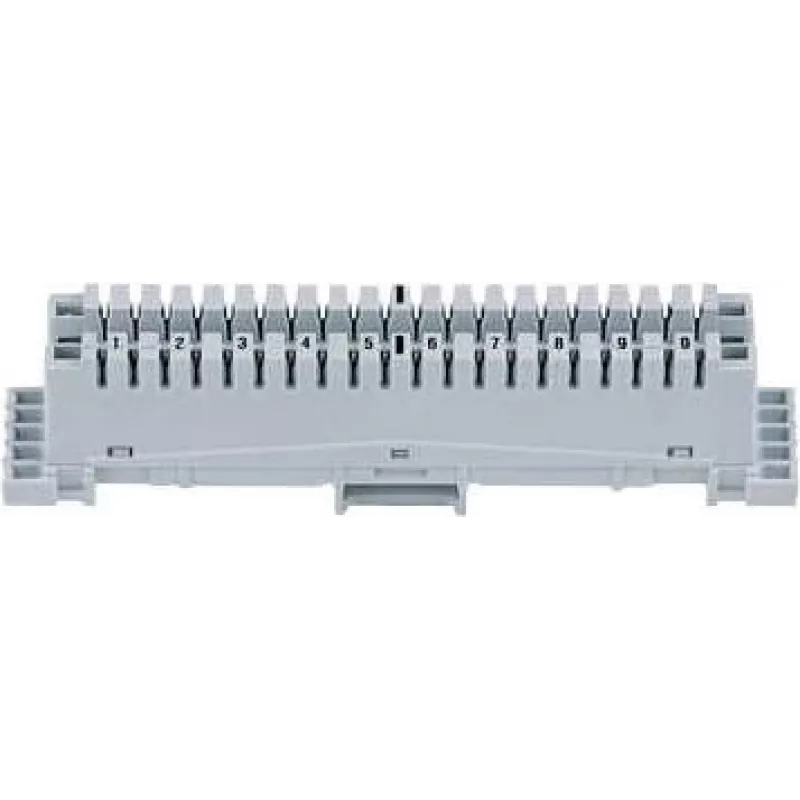

Patchpanel-aansluitstrip Corning 79101-511 00 met kleurcode (LSA-Plus 2/10DA)

Corning 79101-511 00 is a connector/termination strip designed for structured copper telecommunication installations. Built for LSA‑Plus 2/10DA systems, the strip provides a row of labeled termination points with integrated color coding to simplify pair identification and consistent wiring. It is intended for use in distribution frames, patch panels and network cabinets where reliable, serviceable terminations are required for voice and data circuits.

Advantages

The Corning connector strip offers clear integrated color coding that speeds up identification and reduces wiring errors. Its LSA‑Plus compatible contacts enable solid, gas-tight terminations without soldering, ensuring electrical reliability and long-term contact stability. The design supports organized cable routing and labeling, which assists maintenance and reduces downtime during reconfiguration or fault finding.

Suitable for

• Termination and distribution of copper voice and data circuits in telecom closets
• Patch panel and cross‑connect installations
• Service and maintenance work where pair identification and quick access are required
• Small and medium enterprise network cabinets and distribution frames

Key specifications

• Termination system: LSA‑Plus 2/10DA compatible
• Integrated color coding for pair identification
• Form factor: connector/termination strip suitable for rack or frame mounting
• Contact type: insulation displacement contacts for tool‑assisted terminations
• Application: copper telecommunication cabling for voice and data

How to use

Mount the connector strip in the designated position on the distribution frame or inside the network cabinet using compatible mounting hardware. Route the incoming and outgoing copper cables so that pairs align with the colored coding on the strip. Use the appropriate LSA‑Plus installation tool to insert conductors into the insulation displacement contacts and make secure terminations. Label each termination point according to your numbering scheme or network documentation to maintain traceability.

Recommendations

Perform terminations with the specified LSA‑Plus tool and verify pair continuity and wiring order after installation. Keep the area around the strip organized and free from strain on the cables; use cable ties and routing channels as needed to prevent mechanical stress on the terminations.
