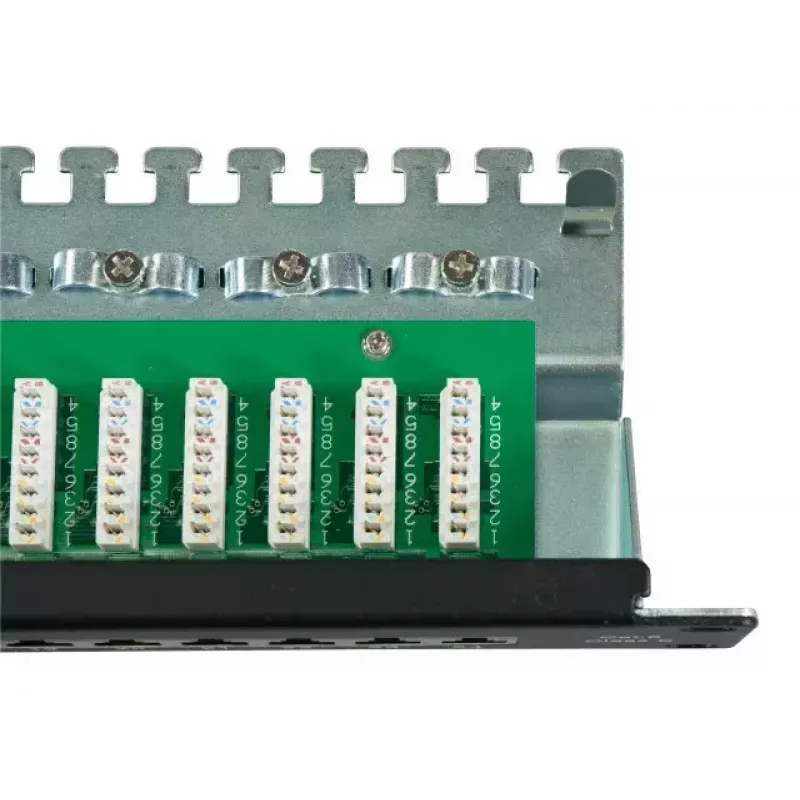

Patchpanel EFB Elektronik 37667SW.1M

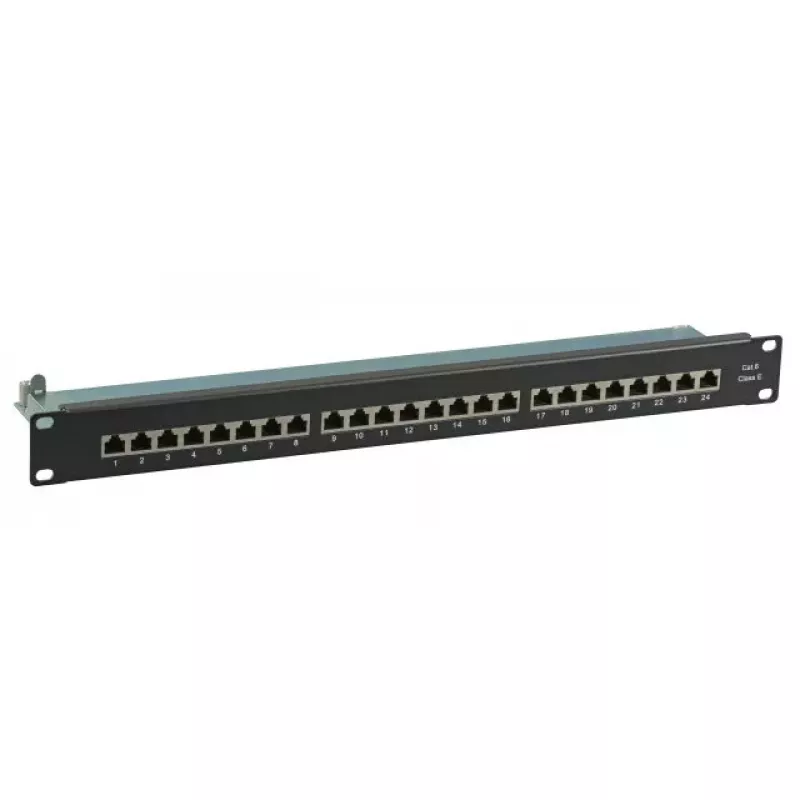

The EFB Elektronik 37667SW.1M is a 1U rack-mounted patch panel designed for structured network cabling in server rooms, data closets and telecommunications racks. It provides 24 RJ-45 ports with gold-plated contacts to support stable connections and high-speed data transfer up to 5000 Mbit/s. With a black finish and compact dimensions (483 mm × 44.5 mm × 100 mm), this panel is intended for organized cable management and easy integration into standard 19-inch racks.

Advantages

The patch panel offers a full row of 24 RJ-45 ports for consolidated network termination and distribution. Gold-plated contacts reduce corrosion and improve signal integrity, while the unit’s 1U height minimises rack space consumption. Its black housing provides a neutral appearance that matches typical rack equipment. The specified maximum transfer rate of 5000 Mbit/s supports demanding applications and allows the panel to be used in fast Ethernet and some higher-speed local area network setups.

Suitable for

• Organising network cabling in 19-inch server racks
• Patch and cross-connect solutions in small-to-medium IT rooms
• Termination point for switches, routers and network distribution
• Environments requiring corrosion-resistant RJ-45 contacts

Key specifications

• Form factor: 1U rack-mounted panel
• Ports: 24 RJ-45 ports with gold-plated contacts
• Maximum data rate: 5000 Mbit/s
• Colour: Black
• Dimensions (W × H × D): 483 mm × 44.5 mm × 100 mm

How to use

Install the patch panel in a standard 19-inch rack using the supplied mounting points, aligning the panel to occupy a single rack unit (1U). Terminate incoming and outgoing copper network cables to the RJ-45 ports according to your cabling scheme and the relevant wiring standard (for example, T568A or T568B). Verify proper seating of connectors and secure cables with appropriate strain relief or cable management accessories to maintain reliable connections and prevent mechanical stress on the ports.

Recommendations

For optimal performance, use high-quality, shielded or unshielded twisted-pair cabling appropriate to your network speed and environment, keep cable lengths within standard limits, and maintain proper patch panel labelling to simplify future maintenance and troubleshooting.
