Patchpanel ShiverPeaks BS08-67050

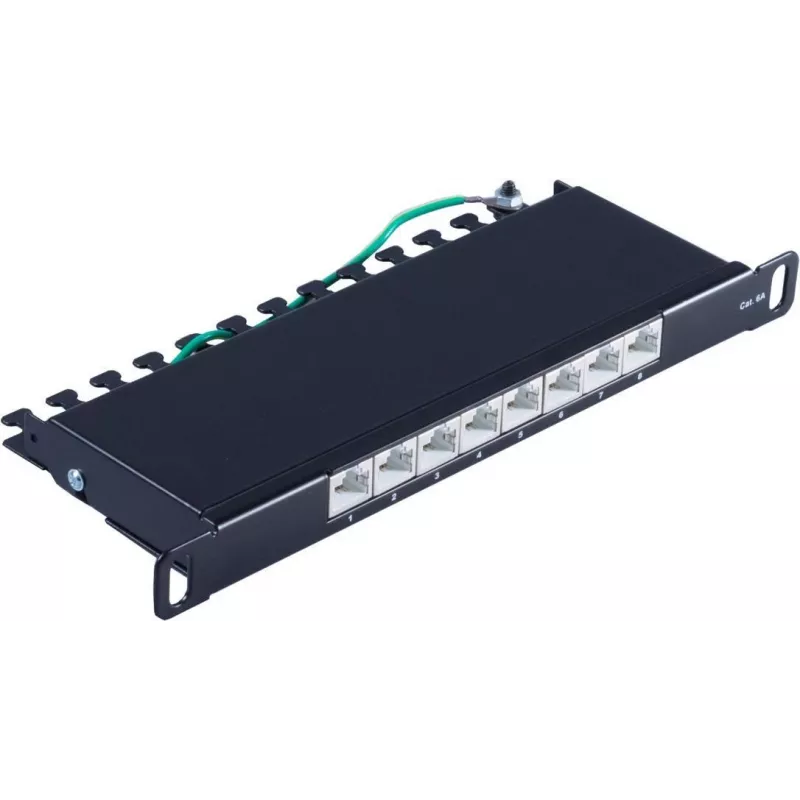

The ShiverPeaks BS08-67050 patch panel is a 0.5U rack-mounted module engineered for structured network installations using Cat6a cabling. Constructed from SPCC steel with a black finish, it offers a compact footprint and a professional appearance for server rooms, network racks and telecommunication cabinets. The panel is compatible with 22–26 AWG copper conductors and is designed to support high-speed Ethernet connections while simplifying cable routing and port identification.

Advantages

This 0.5U patch panel provides a space-saving design that fits standard 19-inch racks while maintaining solid mechanical stability thanks to its SPCC construction. The black finish helps unify rack aesthetics and resist visible wear in busy environments. Compatibility with Cat6a specifications and 22–26 AWG wiring ensures reliable signal performance for 10 Gigabit Ethernet and other high-bandwidth applications. The unit simplifies cable management and contributes to faster troubleshooting and rearrangement of network links.

Suitable for

• Data center patching and horizontal cabling
• Server rooms and rack-mounted network equipment
• Office LAN installations requiring Cat6a performance
• Telecommunication cabinets and wiring closets

Key specifications

• Form factor: 0.5U, rack-mounted, compatible with 19-inch racks
• Cable standard: Cat6a
• AWG compatibility: 22–26 AWG copper conductors
• Material: SPCC steel construction
• Finish: black

How to use

Install the patch panel into a standard 19-inch rack using the provided mounting points and appropriate rack screws. Terminate Cat6a cables on the rear IDC or punch-down connections according to standard T568A or T568B wiring schemes, observing manufacturer-recommended wire pair alignment and twist preservation. Label ports as needed for easy identification and route cables through horizontal managers or cable ties to maintain neatness and prevent strain on terminations. Verify connectivity and performance using a network cable tester after termination.

Recommendations

For optimal performance, use quality Cat6a terminated cables and keep cable runs within recommended lengths. Preserve pair twists up to the termination point and avoid excessive bending radii near the panel. Regularly inspect terminations and labeling in high-change environments to maintain clear documentation and minimize downtime.
