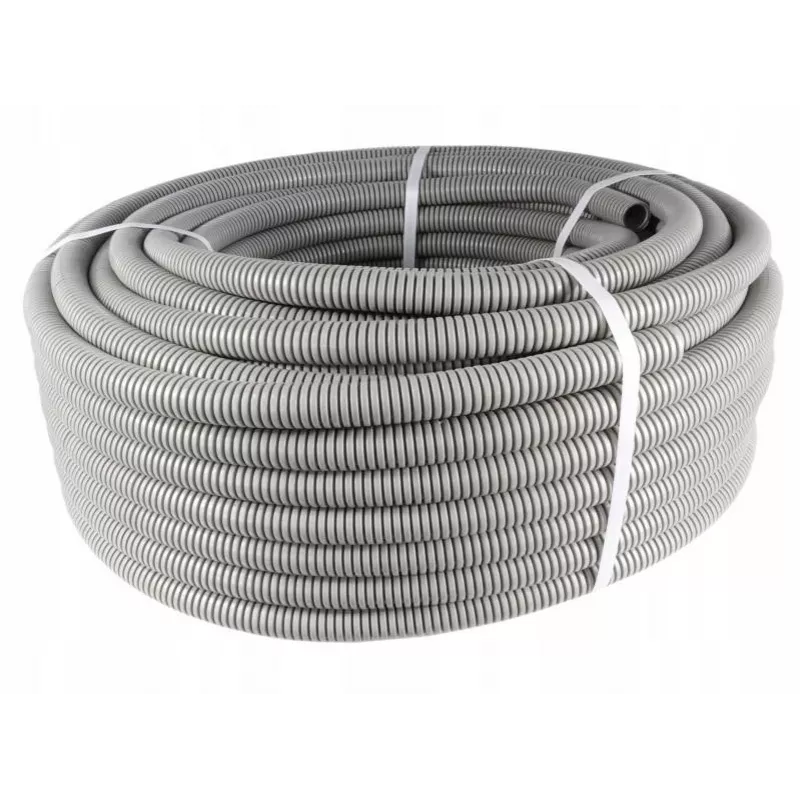

PAWBOL PVC ribbelbuis 50m, 320N, buitendiameter 20mm / binnendiameter 14mm, grijs 6161A-50P

The PAWBOL 6161A-50P is a high-quality corrugated PVC conduit designed for reliable protection of electrical cables and wires. With a length of 50 meters, an outer diameter of 20 mm, and an inner diameter of 14 mm, this flexible conduit offers excellent compression strength of 320 N, ensuring durability in various indoor installations. Its self-extinguishing material and good chemical resistance make it a safe choice for surface or recessed mounting in dry environments.

Advantages

This conduit provides robust mechanical protection against impact and crushing, while its flexibility allows for easy routing around corners and obstacles. The PVC material is resistant to many chemicals and has a wide operating temperature range from -5°C to +60°C, making it suitable for diverse applications. The self-extinguishing property enhances safety in case of fire.

Suitable for

• Protection of electrical cables in residential, commercial, and industrial buildings
• Surface or recessed installation on walls, ceilings, and floors
• Use in dry indoor environments where flexibility and strength are required

Key specifications

• Product Type: Corrugated Electrical Conduit
• Material: Polyvinyl Chloride (PVC)
• Length: 50 m
• Outer Diameter: 20 mm
• Inner Diameter: 14 mm
• Compression Strength: 320 N
• Colour: Grey
• Temperature Range: -5°C to +60°C
• Flammability Class: Self-extinguishing
• Standard Compliance: EN 61386-22

Recommendations

For optimal performance, ensure the conduit is properly supported and secured during installation. Use appropriate fittings and connectors to maintain system integrity. This product is designed for indoor use only; avoid exposure to direct sunlight or extreme weather conditions.
