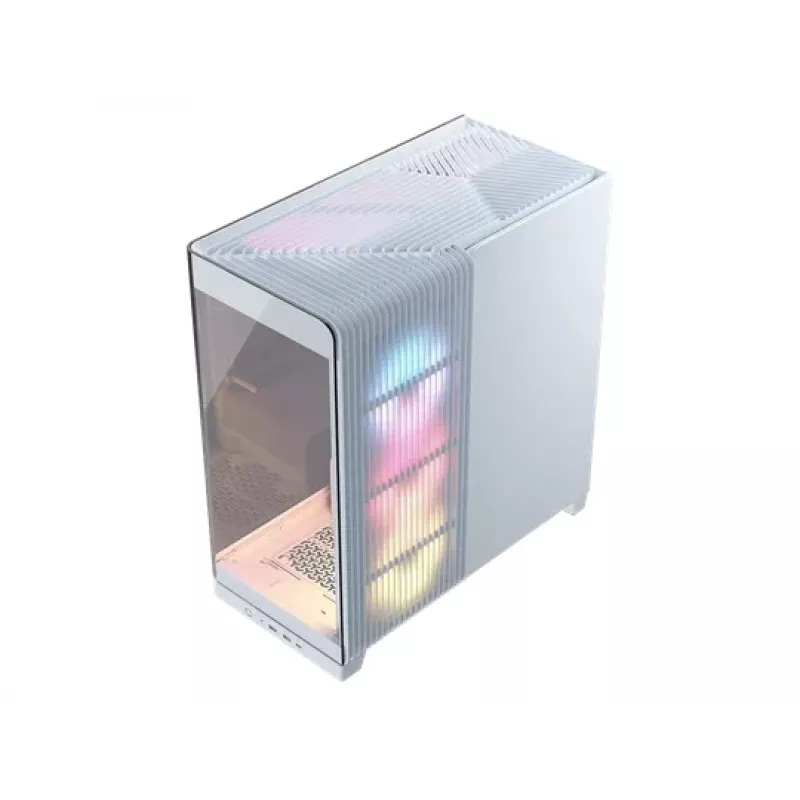

PC-behuizing Corsair 4500X RS-R ARGB Tempered Glass Midi Tower wit

The CORSAIR FRAME 4500X RS‑R ARGB is a white tempered‑glass mid‑tower PC case that combines a wraparound curved‑glass exterior with modular internal design to support high‑performance builds. The case offers a panoramic single‑piece glass front and side for unobstructed component viewing, multiple fan mounting options including three side 120 mm ARGB fans and flexible InfiniRail brackets for top and roof fan/radiator placement, and cable‑management features compatible with ASUS BTF, MSI Project Zero and Gigabyte Project Stealth layouts. Its footprint (250 mm × 542 mm × 556 mm) and drive support (two 2.5" bays and one 3.5" bay) make it suitable for gaming and enthusiast systems that prioritize cooling and a clean visual presentation.

Advantages

The FRAME 4500X offers a panoramic tempered‑glass design that provides a continuous wraparound view of internal components while maintaining structural rigidity. InfiniRail fan brackets allow precise positioning of fans and radiators up to 140 mm on the roof, enabling customized airflow configurations. Included side‑mounted 120 mm ARGB fans use a reverse‑rotor layout to direct cool air into the case without obstructing RGB lighting, supporting both effective cooling and clear visual presentation. Built‑in cable routing cutouts and tie‑down points facilitate tidy builds and compatibility with modern motherboard cable‑management standards.

Suitable for

• Gaming PCs with large graphics cards
• Enthusiast and showcase builds with ARGB lighting
• Water‑cooling setups requiring flexible radiator placement
• Builds that require clear tempered‑glass display of components

Key specifications

• Type: PC case, Midi Tower
• Colour: White
• Drive bays: 2 × 2.5" bays, 1 × 3.5" bay
• Front/side material: Tempered glass (single wraparound pane)
• Included fans: 3 × 120 mm side ARGB, 1 × 120 mm rear (as specified in source)
• Fan mounting system: InfiniRail (adjustable steel brackets, supports up to 140 mm on roof)
• Front I/O: 2 × USB 3.2 Gen 1 (Type‑A)
• Dimensions (W×D×H): 250 mm × 542 mm × 556 mm

How to use

Install motherboard and components following standard PC‑building procedures, using the provided cutouts and tie‑downs to route PSU cables behind the motherboard tray. Mount drives into the designated 2.5" and 3.5" bays and position fans or radiators on the InfiniRail brackets to achieve the desired airflow — slide and secure the brackets at the required locations for top or roof configurations. Connect ARGB and fan headers to compatible motherboard or controller hubs, then verify fan orientation (side fans are configured to intake cool air). Close the single‑pane tempered‑glass panel carefully to avoid contact with cables or connectors.

Recommendations

For optimal cooling and aesthetics, use a push–pull fan configuration where possible, keep the side 120 mm ARGB fans as intake, and plan cable routing before final component installation. If installing large radiators on the roof, ensure clearance with GPU length and check that fans/radiator placement on InfiniRail does not obstruct motherboard headers or front I/O connections.
