PC-behuizing Kolink Unity Adapt Midi Tower zwart

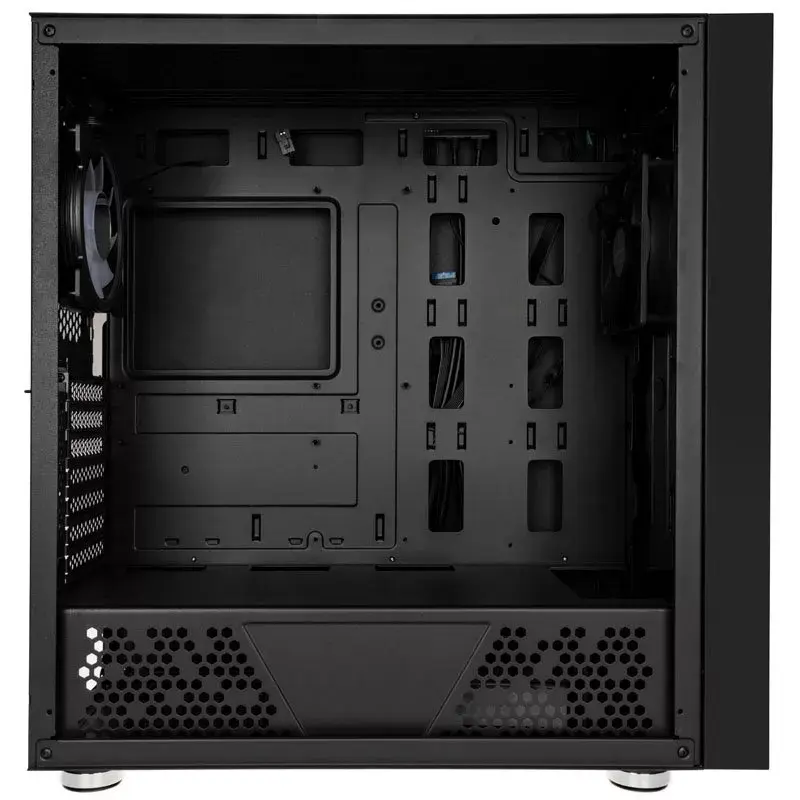

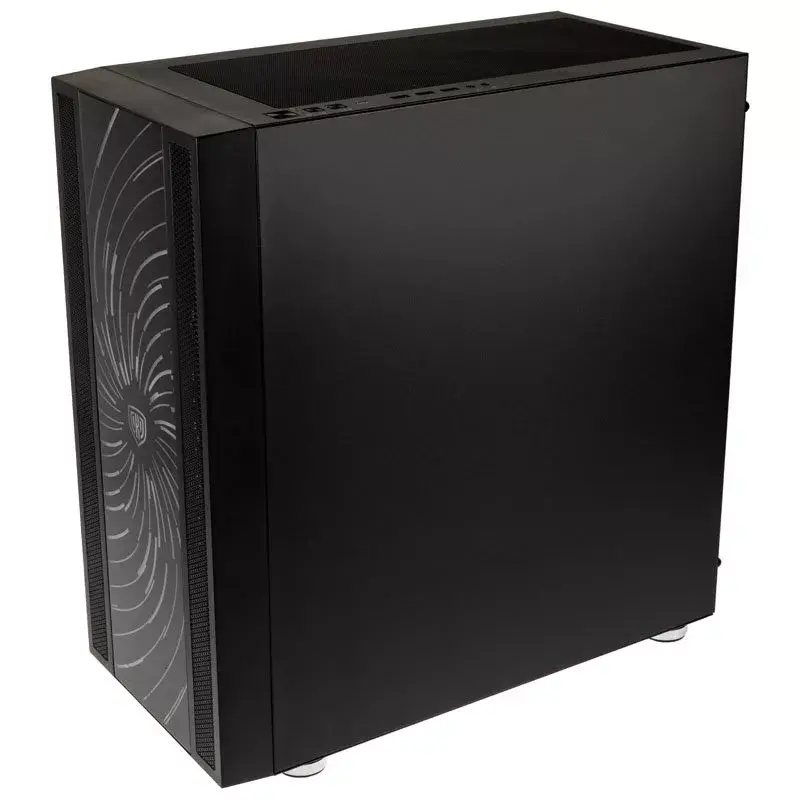

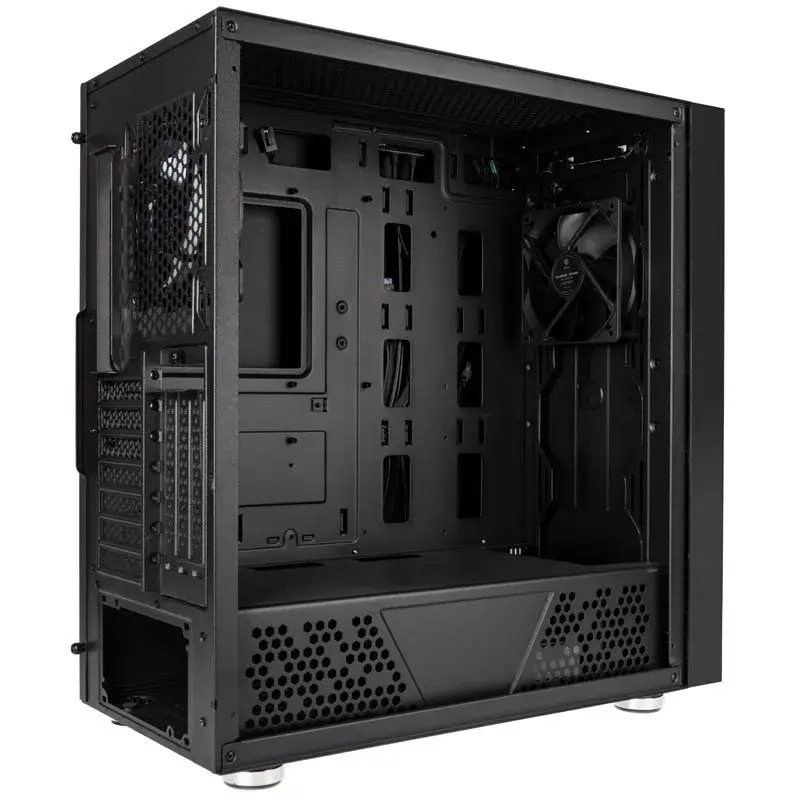

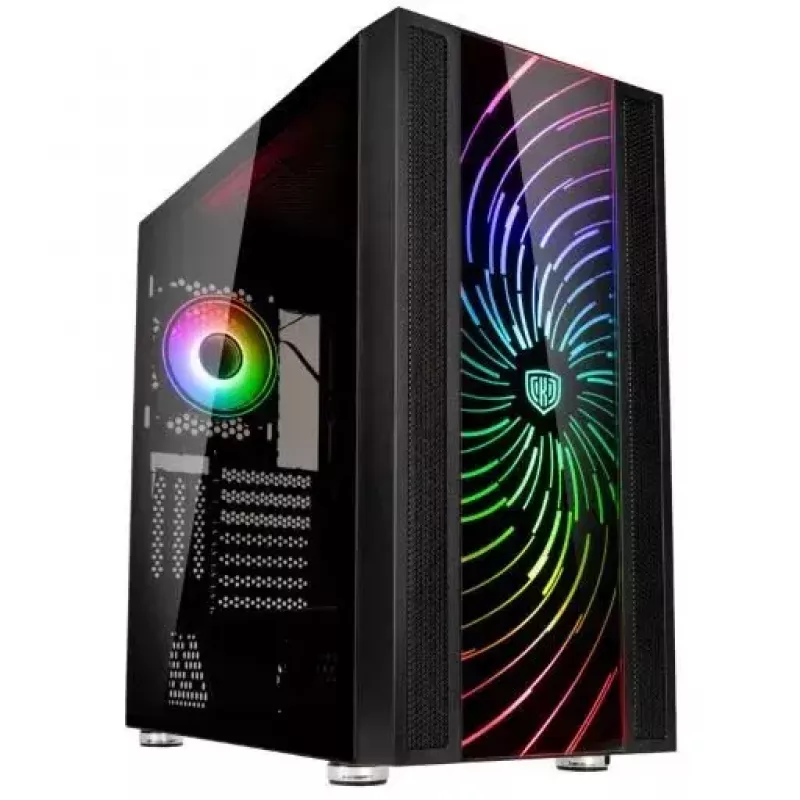

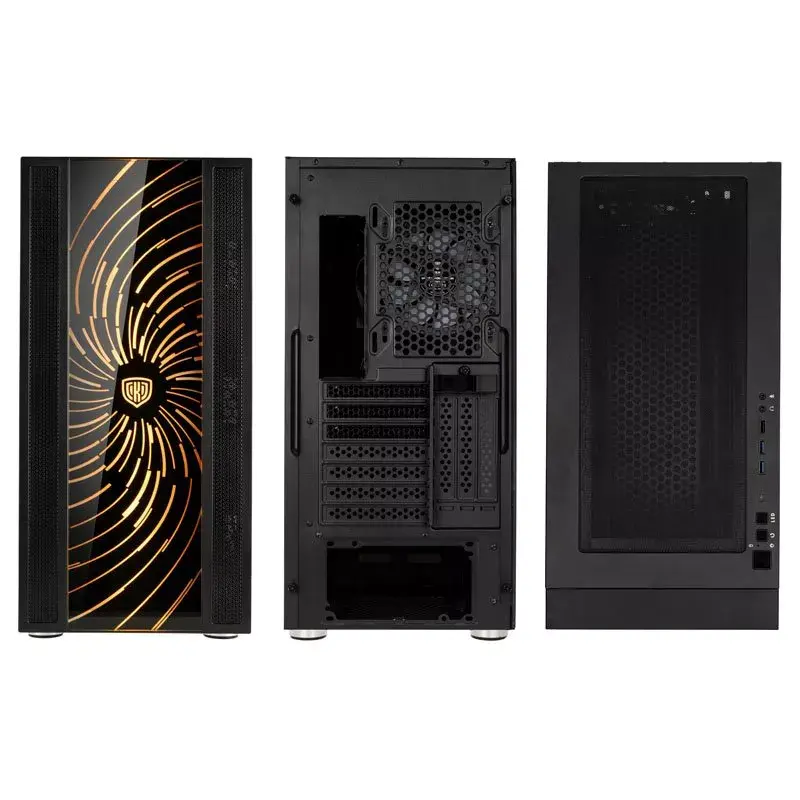

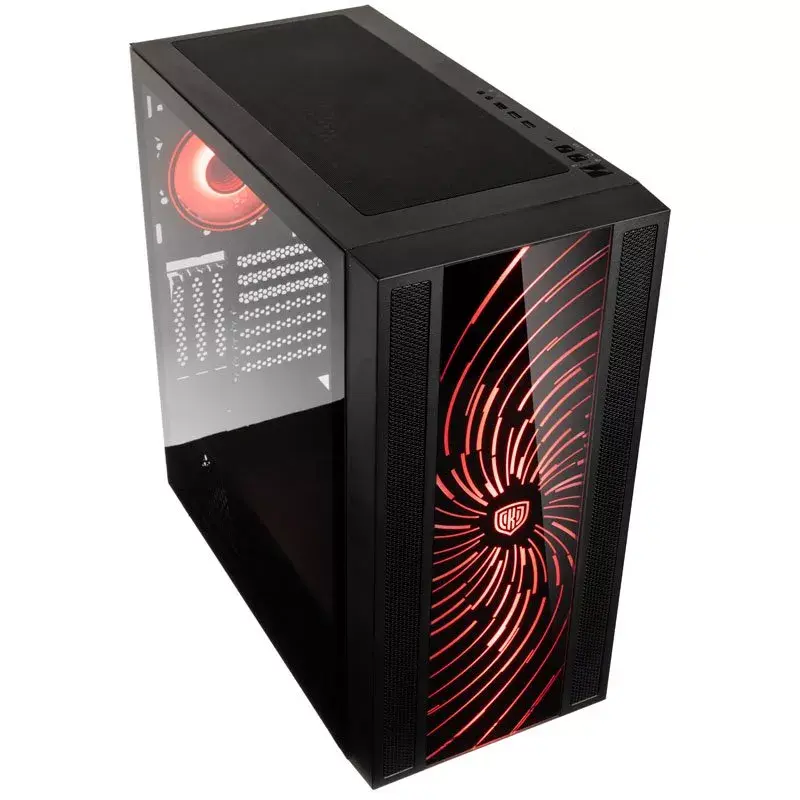

The Kolink Unity Adapt Midi Tower Black is a mid-tower PC case designed for balanced airflow, component compatibility and easy customization. The case combines a full ARGB front panel with a mesh ventilation layer, a tempered glass side panel and a PSU shroud to present a compact yet flexible platform for gaming and general-purpose builds. It supports a range of motherboard form factors and offers multiple locations for storage drives and cooling options while keeping internal cable routing accessible through a side-mounted I/O layout.

Advantages

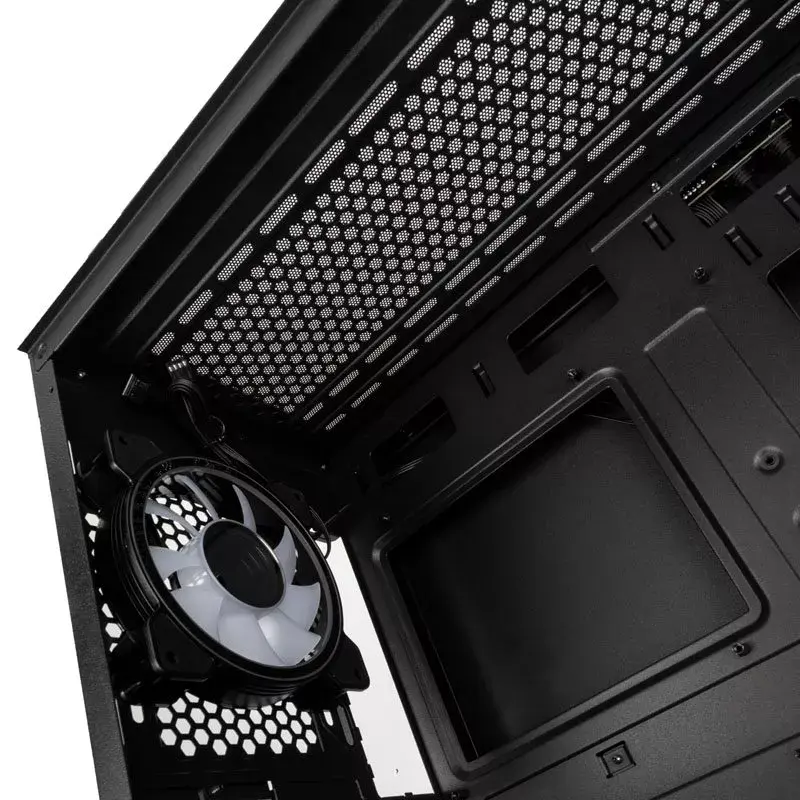

The Unity Adapt offers versatile cooling support with preinstalled 120 mm fans and space for additional front, top and rear fans and radiators. A replaceable front panel design with addressable RGB illumination enables visual customization without changing the chassis. Internal drive mounts and removable brackets allow both 3.5" and 2.5" storage installations, and the tempered glass side panel provides a clear view of the system. The case also includes a removable dust filter under the PSU area and a shroud to keep the build tidy.

Suitable for

• Gaming PC builds with mid-tower component compatibility
• Custom systems requiring several 120/140 mm fans or radiators (front, top, rear)
• Users who want an ARGB-front aesthetic with optional front panel designs
• Systems needing multiple 3.5" HDDs and 2.5" SSDs in a compact footprint

Key specifications

• Form factor: Midi Tower
• Supported motherboard sizes: Mini-ITX, Micro ATX, ATX, EATX

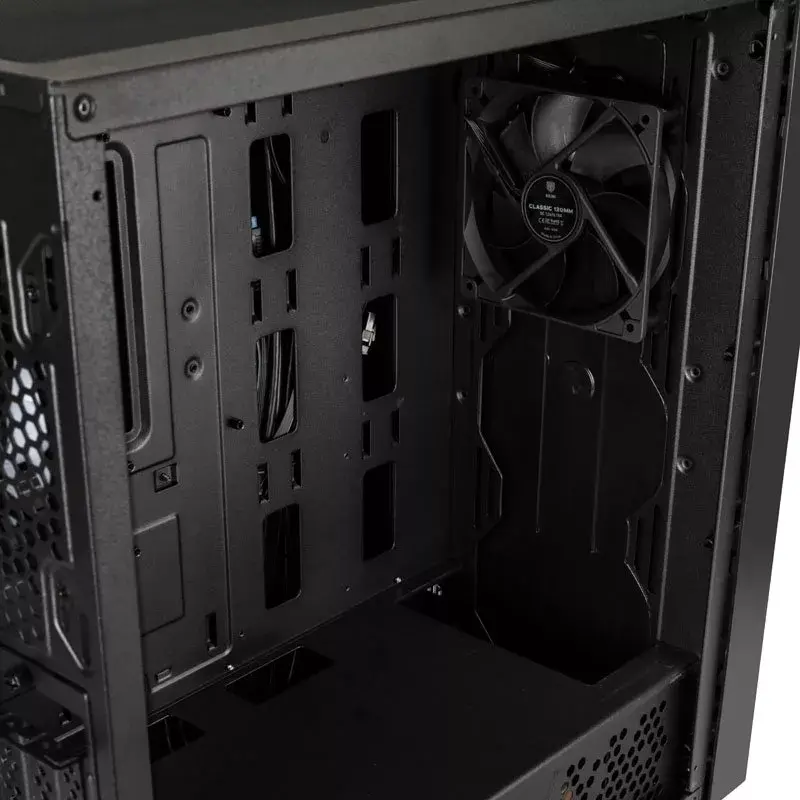

• Preinstalled fans: three 120 mm front fans and one 120 mm rear fan
• Fan support: up to two additional 120 mm or three 140 mm front; up to three 120/140 mm top; 120/140 mm rear
• Radiator support: up to 420 mm front, 360 mm top, 120/140 mm rear

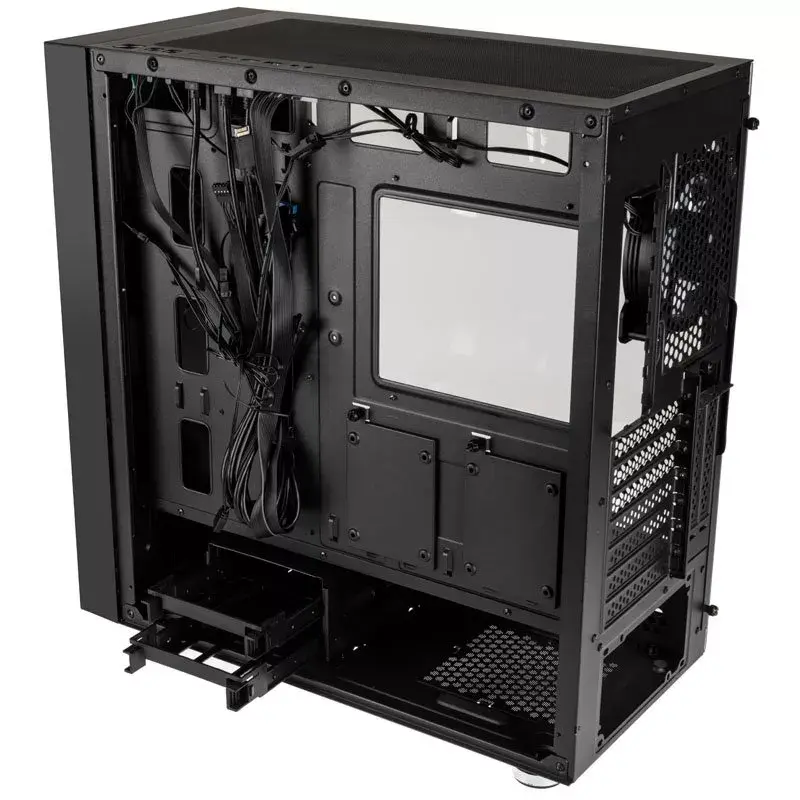

• Drive bays: two 3.5" bays and two 2.5" bays (plus two removable 2.5" brackets behind motherboard)
• Maximum GPU length: up to 415 mm (345 mm with additional fan clearance as specified)
• Maximum CPU cooler height: up to 180 mm
• Vertical GPU support: up to triple-slot with supplied mount (vertical PCIe riser sold separately)
• Material: tempered glass side panel, steel and ABS construction
• Colour: Black

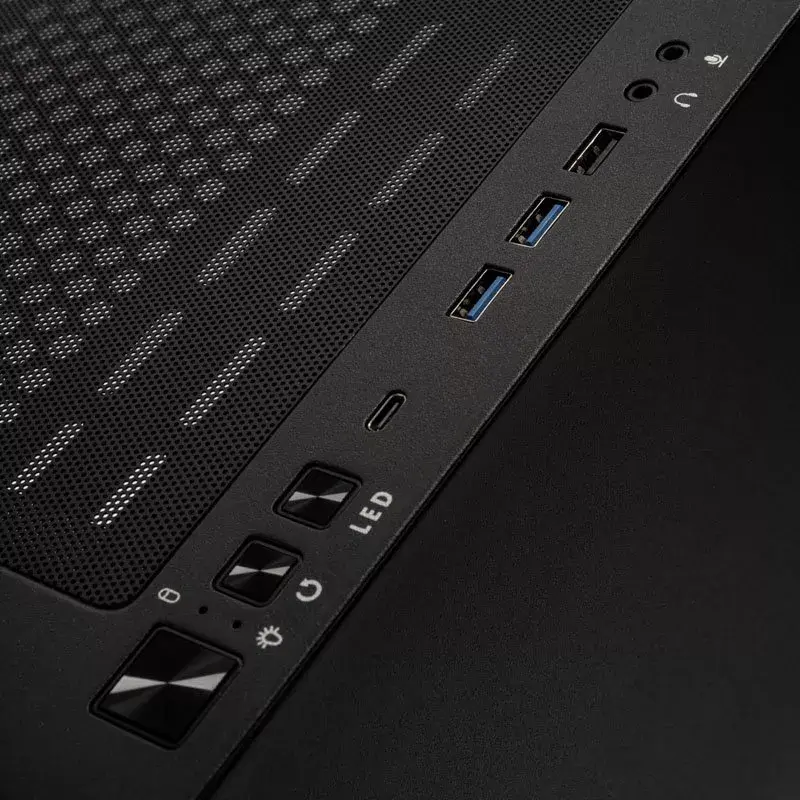

• I/O: 1 x USB 2.0, 2 x USB 3.2 Gen 1 Type-A, side-mounted I/O panel with USB Type-C, USB 2.0, USB 3.0 Type-A and HD-Audio connectors
• Case dimensions (W x D x H): 230 mm x 460 mm x 485 mm

How to use

Install a compatible motherboard (Mini-ITX, Micro ATX, ATX or EATX) onto the provided mounting points, route power and data cables behind the motherboard tray and place storage drives into the dedicated 3.5" or 2.5" bays or onto the removable brackets. Fit the power supply into the shroud area (compatible with ATX PSUs up to the supported depth) and attach front, top or rear cooling components according to available space and radiator sizes. Connect the front-panel ARGB and fan headers to a compatible controller or motherboard header for lighting and PWM control, and secure the tempered glass side panel using the quick-release mechanism to display the completed build.

Recommendations

For balanced airflow, keep at least two fans on intake at the front and one on exhaust at the rear or top. When installing long graphics cards combined with front-mounted fans or large radiators, verify the specified GPU clearance (415 mm or 345 mm with additional fan dimensions) and adjust fan placement accordingly. Use the removable dust filter under the PSU to reduce dust ingress and perform periodic cleaning for sustained cooling performance. For ARGB lighting, use a compatible addressable RGB header or controller to synchronize the front panel and included fans.
