PCI Express x4 riserkaart DeLOCK 85768

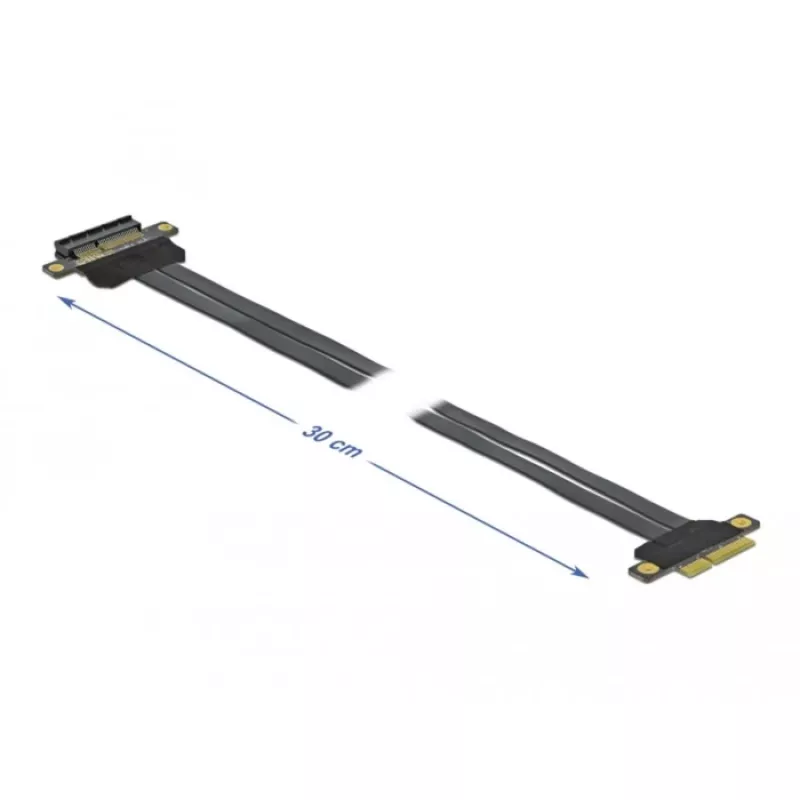

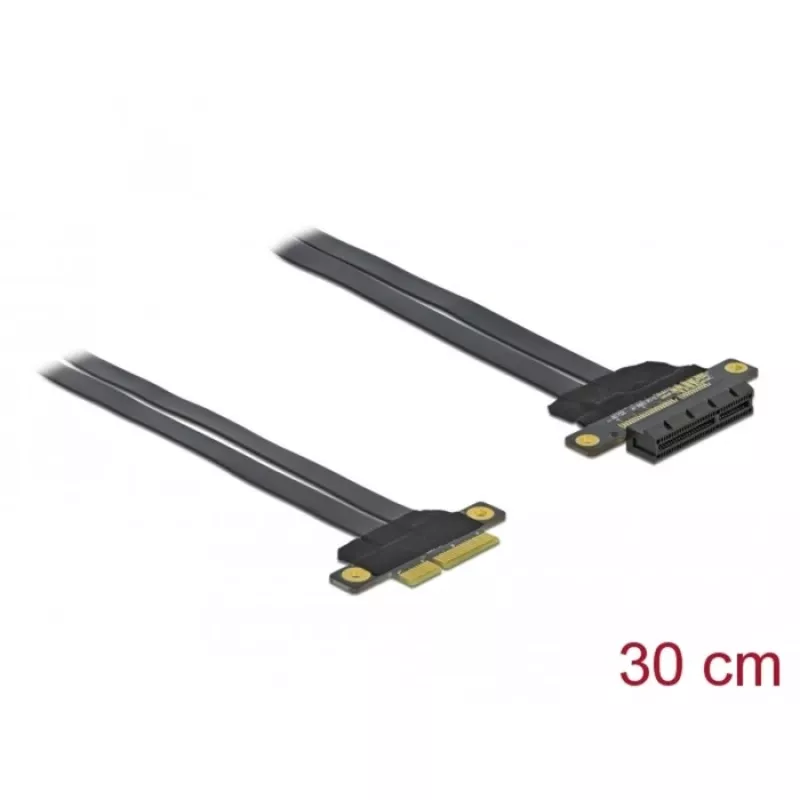

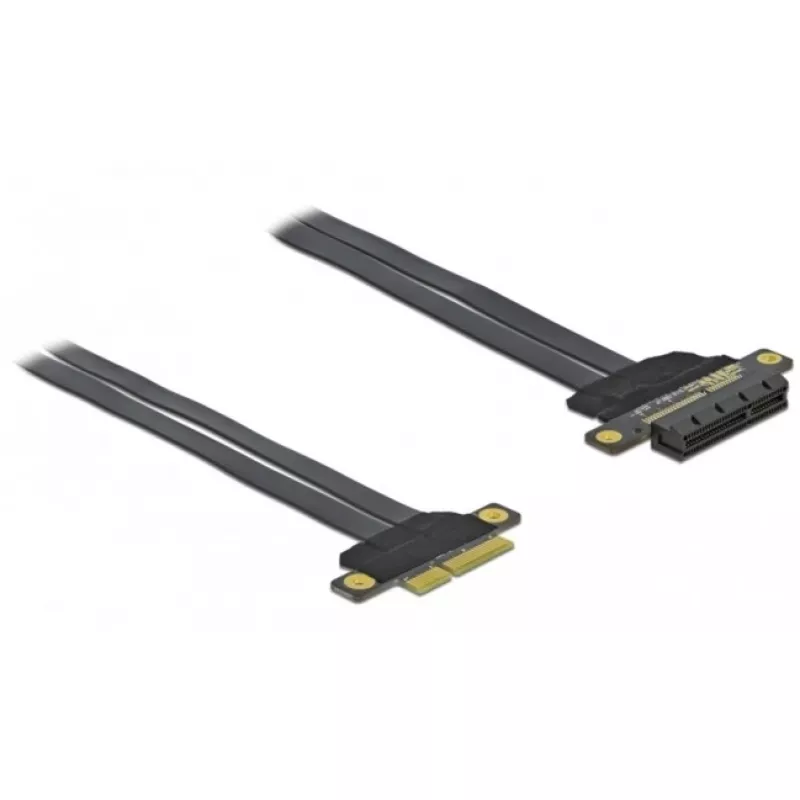

This PCI Express riser card by Delock (model 85768) provides a flexible connection to install a PCIe x4 card where space is limited. The assembly includes a 30 cm flexible cable and supports internal PCIe interfaces, enabling repositioning of a PCIe x4 slot inside the computer housing while maintaining a standard PCIe x4 connection. The product is supplied in black and green and is intended for single-unit use per pack.

Advantages

The flexible 30 cm cable allows installation in tight or unusual case layouts without bending the mainboard or the add-in card. The riser maintains a native PCIe x4 connection and is suitable for internal use. Its compact form factor and color coding help with neat internal cable routing and component placement.

Suitable for

• Installing a PCI Express x4 card in compact or small-form-factor PC cases
• Relocating a PCIe x4 slot to a different position inside the chassis
• Systems that require internal PCIe extension for expansion cards such as network, storage or accelerator cards

Key specifications

• Brand: DELOCK
• Model / MPN: 85768
• EAN: 4043619857685
• Host interface: PCIe (internal)
• Output interface: PCIe x4
• Cable length: 30 cm (flexible)
• Product colour: Black, Green
• Quantity per pack: 1 pc

How to use

Power down the computer and disconnect all power sources. Open the case and identify the PCIe x4 slot on the motherboard. Connect the riser card’s host end to the motherboard PCIe x4 connector, route the flexible cable to the desired location inside the case, and attach the add-in card to the riser’s PCIe x4 slot. Ensure the card is properly seated and secure any retention or mounting brackets as required. Close the case and restore power before powering on the system.

Recommendations

Use the riser in a well-ventilated case and avoid sharp bends in the flexible cable. Confirm the add-in card’s power and cooling requirements before installation and ensure the motherboard provides a PCIe x4 connection compatible with the device.
