PCIe-kaart Digitus 2x USB-C 3x USB-A

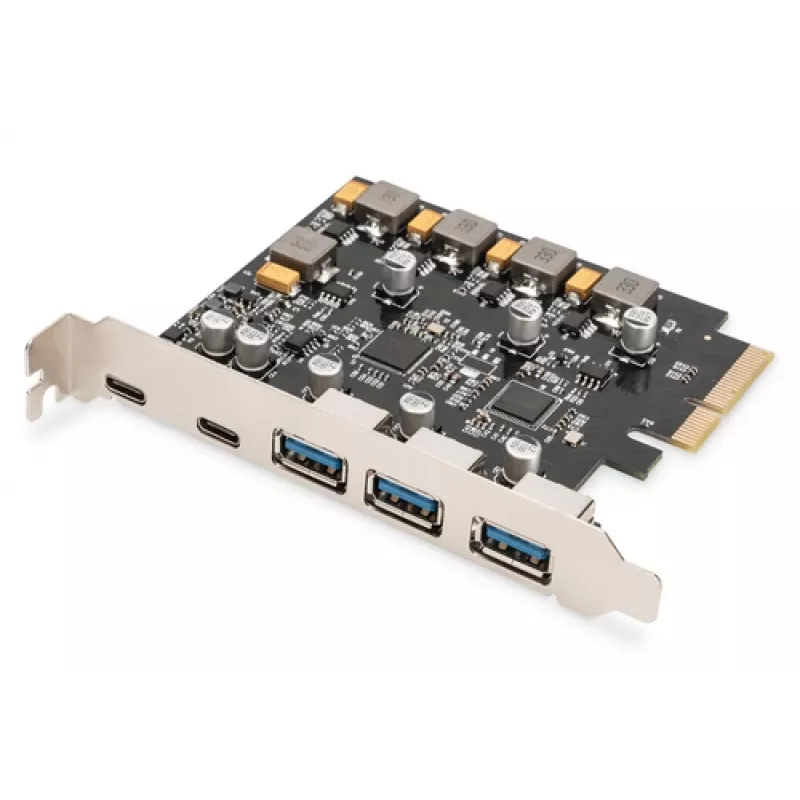

The Digitus PCIe card adds two USB-C and three USB-A external ports to a desktop PC, providing SuperSpeed USB 3.1 Gen2 connectivity with up to 10 Gbps transfer rates. The card is compatible with PCIe slots and supports common transfer modes (10G / 5G / 480M / 12M / 1.5M). It supplies power to connected devices via USB-C and USB-A ports and works without additional driver installation.

Advantages

This PCIe card offers five external USB 3.1 Gen2 ports (2x USB-C, 3x USB-A) that each support data rates up to 10 Gbps, enabling fast file transfers and connection of modern peripherals. The card supports multiple USB speed classes and provides per-port power: USB-C up to 5 V / 3 A and USB-A up to 5 V / 1 A. Installation is plug-and-play for straightforward setup in compatible PCIe slots.

Suitable for

• Connecting external SSDs and HDDs for high-speed data transfer
• Attaching USB-C devices such as modern smartphones, docks, and peripherals
• Adding additional USB-A ports for keyboards, mice, card readers and legacy devices
• Upgrading desktop PCs that lack native USB 3.1 Gen2 ports

Key specifications

• Interface: PCIe (PCI Express)
• Ports: 2 x USB-C (USB 3.1 Gen2), 3 x USB-A (USB 3.1 Gen2)
• Maximum transfer rate: up to 10 Gbps per port (supports 10G / 5G / 480M / 12M / 1.5M)
• Power per port: USB-C 5 V / 3 A max, USB-A 5 V / 1 A max
• Compatibility: Windows 7, 8, 8.1, 10, 11 (driverless plug-and-play)
• Product colour: Black, Nickel
• Brand / MPN / EAN: DIGITUS / DS-30222 / 4016032485810

How to use

Power off the PC, insert the PCIe card into an available PCIe slot and secure it to the case. Reconnect power and boot the system; the card is recognized automatically without manual driver installation on supported Windows versions. Connect USB devices to the appropriate USB-C or USB-A ports depending on connector type and power requirements.

Recommendations

Use USB-C ports for high-performance external storage and devices that require higher current; use USB-A ports for peripherals with lower power needs. Ensure the system BIOS and PCIe slot provide sufficient power and bandwidth for simultaneous high-speed transfers.
