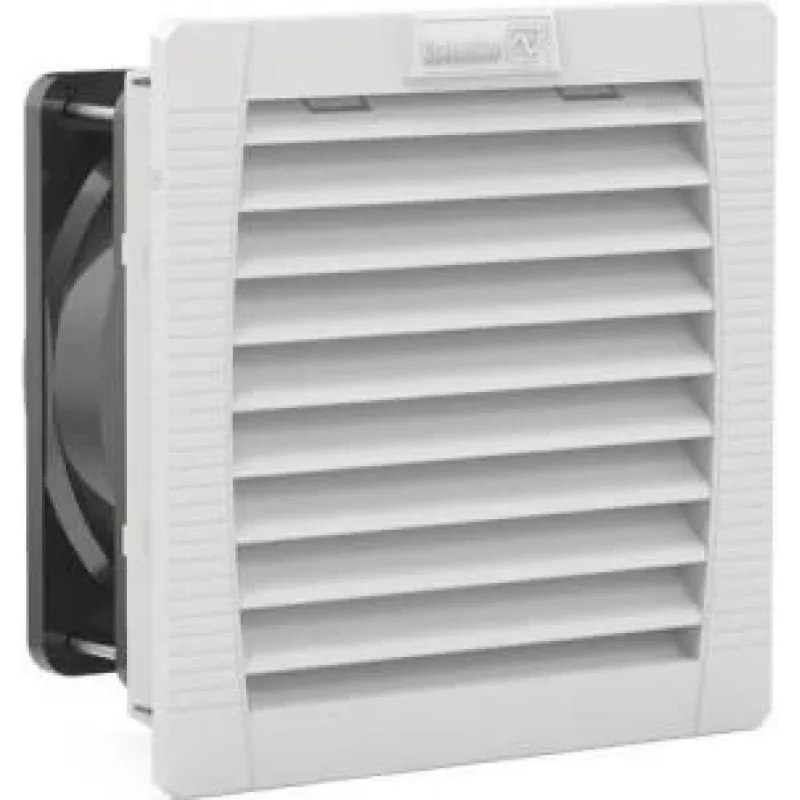

Pfannenberg Filterventilator PF 22000 van de 4e generatie 24 VDC IP54 61 m³/h (11622801055)

The Pfannenberg PF 22000 filter fan stands out with its tool-free snap-on mounting, allowing quick installation without screws. Designed for 24 VDC operation, it delivers 61 m³/h of unfiltered airflow to keep enclosures cool while protecting against dust and splashing water with an IP54 rating.

Highlights

• Tool-free snap-on mounting for fast installation
• 24 VDC operation with low power consumption (15 W)
• IP54 protection against dust and water
• Compact design with 177 x 177 mm cut-out
• G3 filter mat for effective particle filtration

In daily use

This fan maintains a stable internal temperature in electrical enclosures, preventing overheating of sensitive components. The included G3 filter mat captures dust, and the snap-on frame simplifies filter replacement. With a noise level of 49 dB(A), it operates quietly in industrial environments. The ABS plastic housing (UL94 V0) ensures durability and fire resistance.

Full specifications

• Product Type: Filter Fan
• Series: PF 22000
• Operating Voltage: 24 VDC
• Ingress Protection Rating: IP54
• Airflow (Unfiltered): 61 m³/h
• Airflow (Filtered): 50 m³/h
• Mounting Type: Snap-on (Tool-free)
• Cut-out Dimensions: 177 x 177 mm
• Housing Material: ABS Plastic (UL94 V0)
• Operating Temperature Range: -10 °C to +55 °C
• Noise Level: 49 dB(A)
• Power Consumption: 15 W
• Current Consumption: 0.6 A
• Filter Mat Type: G3 Standard
• Connection Type: Terminal Block
• Color: RAL 7035 (Light Grey)

Final note

A reliable cooling solution for enclosures requiring efficient airflow and protection in industrial settings.
