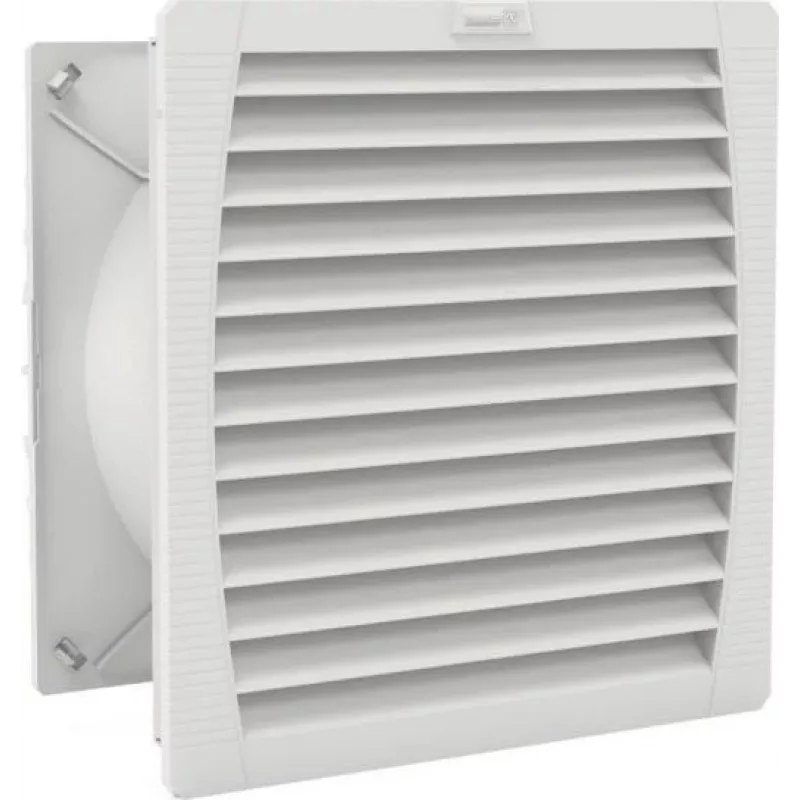

Pfannenberg PF 66000 230VAC IP54 filterventilator van de 4e generatie 640 m³/h (11666102055)

With an airflow of 640 m³/h, the Pfannenberg PF 66000 filter fan delivers powerful cooling for demanding enclosures. Operating on 230 VAC, this unit combines high performance with IP54 protection, making it suitable for industrial environments where dust and moisture are a concern.

Overview

The PF 66000 is part of Pfannenberg's PF series, engineered for efficient thermal management in electrical enclosures. Its 4th generation design features a robust ABS plastic housing (UL94 V0) and a snap-on/screw mounting system for easy installation. The fan operates at a noise level of 65 dB(A) and consumes 190 W, providing reliable air circulation with a filter class of G3/G4.

What stands out

• High airflow of 640 m³/h for effective cooling
• IP54 protection against dust and splashing water
• Durable ABS plastic housing with UL94 V0 flammability rating
• Snap-on/screw mounting for quick installation
• Wide operating temperature range from -10°C to +55°C

Technical details

• Airflow: 640 m³/h
• Operating voltage: 230 VAC, 50/60 Hz
• Power consumption: 190 W
• Noise level: 65 dB(A)
• Cut-out dimensions: 292 x 292 mm
• Filter class: G3 / G4
• Housing material: ABS plastic (UL94 V0)
• Color: RAL 7035 (light grey)
• Lifespan (L10 at 40°C): 60,000 h

Our verdict

The Pfannenberg PF 66000 is a robust and efficient filter fan, ideal for industrial enclosures requiring high airflow and reliable protection against environmental contaminants.
