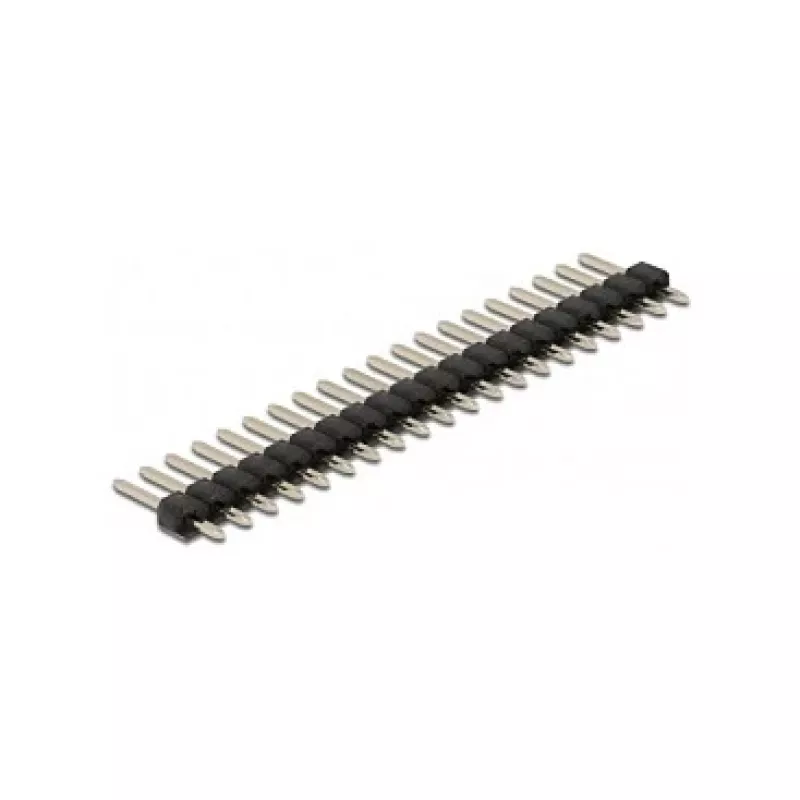

Pinheader DeLOCK 66693 printplaataccessoire

The DeLOCK 66693 pin header is a printed circuit board (PCB) accessory designed to create reliable connections between individual circuit boards. Made from metal and plastic, the connector offers durability and stable electrical contact in electronic assemblies.

Advantages

The pin header combines metal contacts with a plastic housing for mechanical stability and electrical conductivity. With a length of 50.8 mm and compact height and depth dimensions, it fits a variety of PCB layouts and helps ensure consistent mating with compatible connectors. The black and metallic finish provides a practical, durable surface treatment.

Suitable for

• Connecting daughter boards or modules to main PCBs
• Prototyping and small-scale electronics projects
• Repairing or replacing existing PCB headers

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66693
• EAN: 4043619666935
• Material: metal contacts with plastic housing
• Length: 50.8 mm
• Depth: 11.5 mm
• Height: 2.5 mm
• Finish: black and metallic
• Category: PCB accessory

How to use

Position the pin header on the PCB pads according to your board layout and solder each pin to the corresponding pad to establish a secure electrical and mechanical connection. Ensure correct orientation before soldering and verify solder joints after cooling. Use standard soldering tools and techniques appropriate for PCB components.

Recommendations

For best results, handle the component with ESD precautions, check pin alignment before soldering, and avoid excessive heat to prevent damage to the plastic housing. Match the header pitch and pin count with the mating connector or board layout.
