Plafond-projectorbeugel B-TECH BT899-XL — plafondbeugel, 25 kg capaciteit, zwart

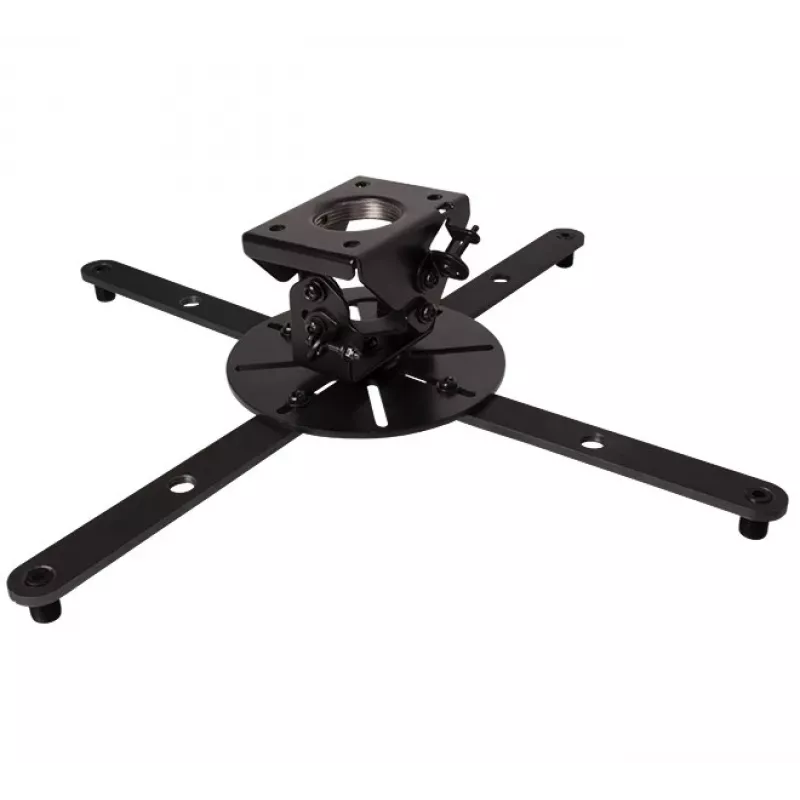

The B-TECH BT899-XL ceiling projector mount is a compact suspension solution for fixed overhead installation of LCD, LED and DLP projectors weighing up to 25 kg (55 lbs). Finished in black, it provides a low-profile attachment point 125 mm (5") from the ceiling when mounted directly, and offers full adjustment capabilities including tilt, roll and swivel to align the projected image precisely in homes, classrooms, meeting rooms and auditoria.

Advantages

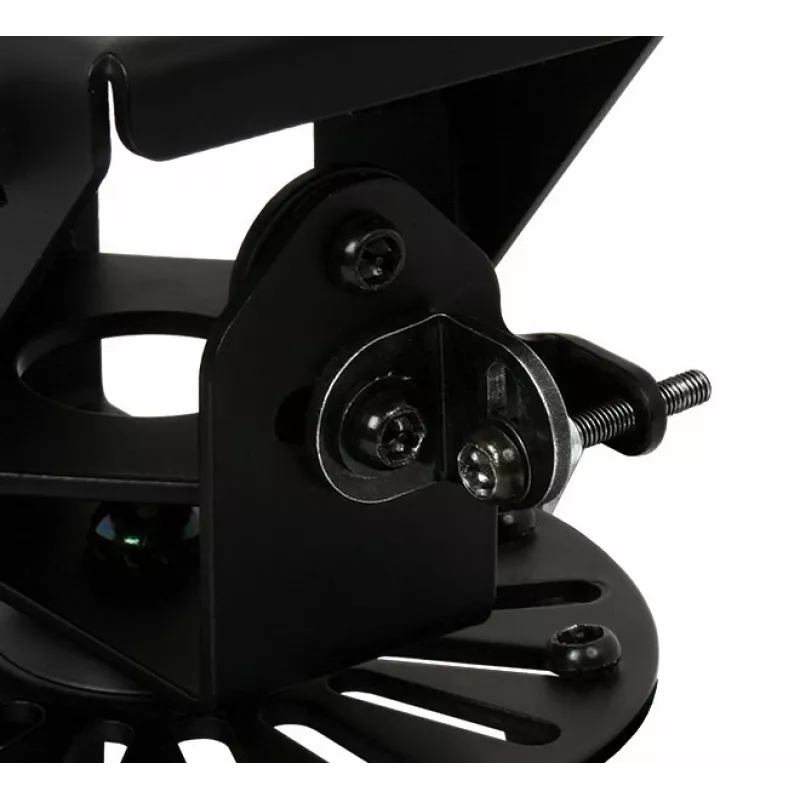

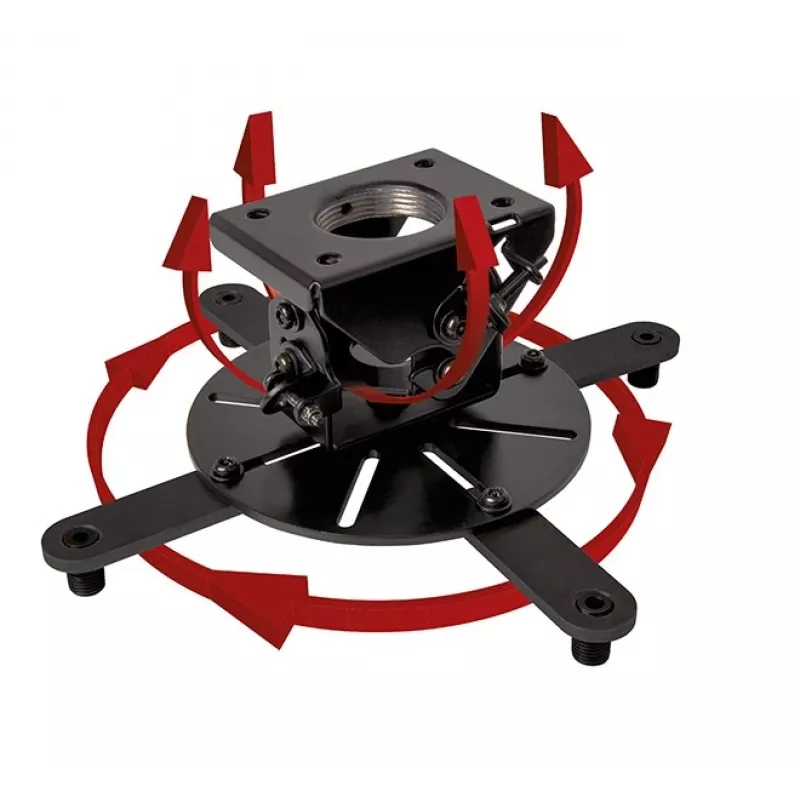

The mount supports a substantial 25 kg load while keeping the projector close to the ceiling for a discreet installation. Mechanical micro-adjustment and +/-13° tilt, +/-6° roll and 360° swivel allow fine positioning without repeated reinstallation. Its black finish minimises visual distraction and the unit can be fixed directly to a ceiling or used with a compatible ø50 mm system pole for extended drop options. The design emphasises stability and repeatable alignment for consistent image placement.

Suitable for

• Fixed ceiling installations in classrooms and lecture halls
• Conference rooms and boardrooms requiring discreet projector placement
• Home theaters where a low-profile mount is preferred
• Auditoriums and public spaces with ceiling-mounted projection

Key specifications

• Maximum supported projector weight: 25 kg (55 lbs)
• Mounting type: ceiling or compatible ø50 mm pole
• Distance from ceiling when mounted directly: 125 mm (5")
• Tilt adjustment range: +/-13°
• Roll adjustment range: +/-6°
• Swivel: 360°
• Micro-adjustment feature for fine alignment
• Colour: black

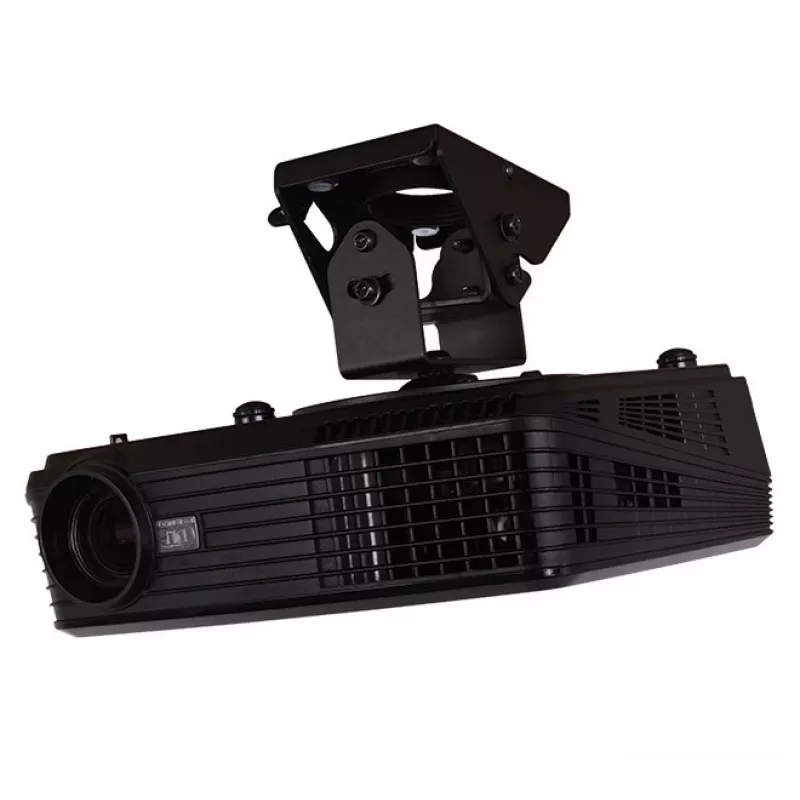

How to use

Select a structurally sound ceiling location capable of supporting the combined weight of the mount and projector. If mounting directly, fix the mount to the ceiling using appropriate fasteners for the substrate; if using a system pole, attach the mount to a compatible ø50 mm pole (sold separately) and secure per pole instructions. Attach the projector to the mount according to the projector manufacturer’s mounting interface, then use the micro-adjustment, tilt, roll and swivel features to align the projected image precisely. Confirm all fastenings are tight and check alignment before leaving the installation.

Recommendations

Verify the ceiling structure and use suitable fasteners and anchors rated for the load. Confirm projector weight does not exceed 25 kg and follow the projector manufacturer’s mounting instructions. For extended drops or additional cable management, use a compatible ø50 mm system pole and ensure any poles and accessories are properly secured. Periodically check mounting points and adjustment controls for tightness and integrity.
