PLANET 2-poorts 10/100/1000T 802.3at PoE+ PCI-E netwerkkaart (60W PoE)

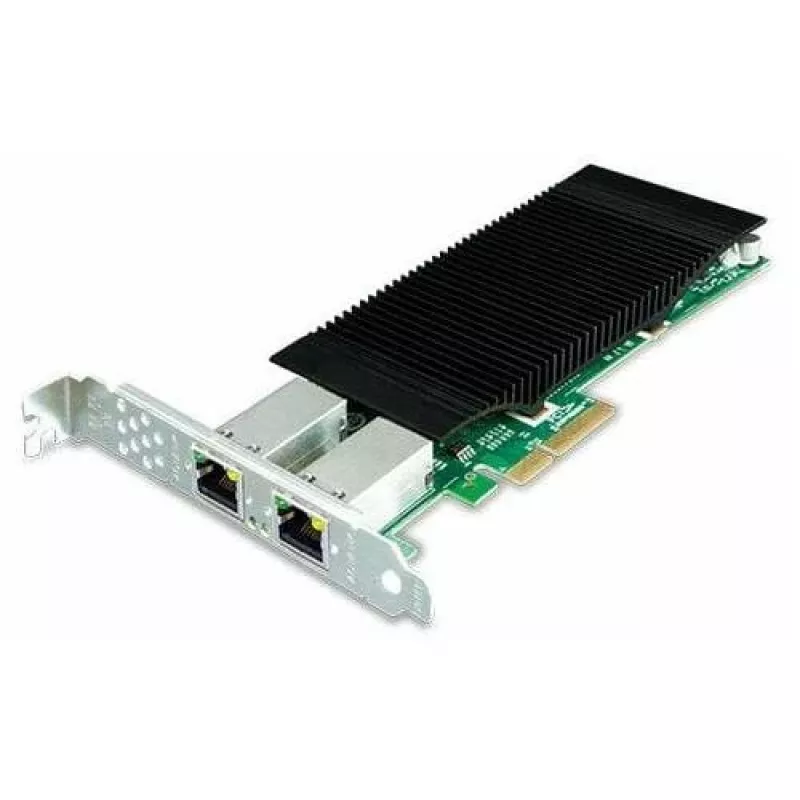

The PLANET 2-Port 10/100/1000T 802.3at PoE+ PCI-E Network Interface Card delivers high-performance Gigabit Ethernet connectivity with Power over Ethernet Plus (PoE+) capability. Designed for desktop and server systems, this PCI Express x1 card provides two RJ45 ports that support auto-negotiation speeds of 10/100/1000Mbps and comply with IEEE 802.3af/at PoE standards, delivering up to 30W per port with a total PoE power budget of 60W. Ideal for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices directly from the PCIe slot, eliminating the need for separate power adapters.

Advantages

This network interface card simplifies deployment by combining data and power over a single Ethernet cable, reducing cabling costs and installation complexity. With support for jumbo frames up to 9K bytes, Wake-on-LAN, and IEEE 802.3x flow control, it ensures reliable and efficient data transfer. The included standard and low-profile brackets allow flexible installation in various chassis sizes.

Suitable for

• Powering PoE devices such as IP cameras, wireless access points, and VoIP phones
• Expanding network connectivity in desktop PCs and servers
• Creating a small PoE network without external power injectors

Key specifications

• Interface: PCI Express x1
• Ethernet Ports: 2 x 10/100/1000BASE-T RJ45
• PoE Standard: IEEE 802.3af/at Power over Ethernet Plus
• PoE Power Output (per port): Up to 30W
• Total PoE Power Budget: 60W
• Data Rates: 10/100/1000Mbps (Auto-negotiation)
• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x
• Jumbo Frame Support: Up to 9K bytes
• Power Input: PCIe Bus Power + 12V DC (4-pin Molex connector)
• LED Indicators: Link/Act, PoE-in-use
• Operating Temperature: 0 to 50°C
• Operating Humidity: 5 to 95% (non-condensing)
• OS Support: Windows 7/8/10/11, Windows Server, Linux
• Flow Control: IEEE 802.3x Full-Duplex, Back-Pressure Half-Duplex
• PoE Power Pin Assignment: End-span (1/2(+), 3/6(-))
• Form Factor: Standard/Low-profile PCI-E Card (with brackets)
• Wake-on-LAN (WoL): Supported
• Certifications: FCC, CE

Recommendations

For optimal performance, ensure your system's power supply can provide sufficient power via the PCIe slot and the optional 12V DC Molex connector if required. Compatible with a wide range of operating systems, this card is an excellent choice for expanding PoE capabilities in a cost-effective manner.
