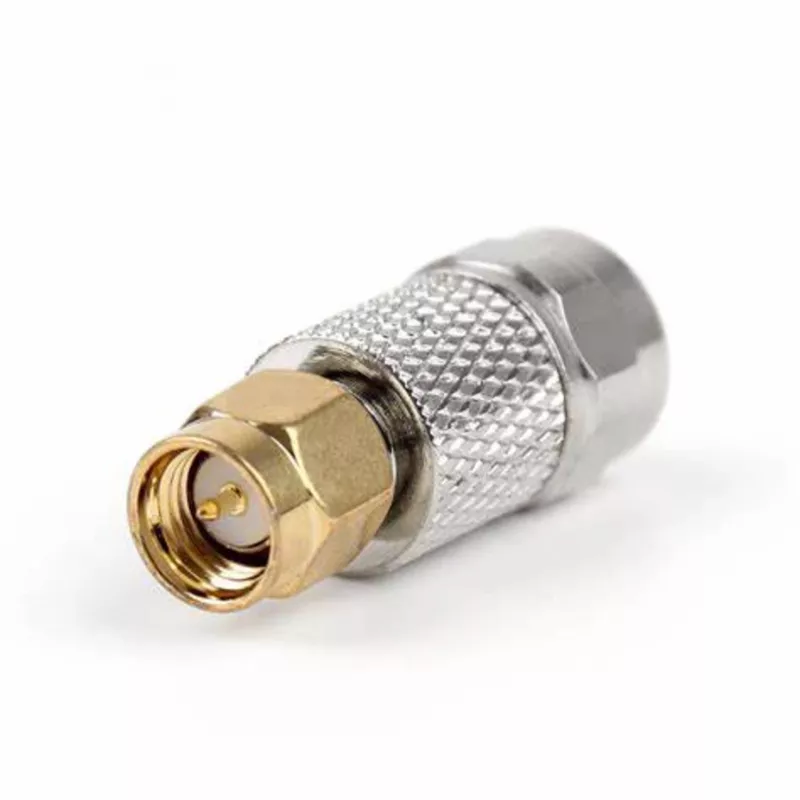

Poynting A-ADPT-046 SMA-stekker naar N-bus HF-coaxiale adapter

The Poynting A-ADPT-046 is a high-quality RF coaxial adapter designed to connect SMA male connectors to N-Type female connectors. Ideal for antenna and telecommunications applications, this adapter ensures reliable signal transmission with minimal loss.

Advantages

This adapter offers excellent electrical performance with a low VSWR of 1.2:1 and insertion loss of just 0.1 dB. Its robust construction features a brass body with nickel plating and gold-plated center contacts, ensuring durability and corrosion resistance. The PTFE insulator provides stable performance across a wide frequency range from DC to 6 GHz.

Suitable for

• Connecting SMA male antennas to N-Type female cables or devices
• Telecommunications and wireless infrastructure
• Test and measurement setups
• RF and microwave systems

Key specifications

• Adapter Type: RF Coaxial Adapter
• Connector A: SMA Male
• Connector B: N-Type Female
• Impedance: 50 Ohm
• Frequency Range: DC to 6 GHz
• VSWR: ≤1.2:1
• Insertion Loss: ≤0.1 dB
• Body Material: Brass, Nickel Plated
• Center Contact Material: Brass, Gold Plated
• Insulator Material: PTFE
• Operating Temperature: -40°C to +85°C
• Durability: 500 mating cycles
• RoHS Compliant

Recommendations

For optimal performance, use with 50 Ohm systems and ensure connectors are properly tightened. This adapter is a reliable solution for extending or converting connections in antenna and RF applications.
