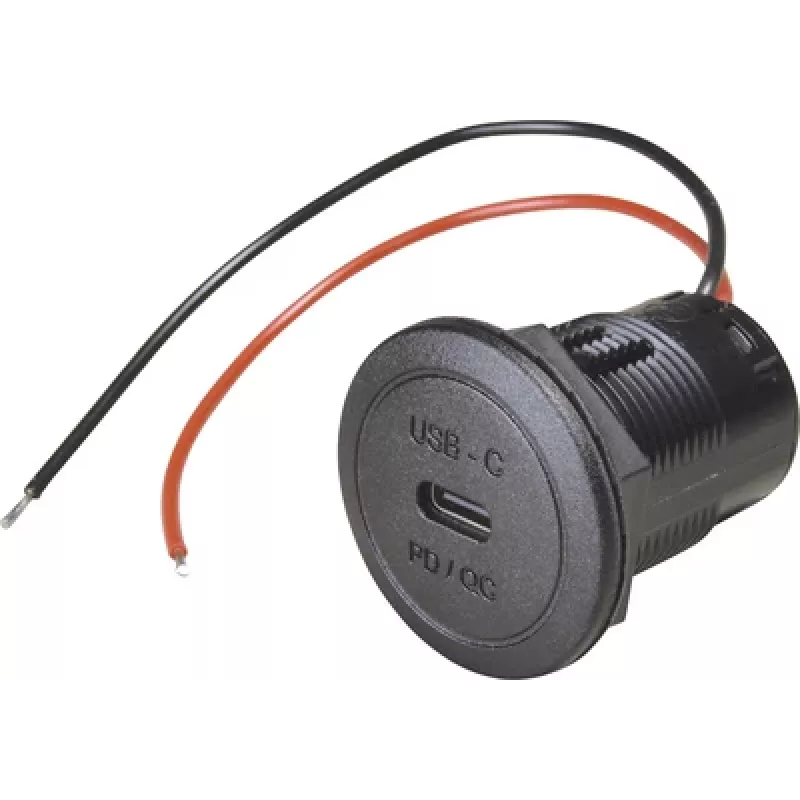

ProCar Power USB-C inbouwstopcontact PD/QC 50W 12/24V DC, zonder LED 67351990

For drivers and fleet operators who need reliable, high-speed charging on the road, the ProCar Power USB-C flush-mount socket delivers up to 50 W of power directly from a 12 V or 24 V vehicle electrical system. It supports USB Power Delivery (PD) and Quick Charge (QC) protocols, making it suitable for charging smartphones, tablets, and even some laptops while driving. The socket installs into a standard 28 mm mounting hole with a 30 mm depth, making it ideal for dashboards, consoles, or panels in cars, trucks, motorhomes, and boats.

Key specifications

• Output: USB-C (Power Delivery & Quick Charge)
• Max power: 50 W
• Input voltage: 12 V / 24 V DC
• Output profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.5A
• Mounting hole diameter: 28 mm
• Outer diameter: 37 mm
• Installation depth: 30 mm
• Connection: 6.3 mm flat plug (spade terminals)
• Housing: high-grade plastic
• Indicator: no LED
• Protection: overload, overvoltage, short circuit, overheating

Why choose it

The combination of PD and QC support means it can fast-charge a wide range of USB-C devices. Its compact design fits neatly into standard cutouts, and the robust protection features help safeguard both the socket and connected devices from electrical faults.

Ideal use cases

• In-dash charging for cars and trucks
• Marine and RV power outlets
• Commercial vehicle fleets
• Custom panel installations

Good to know

The socket is designed for flush mounting and requires a 28 mm hole. It has no LED indicator, so it stays discreet. Connection is via 6.3 mm flat plugs, common in automotive wiring.
