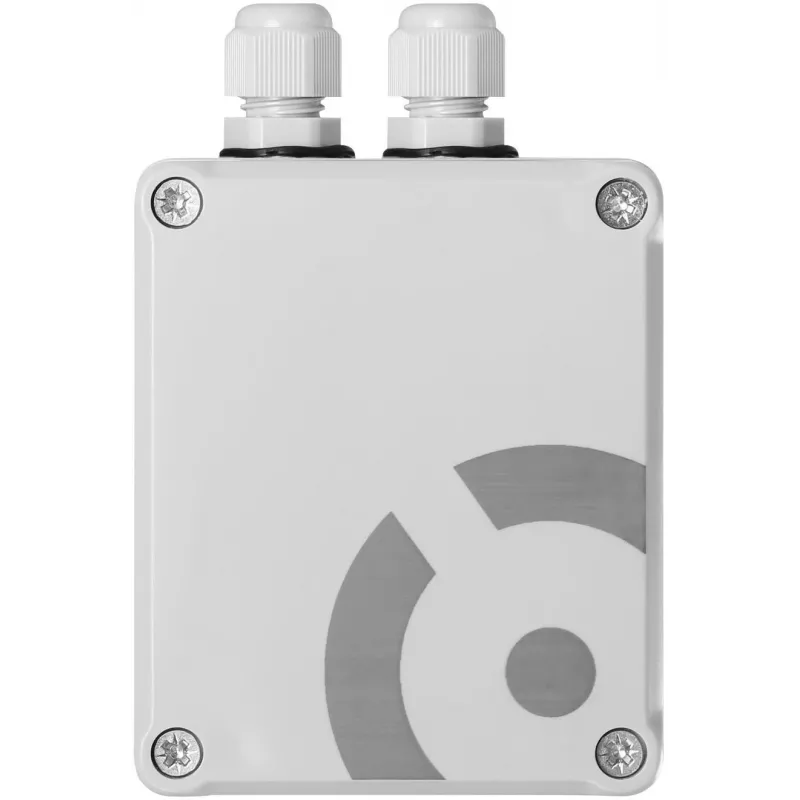

Proxima controller/radio-kalender 433,92 MHz 2-kanaals relaisontvanger

The Proxima Controller/Radio Calendar is a versatile 2-channel relay receiver operating at 433.92 MHz, designed for wireless control of various devices. It combines a radio receiver with a programmable calendar timer, allowing for automated scheduling of daily, weekly, or yearly events. Ideal for home automation, lighting control, and industrial applications, this device supports up to 999 remote controls and offers monostable, bistable, and timed operating modes.

Advantages

Easy programming via buttons, LCD display, and USB port for PC software. IP44 enclosure protection makes it suitable for indoor and outdoor use. Configurable relay outputs (NO/NC) provide flexibility for different loads.

Suitable for

• Home automation systems
• Lighting control
• Gate and garage door control
• Industrial automation

Key specifications

• Operating Frequency: 433.92 MHz
• Number of Channels: 2 independent relay outputs
• Power Supply: 12-24V AC/DC
• Max Relay Load: 1A / 30V DC, 0.5A / 125V AC
• Memory Capacity: Up to 999 remote controls
• Operating Modes: Monostable, Bistable, Timed (1-999 seconds)
• Calendar/Timer Functions: Daily, Weekly, Yearly programming
• Programming Interface: Buttons, LCD display, USB port
• Enclosure Protection: IP44
• Antenna: Internal with external connector
• Display Type: LCD
• Compatibility: Proxima 433.92 MHz remotes, fixed code 433.92 MHz remotes
• Output Type: Relay (NO/NC configurable)
• Operating Temperature: -20°C to +55°C
• Mounting: Wall mountable

Recommendations

For best performance, use with Proxima 433.92 MHz remote controls. Ensure power supply voltage matches specifications. Suitable for both indoor and outdoor installations with IP44 protection.
